Product details

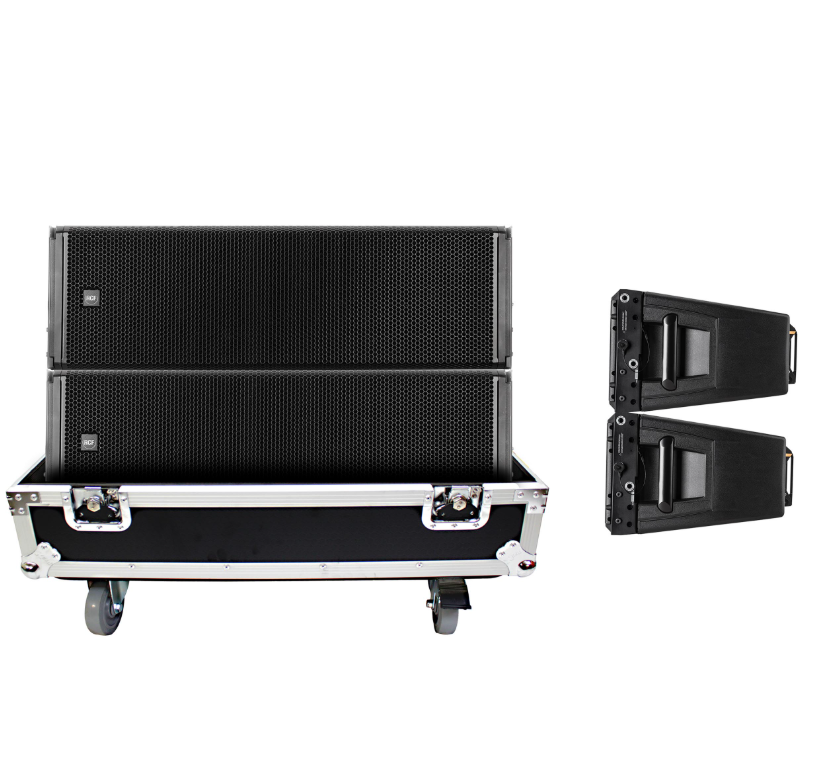

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3" voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic.

The HDL 20-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 10-inch woofers, 1 x 3-inch titanium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 20-A delivers: 135dB max SPL; 1400 Watt peak power (700 Watts RMS); 55Hz – 20kHz frequency response. The HDL 20-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum. The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

RCF HDL 20-A Active Line Array Module Speaker Features:

1400 Watt Peak power - 700 Watt RMS.
135 dB max SPL.
55 Hz 20 kHz frequency response.
2 x 10" Woofers.
1 x 3" Compression Driver.
DSP controlled Input section with selectable presets.
Tour grade safe and solid variable mechanics.
Composite PP enclosure structurally wooden reinforced.

HDL 20-A II Applications:

Live sound.
Rental.
Portable PA, clubs, ballrooms, live theatre.
House of worship.
Theme parks.
Music playback and sound reinforcement in small and mid-size venues.
Corporate A/V professionals and sound system hire companies.
