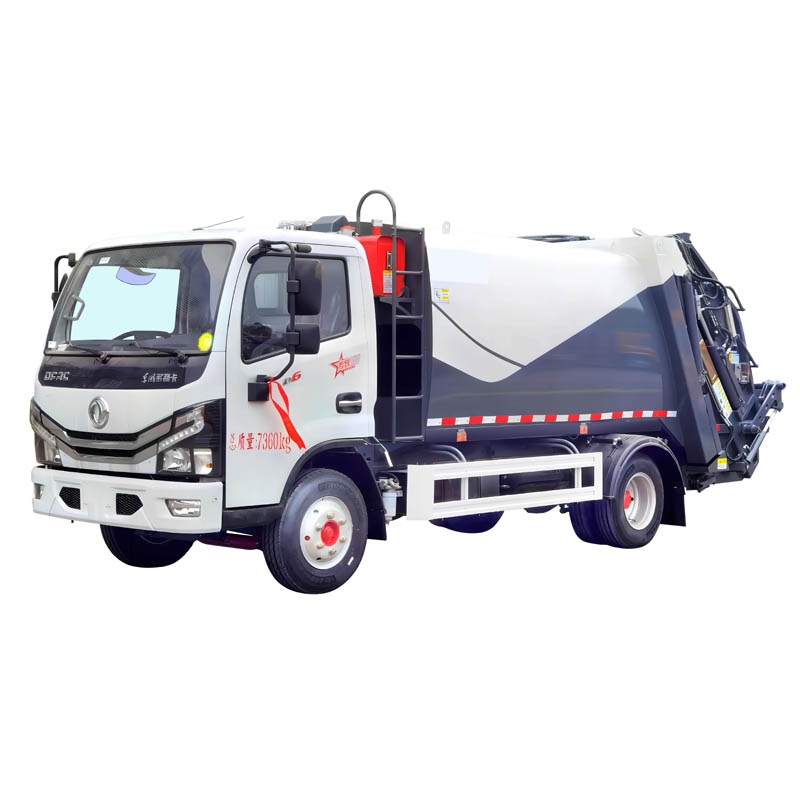

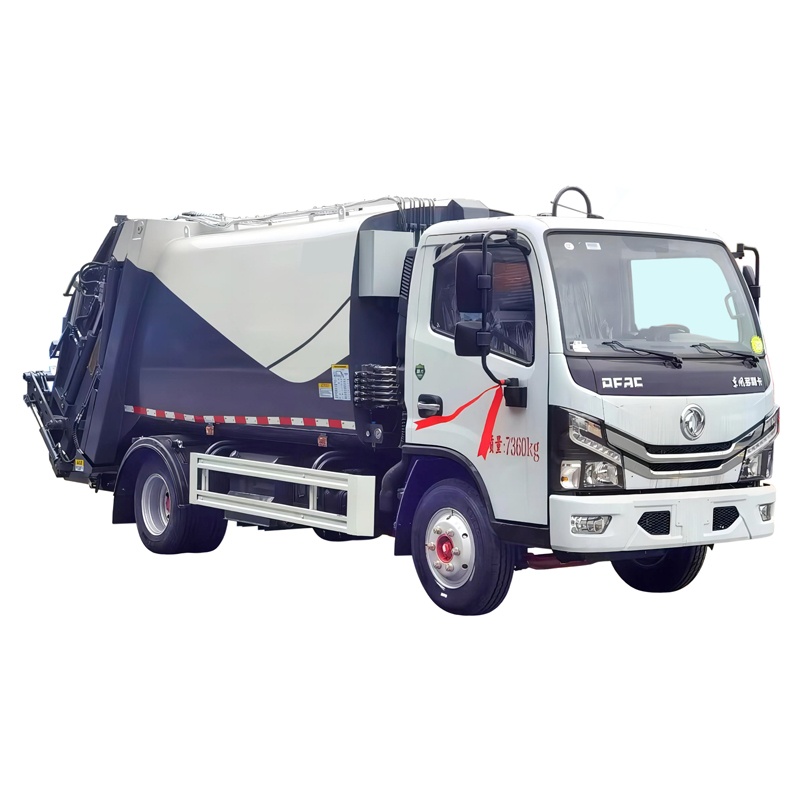

compressed garbage truck

compressed garbage truck

4 month ago

2 0

Hubei Ocean Automobile Industry Co., Ltd.

 5 month year

Product details

Features 1.The truck is equipped with domestic advanced Class Two chassis, imported hydraulic and electrical components, which are stable and reliable performance. The drum shape structure is simple and elegant, and made of high-strength manganese, which is strong and durable.

2.Big carriage volume, two-way compression technology, horizontally compression cylinder, high compressed capacity and strong loading capacity.

3.Using composite seal and good anti-acid EPDM seal, they are both good sealing performance. There are sewage tanks to collect water in front and rear compartments, to prevent secondary pollution.

4.It's easy and flexible to joint operate with manual and PLC control. All operating actions can be completed in the cab, which enhance reliability and improved safety and comfort.

5.Engine power output is automatic, lower fuel consumption and more economy.

6.Stuffing box has a safety valve lift mechanism and explosion-proof valve, which can improve the safety and also double insurance.

7.The feeding mechanism can choose bucket mechanism (with 330L steel or 240L plastic barrel), the arm mechanism (with 5 m³ ship-shape bucket)

Chassis parameters Host configuration:Q23-136E60 engine, 136 HP diesel (optional 152 HP diesel or 140 HP diesel engine), Wanliyang 6-speed gearbox, air conditioning electric window central lock, multifunctional steering wheel, daytime running lights, ABS, dead brake.

New curved box, high-quality manganese steel production box, two-way compression structure, tail sewage tank, domestic well-known full set of hydraulic system, with compaction valve, Hefei Wan liquid hydraulic pump, CAN bus control system, wireless remote control operation, add pneumatic seal cover The tail is equipped with a hanging barrel turnover mechanism (1. Optional swing arm + rear leg). 2. Small triangle bucket. 3. Big bucket.)

Vehicle size: L6300, 6825mmxW2090mmxH2650mmBody volume: 7m3
