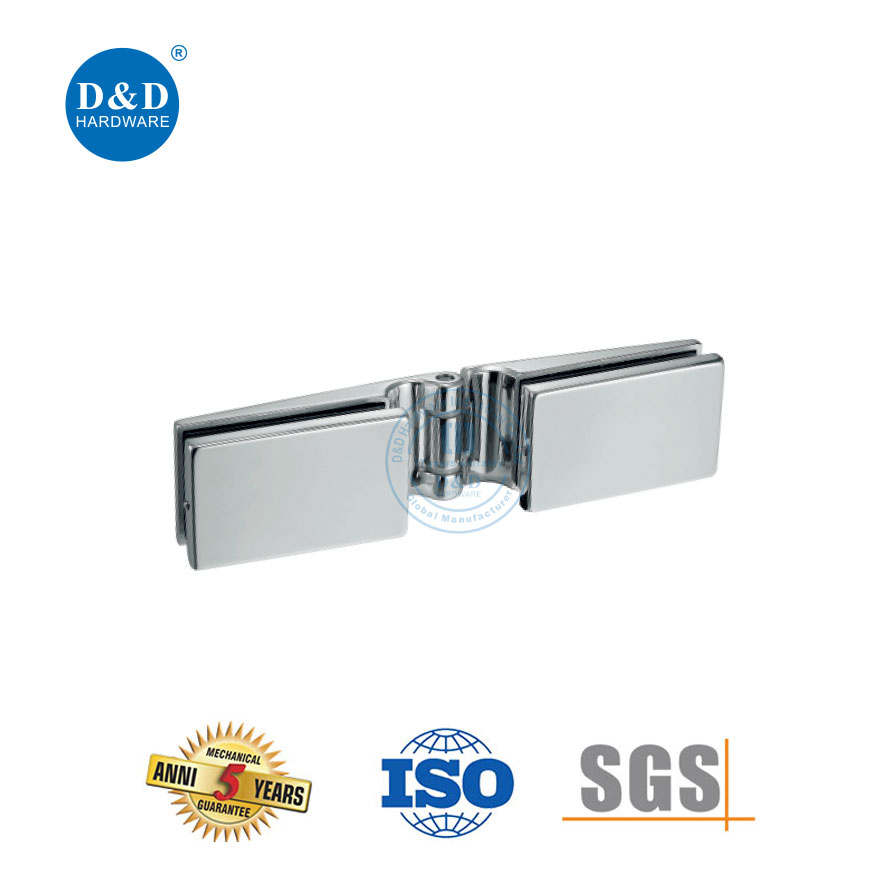

Stainless steel glass hinges are specifically designed to connect and support glass doors in contemporary architectural and interior applications. Stainless steel offers an ideal balance of strength and rigidity, ensuring that the hinge can hold glass panels typically 8 mm to 12 mm thick—sometimes thicker for custom or architectural projects—without bending, loosening, or compromising alignment over time. Stainless steel is highly versatile in terms of surface treatment, allowing for finishes such as polished mirror, satin brushed, matte black, titanium gold, and other decorative coatings.
Warranty Coverage: 10-Year Mechanical Warranty (covers hinge structure, closing mechanism, and material integrity)
Product Images and Videos
Product Features & Advantages
Wide 6-12mm Glass Thickness Adaptation: Unlike most hinges (limited to 8-10mm), the DDGH024 fits both thin (6mm) accent glass and standard (12mm) load-bearing shower glass—reducing SKU needs for contractors and suppliers.
Brass-Stainless Steel Dual-Material Structure: The brass core ensures 50kg load stability (avoiding "glass sag" in long-term use), while the SUS304/SUS316 outer layer repels bathroom humidity and disinfectant corrosion—outlasting single-material steel hinges by 4x in 6-year durability tests.
Precision 90° Angle Locking: A built-in spring clip locks the hinge at an exact 90° during installation, eliminating manual level calibration and cutting on-site setup time by 35%.
Low-Friction 25° Silent Closing: The polished stainless steel shaft operates at ≤20dB (quieter than a library whisper), avoiding the loud "snap" of generic hinges—ideal for residential master bathrooms or quiet hospital patient suites.
Non-Porous Mirror Plated Finish: The smooth, pore-free surface repels soap scum and mildew, requiring only a dry microfiber cloth to clean—meeting the strict sanitation standards of gym locker room showers.
Seamless System Integration: Pair with D&D’s Glass Clip and Shower Pull Handle to create a unified frameless shower enclosure, reducing sourcing complexity for architectural projects.
SGS-Validated Performance: Every unit passes 240-hour salt-spray testing (simulating coastal bathroom humidity) and 15,000-cycle opening tests—exceeding D&D’s glass door hardware global quality benchmarks.
Step-by-Step Installation Guide
Prep Tools & Materials: Gather DDGH024 hinge, diamond-tipped glass drill bits (matching your glass thickness: 6/8/10/12mm), magnetic level, measuring tape, masking tape, and a torque screwdriver (2-6N·m range).
Mark Glass Mounting Positions:
On two adjacent glass panels (6-12mm thick), measure 15cm from the top/bottom edges, then use the level to mark aligned points (apply masking tape to prevent scratch marks).
Align the hinge’s 32mm/40.5mm mounting holes with the marked points to confirm spacing.
Drill Precision Glass Holes:
Set the drill to 1200RPM, apply constant water cooling, and drill holes to a depth equal to the glass thickness + 2mm (avoid side pressure to prevent cracking).
Install Hinge Components:
Secure one hinge half to each glass panel with glass-compatible screws (tighten to 4N·m torque; do not over-tighten).
Lock 90° Angle & Test:
Align the two hinge halves— the built-in spring clip will click into place, locking the panels at a precise 90°.
Open the door fully, release to verify silent closing to ~25°; adjust the closing torque (via 2mm hex key) if needed.
Seal & Validate: Apply D&D’s Glass Door Seal Strip along the glass joint, then run a 15-minute water test to confirm zero leakage.
Application Scenarios
The DDGH024 excels in environments requiring wide glass compatibility and quiet performance, integrating with D&D’s shower hardware ecosystem:
For boutique hotels, the wide glass adaptation supports custom thin-accent glass designs, pairing with Shower Door Knobs to elevate aesthetic appeal. In hospitals, the quiet closing and easy-clean finish meet healthcare sanitation rules, while the 50kg load capacity accommodates durable 12mm glass. For residential projects, it integrates with Shower Cubicle Systems to create a sleek, modern bathroom focal point—backed by a 10-year warranty for long-term peace of mind.
Customization Options
Material Upgrade: SUS316 stainless steel (for extreme coastal humidity or chemical-exposed environments like laboratory bathrooms).
Surface Finish Customization: Brushed stainless steel, matte black PVD, or bronze-toned PVD (to match Restroom Accessories or project branding).
Load Capacity Adjustment: 60kg weight rating (reinforced brass core) for oversized double-glazed shower panels (on request).
OEM Branding & Packaging: Laser-engraved client logos on the hinge body, plus custom branded white/color boxes (for hotel chains or architectural suppliers).
Production Process & Quality Control
Material Sourcing & Verification: Brass ingots and SUS304/SUS316 sheets are tested via optical emission spectrometry (OES) to ensure material purity meets glass door hardware standards.

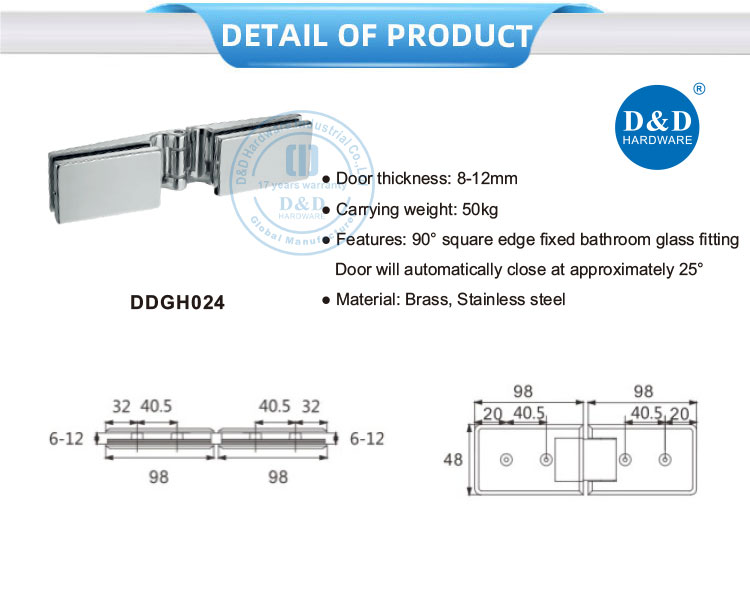

Precision 5-Axis CNC Machining: Hinge components are shaped to 0.02mm dimensional tolerance (98x48mm) to ensure perfect alignment for 6-12mm glass.
Surface Treatment & Plating: Hinges undergo electroplating (mirror finish) followed by a 72-hour baking process to enhance finish adhesion and corrosion resistance.
100% Functional Testing: Every unit undergoes 50kg load testing (24 hours), 15,000-cycle opening tests, and 240-hour salt-spray corrosion testing—failed units are discarded immediately.
Final Inspection & Packaging: Units are checked for finish defects, 90° angle accuracy, and closing mechanism performance—only passing products are packaged (custom packaging available via OEM).
