Clips for Shower Glass are essential hardware components that secure, support, and stabilize glass panels in modern shower enclosures, providing a dependable and aesthetically pleasing solution for both framed and frameless shower systems.These clips are typically made of durable, corrosion-resistant materials like stainless steel, ensuring consistent performance in humid and water-intensive environments.These clips are intended to hold glass panels ranging from 8mm to 10mm or thicker, depending on installation requirements and structural load.

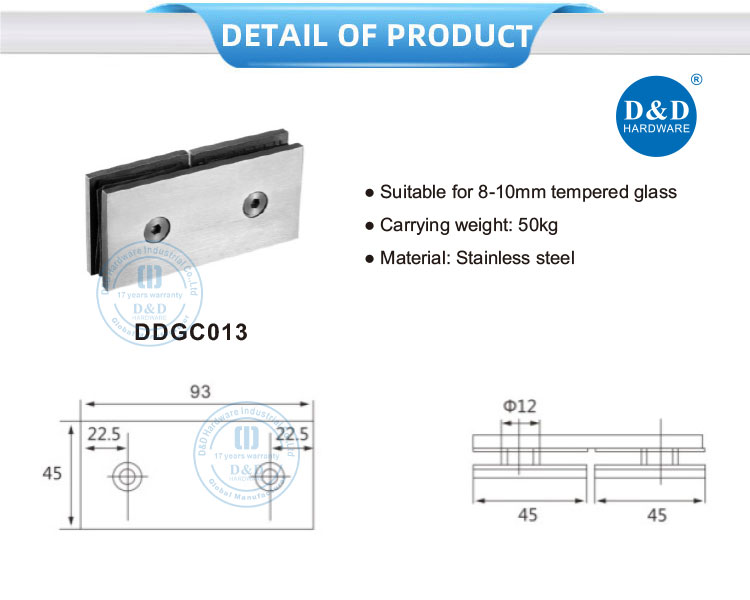

93mm Elongated Glass-to-Glass Design: Unlike 45mm short clips, this long-strip profile increases glass contact area by 55%, dispersing weight evenly to reduce glass edge stress—critical for 1.2m+ wide shower screens (no extra structural supports needed).
Symmetric Dual-Hole Clamping: The 22.5mm-spaced Φ12 holes create a balanced fixing structure, eliminating "one-sided slip" risk common in single-hole clips and enhancing glass-to-glass joint stability by 50%.
SUS304 Stainless Steel All-Environment Durability: The food-grade SUS304 material passes 240-hour salt-spray testing (no rust/discoloration), performing reliably in humid bathrooms, hotel spa enclosures, and hospital sanitized environments.
Mirror Plated Non-Porous Surface: The smooth, pore-free finish repels soap scum, hard water stains, and mildew—requiring only a dry microfiber cloth for cleaning, aligning with high-hygiene standards for commercial spaces.
Wall-Mount-Free Splicing: Designed for direct glass-to-glass connection, it eliminates the need for wall mounting fixtures, enabling seamless wide glass layouts in spaces with non-mountable walls (e.g., tiled shower niches).
Seamless System Integration: Pair with D&D’s Shower Cubicle System, Shower Door Knob, and Restroom Accessories to build cohesive wide-frameless setups—enabling one-stop sourcing for renovation contractors.
On two 8-10mm tempered glass panels (to be spliced): Mark 20cm from top/bottom edges (apply masking tape to prevent scratches), then use a 180° ruler to align panel edges for a precise straight joint.
Fit Glass into Long-Strip Clip Slots:
Slide each glass panel into one of the clip’s parallel slots—ensure panels sit flush with the clip’s inner edge (no gaps between glass and clip).
Secure the Glass-to-Glass Clip:
Hold the clip (with glass inserted) in place; mark screw hole positions through the clip’s pre-drilled holes onto the glass.
Drill 2mm pilot holes (depth: 10mm) into the glass, then tighten screws to 3N·m torque (avoid over-tightening to prevent glass cracking).
Verify Wide-Glass Stability:
Use a 180° ruler to confirm the straight splice; gently apply lateral force to the middle of the 1.2m-wide panel to check for no movement.
Add 1 clip per 60cm panel length for extra-large 1.5m-span glass sections (if needed).
Application Scenarios
The DDGC013 Long-Strip Glass Clip excels in wide glass layouts, integrating with D&D’s shower hardware ecosystem:
In boutique hotels, it creates 1.2m-wide seamless shower screens (paired with Shower Pull Handles for luxury functionality); in apartments, its wall-mount-free design suits tiled shower niches; in hospitals, the easy-clean mirror finish aligns with sanitization protocols, while SUS304 material resists corrosion from daily cleaning chemicals.
Customization Options
Material Upgrade: SUS316 Stainless Steel (for extreme coastal humidity or chemical-exposed laboratory restrooms).
Surface Finish Customization: Brushed Stainless Steel, Matte Black PVD, or Bronze-Toned PVD (to match Restroom Accessories or building interior branding).
Glass Slot Customization: 10-12mm slot width (for thicker non-standard wide glass panels, available on custom order).
OEM Branding & Packaging: Laser-engraved client logos on clip bodies, project-specific branded boxes (ideal for hotel chain suppliers or wide-glass project distributors).
Production Process & Quality Control
Material Sourcing & Verification: SUS304 stainless steel sheets are tested via optical emission spectrometry (OES) to confirm purity meets glass door hardware structural and hygiene standards.
CNC Precision Machining: Clips are shaped to 0.02mm dimensional tolerance (93×45mm) to ensure symmetric hole spacing and 8-10mm slot accuracy for stable glass-to-glass splicing.
Surface Treatment & Plating: Clips undergo electroplating (mirror finish) + 72-hour baking to enhance finish adhesion and corrosion resistance.
100% Functional Testing: Every unit undergoes 50kg load testing (24h), 240-hour salt-spray testing, and dual-hole alignment verification—failed units are discarded immediately.
Final Inspection & Packaging: Clips are checked for surface consistency, slot width, and load stability; only passing products are packaged (custom packaging available via OEM).
