Product details

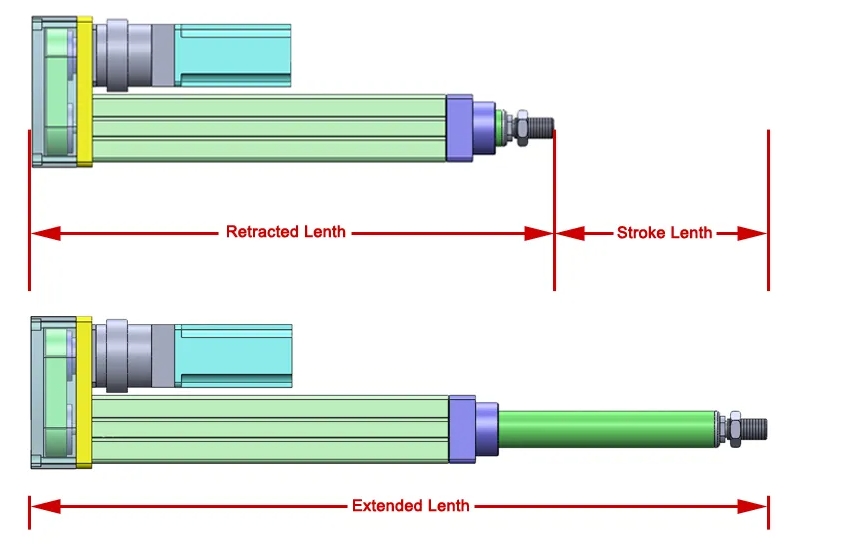

Product Structure

Product Parameters

Model	DGRST-85
Ball screw	screw lead(mm)	5	10		25
	Diameter(mm)	25	25		25
	Rated dynamic load(kgf)	1724	2954		1232
Max.motor power	Servo motor(W)	2000
	Rated torque(Nm)	9.55
	Rated speed(rpm)	2000
Speed reduction	/	1	1	1.5	1	1.5	3
Max.rated speed	mm/s	166	333	222	833	555	277
Max,rated thrust	N	10200	5100	7600	2040	3060	6120
Max.rated torque	N.m	9.55	9.55	14.32	9.55	14.3	28.65
Stroke range	mm	10-1200mm
		10-1200mm
Axial backlash	mm	Ground ball screw 0.025
		Rolled ball screw 0.08(default)
300mm lead tolerance	mm	Ground ball screw 0.023
		Rolled ball screw 0.05(default)
Repeatable position accuracy	mm	Ground ball screw ±0.01
		Rolled ball screw ±0.02(default rolled)
Limit switch	/	NPN, PNP
Servo cylinder type	/	Inline/Parallel

Kind Note:
1.If you need drawings and lifespan of ball screw, please consult customer service for details.
2.If the maximum stroke exceeds 1000mm,it is recommended to add a guide device.
3.The parameters may be affected by different brands of motors,please consult customer service for details.

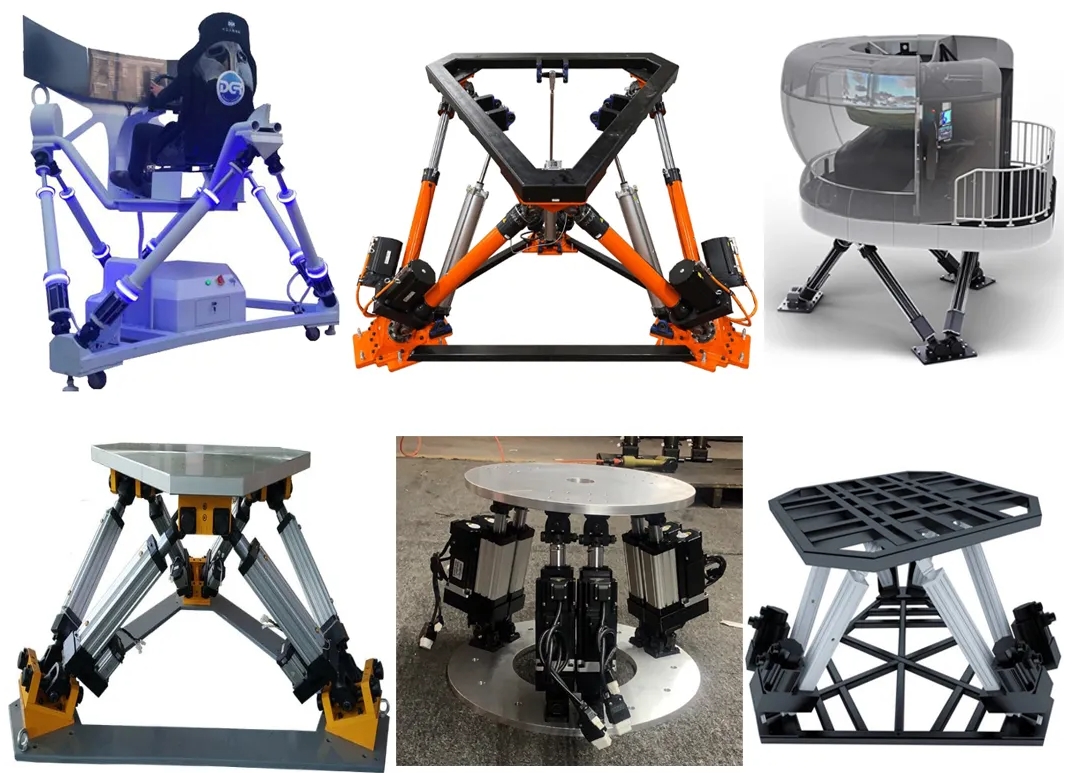

Popular 6-Dof Simulation Platforms
6-axis motion platforms offer a number of advantages, including:

High precision: 6-axis motion platforms can move an object in very small increments. This is important for accurate testing and simulation. For example, when testing a car's suspension system, the platform can be used to simulate small bumps and vibrations that the car would encounter on real roads.

Versatility: 6-axis motion platforms can move an object in 6 different axes. This makes them suitable for a wide range of applications. For example, to simulate the launch of a spacecraft, the platform can be used to push the spacecraft upward and then place it into orbit.

Durability: 6-axis motion platforms are designed to withstand harsh environments. For example, in the testing of a cross-country vehicle, the platform can withstand the shocks and impacts that the vehicle would encounter in bad conditions.

Enhanced safety: 6-axis motion platforms can be used to train operators in dangerous or hazardous environments without putting them at risk. For example, a 6-axis motion platform can be used to train a forklift operator how to operate a forklift safely in a warehouse environment.

Improved efficiency: 6-axis motion platforms can be used to test and optimize manufacturing processes and assembly lines. This can lead to improved efficiency and reduced costs.

Enhanced product quality: 6-axis motion platforms can be used to test products under real-world conditions. This can help to identify and eliminate potential defects, resulting in higher quality products.

Reduced downtime: 6-axis motion platforms can be used to predict and prevent equipment failures. This can help to reduce downtime and improve productivity.

Increased innovation: 6-axis motion platforms can be used to prototype and test new products and technologies in a safe and controlled environment. This can help to accelerate the innovation process.
