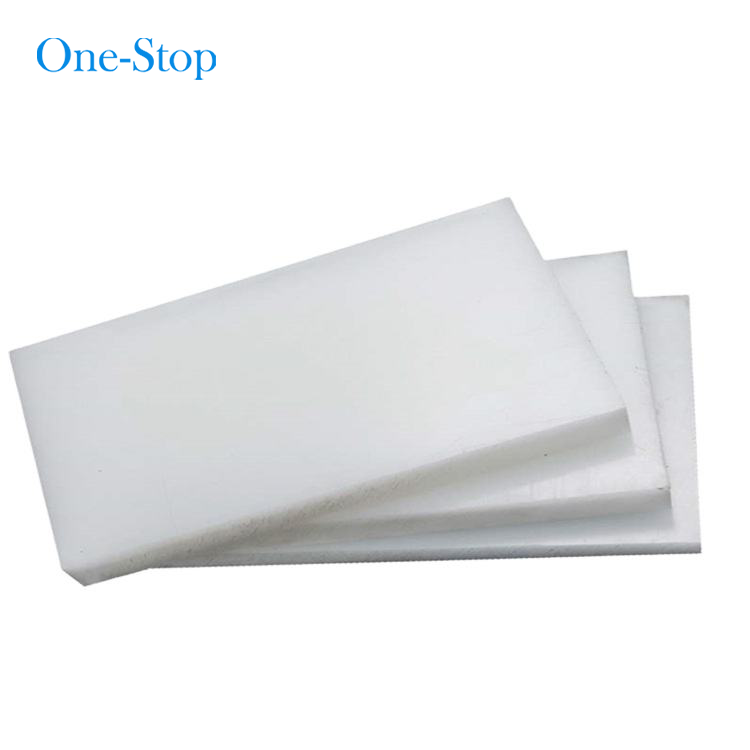

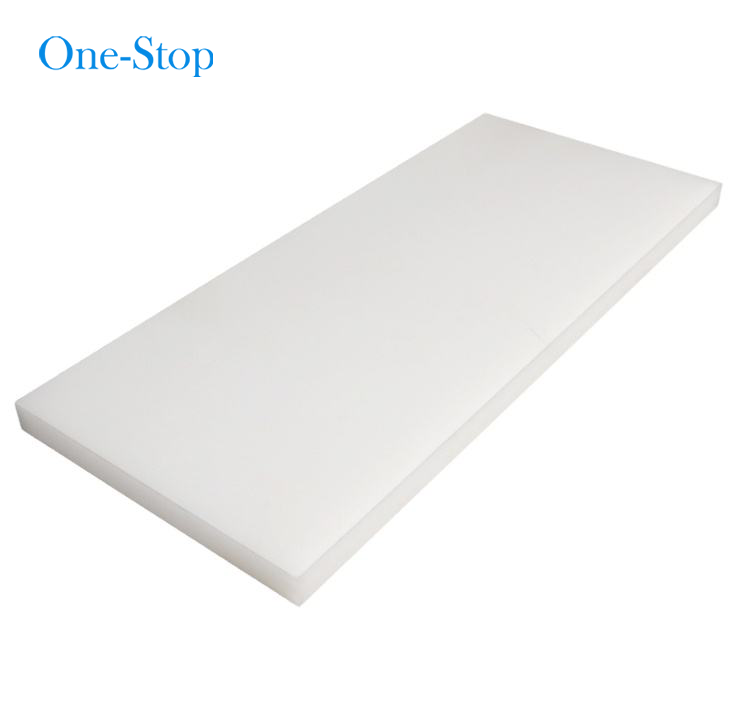

Online hot sale PVDF sheet board plate
PVDF is a kind of engineering plastic,with half transparent or white powder or frain appearance.The Molecular
chain is very close,own doughty hydrogen bond,it contain 46% oxygen,flammability resistance,with 65%-78%
rime degree,density is1.17-1.79g/cm3, melting point is 172°C,heat distortion temperature is 112-145°C,
long-term work temperature is 140-150°C.PVDF has the property of flurin resin and other general resin,except
good chemical resistance,heat resistance,oxidation resistance,climate resistance,radial resistance,it also has
piezoelectricity property,dielectric property and so on.
PVDF sheet board plate performance index:
|
Item |
Test Standard |
Unit |
Value |
|
Density |
ISO1183 |
g/cm3 |
1.77 |
|
Water absorption |
DIN53495 |
% |
0.04 |
|
Yield strength |
ISO527 |
MPa |
50 |
|
Tensile strength |
ISO527 |
MPa |
46 |
|
Bending strength |
ISO178 |
MPa |
80 |
|
Elasticity modulus |
ISO527 |
MPa |
2000 |
|
Impact strength(no notch) |
ISO179 |
Kj/m2 |
252 |
|
Impact strength (notch) |
ISO179 |
Kj/m2 |
22 |
|
Friction coefficient |
DIN53375 |
|
0.34 |
|
Shore hardness |
DIN53505 |
D |
78 |
|
Flame retardant rating |
UL94 |
|
V-0 |
|
Continuous service temperature |
|
°C |
-30-150°C |
Color: natural,white,black
Density: 1.17-1.81 g/cm3
Properties:
good toughness and rigidity,
excellent wear resistance
corrosion resisting
weather resisting
Applications of PVDF sheet borad plate:
impeller/sleeve/bushing/washer/gasket/collar/pulley/pipe coupling/machine parts
Standard sizes:
0.5mx0.5m 1mx1m 1.2mx1.2m 2mx2m 0.5mx1m 1mx1.2m 1mx2m
Thickness: 1mm-100mm
Packing: Standard exporting packing by pallet
Why choose us?
Six advantagesWe have the professional engineer teams and sales teams, most of them have more than 10 years
experience in mold-making industry and injection industry, especially for medical, electronics and automotive
products.
2. Advanced equipments
We have the high quality CNC and EDM machines from HAAS, MOKRON, OKUMA, AGIE, MAKINO, such
as, 4-axis and 5-axis CNC machines, can offer stable and accurate processing ability.
3. Fast delivery time
Our mold workshop have two turns everyday, our workers and engineer work for 8 hours, we can make a
prototype mold within 20 days, and 30-35 days to make a complex mold.
4. One-stop service
We offer products design and 3D print service, we have more than 100 sets injection machines and 10
assembly lines, we can provide production run and assembly service.
5. High quality and factory price
We have ISO9001 international quality management system, as well as Chinese production cost control
experience. So we can help you save about 20%-30% manufacturing cost when you compare with others.
6. Good after-sales service
We offer good service within 3 years after customer receive the mold. Most of our customers work with us
more than 15 years and still trust, satisfy and do with us.
For sheet/board/plate/rod/tube, the products will be sent for 3 day. And we support OEM and ODM.
Regarding PVDF products, we support wholesale PVDF, PVDF pipes, PVDF rods, PVDF sheets, PVDF processed parts, PVDF special-shaped parts, PVDF injection molded parts, etc. For other material customization, please contact customer service for the latest quotation
