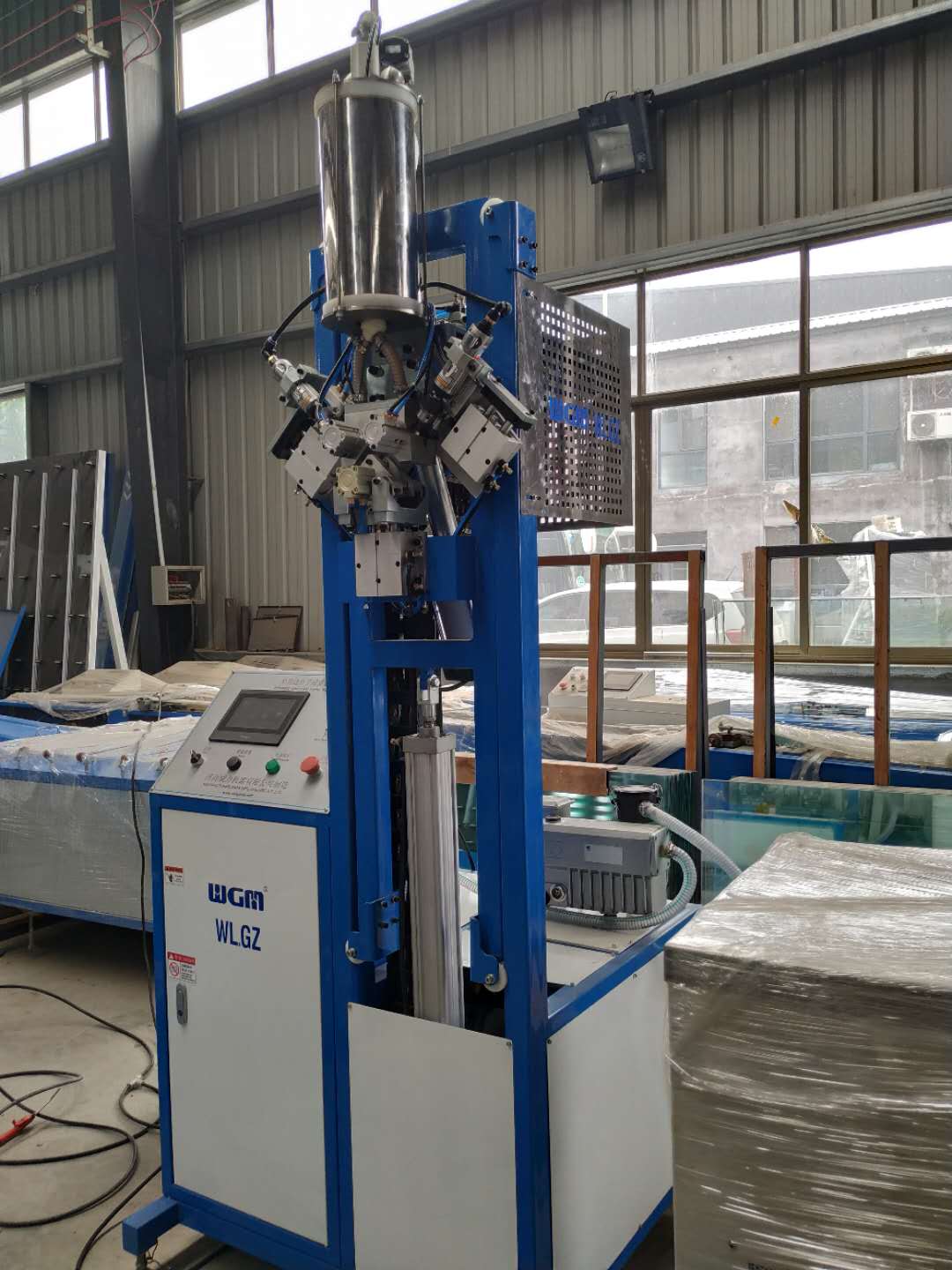

BFGJ03 Desiccant Filling Machine
The Double Glazing Processing Machine Desiccant Filler adopts PLC control system and human-machine interface display, and the operation is intuitive and convenient. The filling height can be adjusted arbitrarily according to the size of the aluminum bar, and the application range is wide. The Double Glazed Processing Desiccant Filling Machine has an automatic drilling function, and feeding function to make sure filling from being in place, and it has an automatic sealing function. The core control parts of the IGU Insulating Glass Desiccant Filler adopt imported components, and the performance is stable and reliable.
Parameters:
Molecular sieve diameter: 0.5-0.8mm
Aluminum frame width: 5.5-24mm
Maximum size: 2400 * 2400mm
Air pressure: 0.6MPA
Power: 1P + N 220V 50HZ 1KW
Equipment size: 1100mm (length) * 1080mm (width) * 3050mm
Main Electrical Components
|
No. |
Product Name |
Brand |
Origin |
|
1 |
PLC |
OMRON |
JAPAN |
|
2 |
Approach switch |
AUTONICS |
KOREA |
|
3 |
Magnetic switch |
AIRTAC |
TAIWAN |
|
4 |
Foot switch |
CNTD |
CHINA |
|
5 |
Temperature controller watch |
OMRON |
JAPAN |
|
6 |
Touch screen |
EIEW |
CHINA |
|
7 |
Low-voltage electric component, like relay, breaker |
SCHNEIDER |
FRANCE |
|
8 |
Pneumatic components, like solenoid valve, air cylinder |
AIRTAC |
Taiwan |
Photos
