Product details

Stainless Steel Wire

Stainless Steel Bright Line

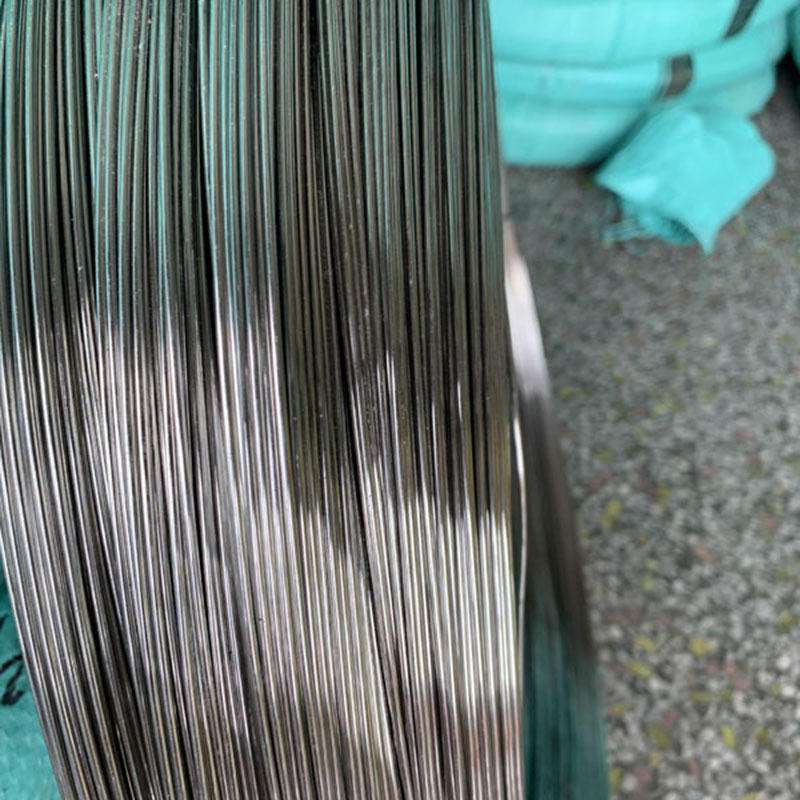

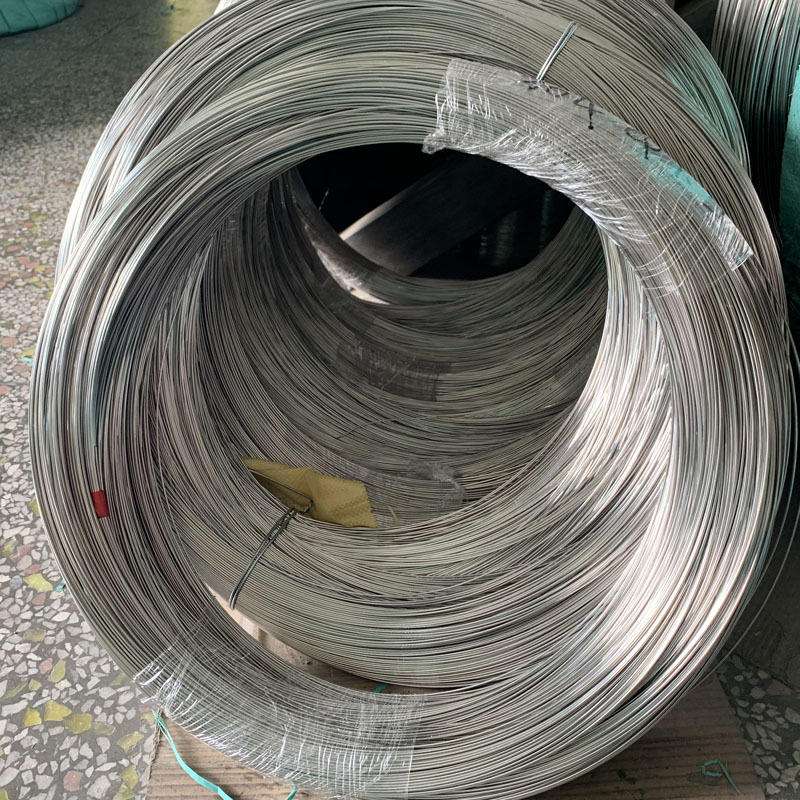

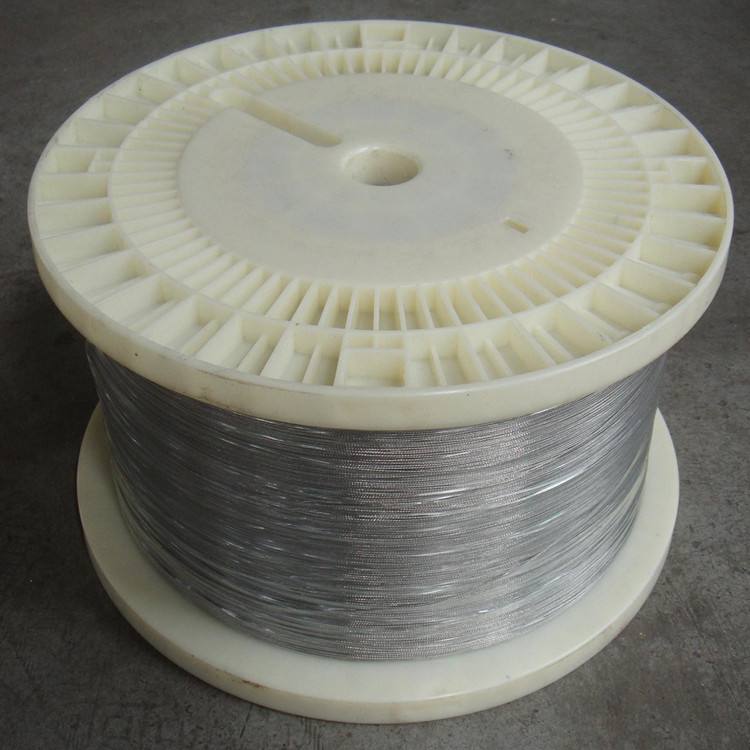

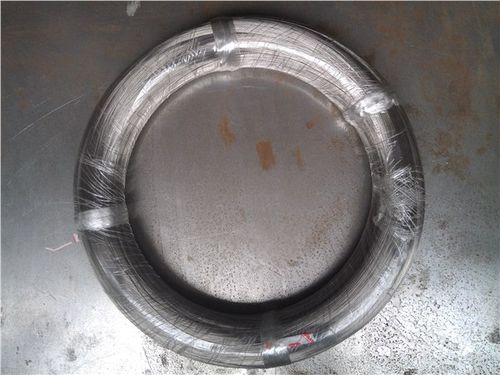

AISI304 Inox SS 2MM Stainless Steel Bright Wire

Overview

Essential details

Standard:ASTM Grade:200 Series 300Series
Length:customized Application:Free Cutting Steel, Cold Heading Steel
C Content (%):~0.25% Si Content (%):~1.50%
Place of Origin:shenzheng, China
Brand Name:HaoFa Tolerance:±1%

Processing Service:Bending,Welding,Decoiling,Punching,Cutting Steel Grade:204C2, 301, 301L, 304, 304J1, 304L, 304N, 310S, 314, 316 Surface Finish:2B Delivery Time:15-21 days

Product name:Stainless steel spring wire Keyword:Stainless steel spring wire

MOQ:1 KG

We can offer Stainless Steel Wire products, including Stainless Steel Spring Wire, Stainless Steel Screw, Stainless Steel Full Flexible Wire, Stainless Steel Piano Wire, Stainless Steel Bright Line, Stainless Steel Electrolysis Line, Stainless Steel Shaped Line, Stainless Steel Non-magnetic Wire, Stainless Steel Wire Rope, and Imported Stainless Steel Wire, etc.

The Stainless Steel Wires are available in various width sizes ranging from 2mm-600mm, we are also able to provide a cutting service to meet your individual requirements. And we have a variety of materials for you to choose from,such as 304,304L,309S,310S,316,316L,316Ti,317L,321,347H,410,441,420J1,410S, and more. Material Specification include, but are not limited to, ASTM, AMS, ASME TUV, BV, SUS.

Customized SUS 201 304 310S 1mm stainless steel wire/stainless steel wire/steel wire

304lStainless steel spring wire 304 316 301Stainless steel spring wire 304 304Stainless steel wire 301

2520 chemical composition: referred to as 310S 310S stainless steel grade: 0Cr25Ni20/1Cr25Ni20Si2

Chemical composition C≤0.08, Si≤1.00, Mn≤2.00, P≤0.035, S≤0.030, Ni≤19.00-22.00, Cr≤24.00-26.00

Because there are 25%Cr, 20%Ni, it is also called 2520, also called 310S.

Mechanical properties ób(MPa)≥520, ó0.2(MPa)≥205, δ5(%)≥40, Ψ(%)≥50, HB≤187

It can withstand high temperature above 1150. Melting point is 1398~1454

Mechanical properties:

Hardness(HB):≤187

Tensile Strength(бb)(Mpa) :≥520

Yield Strength(σs)(Mpa) :≥205

Elongation (δ)% :≥40

Area reduction (ψ)% :≥50

Stainless steel wire:

The main materials are: SUS316L, 316L, 314L, 310S, 309S, 304, 301, 202, 201 and other imported stainless steel

Wire The main varieties are: 301 stainless steel spring wire, 304L stainless steel spring wire, 321 stainless steel wire, 316L stainless steel spring wire, 304L stainless steel wire and other stainless steel wire.

Specifications: 0.4mm～80mm

Applications: petroleum, electronics, chemical, pharmaceutical, textile, food, machinery, construction, nuclear power, aerospace, military and other industries!
