B3 Rod Seals

10 month ago

12 0

DG Zhongxingshun Sealing Products Factory

 4 year year

Product details

Product Description:

This is the lip seal of imported polyurethane material,excellent wear resistance,mainly used for the sealing of piston rod and plunger in heavy-duty walking machinery and static pressure,the groove and diameter size meet the requirements of IS05597/1 and IS03320 international standards.

Product advantages:

Excellent wear resistance Sensitive to shock loads and pressure peaks Very high resistance to extrusion low permanent compression set Suitable for harsh working conditions Easy installation

Technical parameters:

Working temperature:≤40Mpa Working temperature:-30 ℃~100℃ Reciprocating speed:≤ 0.5m/s

Medium:

Hydraulic oil (Mineral oil based)

Installation:

These seals shall have an axial clearance (see columns H and L).To avoid damage to the sealing lip do not pull the seal on the sharp edge during installation.

Materials:

Imported polyurethane material with a Shore hardness of 93.The main advantages are improved heat resistance enhanced hydrolysis resistance and small compression deformation.

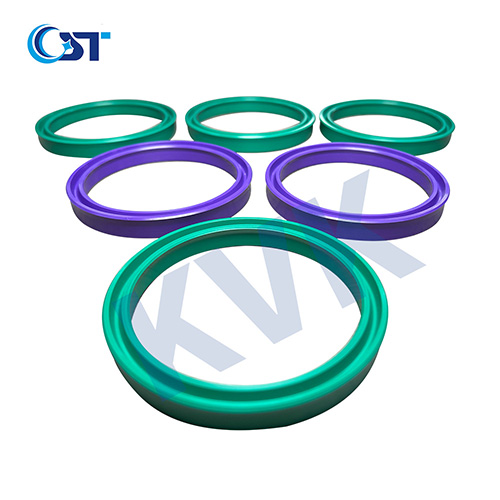

Product physical map:

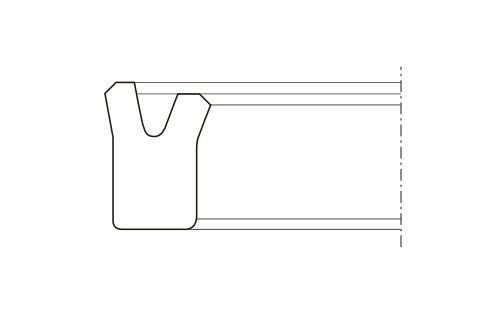

Section:

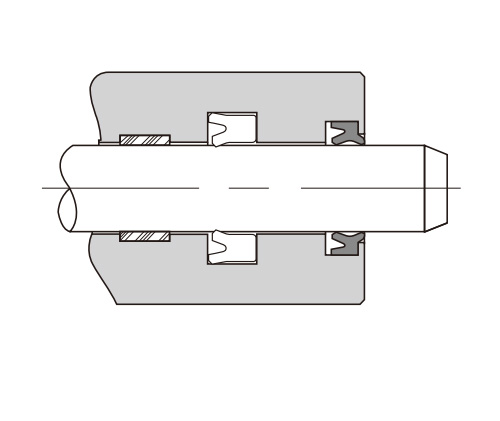

Assembly diagram:
