YESINO Premium Corrosion-Resistant Platinum Anodes for Marine Cathodic Protection
YESINO's marine-grade platinum electrochemical anodes are engineered to provide unparalleled corrosion protection in the most aggressive saltwater environments. As a global leader in advanced titanium and anode solutions, our Platinum Anodes are the definitive choice for critical infrastructure, including offshore oil rigs, ship hulls, and subsea pipelines. They deliver robust, long-lasting cathodic protection, ensuring structural integrity and significantly reducing lifecycle costs.
Technical Specifications
Our anodes are manufactured to the highest international standards, utilizing a premium titanium substrate for maximum strength and durability.
- Substrate Material: High-Grade Titanium Bar / Titanium Plate (Gr.1 or Gr.2)
- Active Coating: Platinum or Platinum-Iridium alloy
- Coating Thickness: Customizable from 2.5µm to 10µm+
- Operating Depth: Excellently performs at depths exceeding 2,000 meters
- Current Capacity: Designed for high-current-output applications
- Operating Temperature: -40°C to +60°C (wider ranges available upon request)
- Connectors: Custom titanium or copper-cored titanium welding studs
- Standards: Compliant with DNV, NORSOK, and other major marine standards

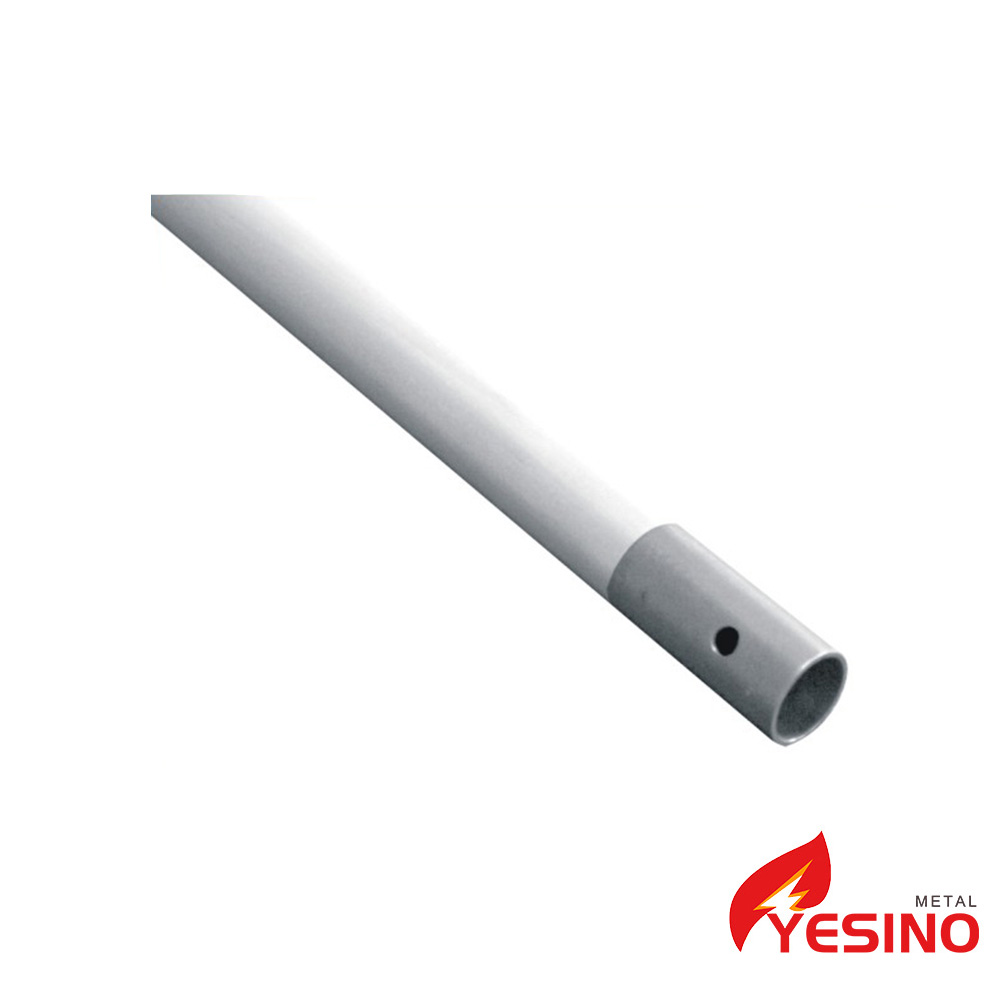

Product Images
Product Features & Advantages
YESINO anodes are the result of continuous innovation and precision engineering, setting the benchmark for performance and reliability.
- Hybrid Platinum-Iridium Coating: Our proprietary layered coating technology drastically enhances electrochemical activity and erosion resistance, far outperforming standard MMO or simple platinum coatings.
- Exceptional Deep-Sea Performance: Engineered to maintain stable potential and high current output even under extreme hydrostatic pressure at depths beyond 2000m, making them ideal for pipelines and subsea equipment.
- Zero Maintenance & Long Service Life: As a permanent impressed current anode, it eliminates the need for frequent replacement of bulky sacrificial anodes, drastically reducing operational downtime and costs.
- Superior Current Distribution: Provides uniform and efficient cathodic protection, preventing over-protection and coating disbondment on structures.
- Robust Titanium Core: Fabricated from our own high-quality Titanium Bar and Titanium Plate, ensuring excellent mechanical strength and resistance to physical damage during installation and service.
Installation and Implementation Guide
Proper installation is key to maximizing anode performance. Follow these general steps for our Platinum Anodes (always refer to the project-specific design document).
- System Design: A certified cathodic protection engineer must design the system, calculating the required current output and number of anodes.
- Site Preparation: Prepare the mounting location on the structure (hull, pipeline, etc.), ensuring it is clean, dry, and free of contaminants.
- Anode Mounting: Securely weld or bolt the anode to the structure using the integrated titanium connectors, ensuring a low-resistance electrical connection.
- Cable Connection: Connect the anode's header cable to the positive output of the impressed current rectifier. Ensure all connections are waterproofed and insulated to the highest marine standards.
- System Activation & commissioning: Energize the system and adjust the rectifier output to achieve the designed protective potential on the structure. Monitor and fine-tune as necessary.
Application Scenarios
YESINO Platinum Anodes provide critical protection across the marine and offshore industries.
- Ship & Vessel Hulls: Protecting the underwater hulls of cargo ships, tankers, naval vessels, and yachts from galvanic corrosion.
- Offshore Structures: Jackets, platforms, and floating production units (FPSOs).
- Subsea Pipelines: Ensuring the integrity of oil and gas transmission lines on the seabed.
- Sea-Water Intake Systems: Protecting pumps, gates, and screens in desalination plants, power stations, and ports.
- Ballast Tanks & Internal Spaces: Used in conjunction with our Water Treatment Anode solutions for internal tank protection.
Tangible Benefits for Your Operations
Investing in YESINO technology translates directly into measurable operational and financial advantages.
- Drastically Reduce Maintenance Costs: A documented case study showed a 90% reduction in hull corrosion and annual savings of over $500,000 on maintenance, dry-docking, and repair for a major shipping company.
- Extend Asset Lifespan: Maximize the operational life of multi-million dollar assets by preventing corrosive degradation.
- Enhance Operational Safety: Mitigate the risk of catastrophic structural failure due to corrosion.
- Improve Operational Efficiency: Eliminate the downtime and fuel penalties associated with dragging bulky sacrificial anode systems.
- Environmental Compliance: Provide effective protection without the need for frequent anode replacement, reducing waste and seabed disturbance.
Certifications and Compliance
Our manufacturing processes and final products adhere to the most stringent international quality and safety standards, giving you complete confidence.
- ISO 9001:2015 Quality Management Systems certified.
- Materials and processes compliant with DNVGL-RP-B401, NORSOK M-503, and ISO 15589-2.
- Anodes can be manufactured and tested according to client-specified standards.
Customization Options
We understand that every project is unique. YESINO offers extensive customization to meet your exact technical requirements.
- Dimensions & Shape: Custom anode sizes and forms (e.g., rod, disc, mesh) based on your Titanium Wire, bar, or plate stock.
- Coating Formulation & Thickness: Tailored to specific electrolyte conditions and desired service life.
- Connector Design: Custom welding studs, threaded connections, or cable types to suit your installation methodology.
- Integrated Systems: We can supply complete systems, integrating our anodes with Saltwater Chlorinator units or Sodium Hypochlorite System components for water treatment applications.
Our Commitment to Quality: The Production Process
Every YESINO anode undergoes a rigorous, multi-stage manufacturing and quality assurance process.
- Material Selection: Only certified, high-purity Titanium Plate, bar, and wire are used as substrate materials.
- Precision Machining: The titanium substrate is machined to exact specifications and meticulously cleaned and etched.
- Advanced Coating Application: The platinum or platinum-iridium coating is applied using controlled electroplating or thermal deposition methods.
- Quality Control Testing: Each anode undergoes dimensional checks, adhesion tests, and electrochemical performance verification.
- Certification & Packaging: Final products are certified, carefully packaged, and shipped for global delivery.
Customer Testimonials
Global Offshore Drilling Contractor: "After switching our entire deep-water fleet to YESINO's platinum anodes, we've seen a complete elimination of premature anode failure. Their performance in the Gulf of Mexico has been exceptional, providing consistent protection and allowing us to confidently extend our inspection intervals."
European Shipyard Group: "The technical support from YESINO's engineers was invaluable during the design phase of our new vessel series. The customized Cathodic Protection Anode solution they provided was perfectly integrated into our hull design, and the post-installation performance data has precisely matched their projections."
Frequently Asked Questions (FAQ)
- Q: How does a platinum anode differ from a traditional sacrificial anode?
A: Sacrificial anodes (e.g., zinc, aluminum) corrode themselves to protect the structure. Platinum anodes are part of an "Impressed Current Cathodic Protection" (ICCP) system. They are connected to an external power source (rectifier) and are highly efficient, long-lasting, and controllable, making them ideal for large structures.
- Q: What is the expected service life of a YESINO platinum anode?
A: Service life is primarily determined by the coating thickness and operating current density. Under typical design conditions, our anodes can last 15-25 years or more, far exceeding the life of sacrificial anodes.
- Q: Can your anodes be used in fresh or brackish water?
A: Absolutely. While optimized for seawater, our anodes are highly effective in brackish water, muddy environments, and even certain freshwater applications. For specific water treatment uses, we also offer specialized MMO Titanium Anode and MMO Tubular Anode products.
- Q: Do you provide technical support for system design?
A: Yes. Our engineering team offers comprehensive support, from initial system design and calculations to installation guidance and commissioning assistance. We partner with you to ensure optimal system performance.
- Q: How do I decide between a Platinum Anode and an MMO Anode?
A: Platinum anodes generally offer higher maximum current densities and can be more robust in highly turbulent or abrasive environments. MMO (Mixed Metal Oxide) Anodes are a superb, cost-effective solution for many applications, including water treatment. Our experts can help you select the right technology for your specific environment and budget.
