This magnetostrictive level gauge is an advanced product in the field of liquid level measurement. It has the characteristics of high precision and long life, and is suitable for many industries such as petroleum, chemical industry, and electricity. The overall structure of the level gauge is sturdy, with a high level of protection, and can effectively resist dust and water vapor.
The working principle is as follows: In the waveguide wire of the level gauge, the magnetic field generated by the current pulse interacts with the magnetic field of the float magnet, causing a magnetostrictive effect and generating a torsion wave. The torsion wave propagates at a specific speed, and the electronic compartment can determine the distance between the float and the electronic compartment by detecting the propagation time of the torsion wave, thereby measuring the liquid level. The entire measurement process is contactless, which avoids wear and tear, ensures the accuracy and stability of the measurement, and can provide users with reliable liquid level data.

Jiangsu Meiante Technology Instrument Co., Ltd.'s leading products cover five major categories of products, including Level Instruments, Pressure Instruments，Temperature Instrument, Flow Meters, calibration instruments, and Transmitter. Among them, liquid level meters, pressure meters, flow meters, and Differential pressure transmitter have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meiante Instruments.

MAT-CZSS709 Magnetostrictive Level Gauge

Measurement object:	1 position
Power supply:	+12~24VDC
Effective range:	6, F structure: 200~5000mm; R structure: 4000~5000mm
Working temperature:	without meter head -40~+85℃℃, with meter head -20 ~+70℃ (header working temperature)
Working current:	4~20mA
Storage temperature:	-40~+100℃
Non-linear error:	<±0.2%FS. (maximum error 1mm below range 500mm)
Repeatability error:	<±0.01%F.S.
Resolution:	16bitD/A
Temperature effect:	<±0.01%F.S./C
Zero point adjustable range:	100%F.S.
Wire lead:	direct cable, aviation plug, terminal
Enclosure protection level:	IP66 (can be IP67 or IP68 according to customer requirements)
Explosion-proof mark:	Flameproof type Ex db ⅡCT6 Gb; Intrinsically safe type Exia ⅡCT6 Ga; Dust explosion-proof type Ex tbⅢCT80℃ Db

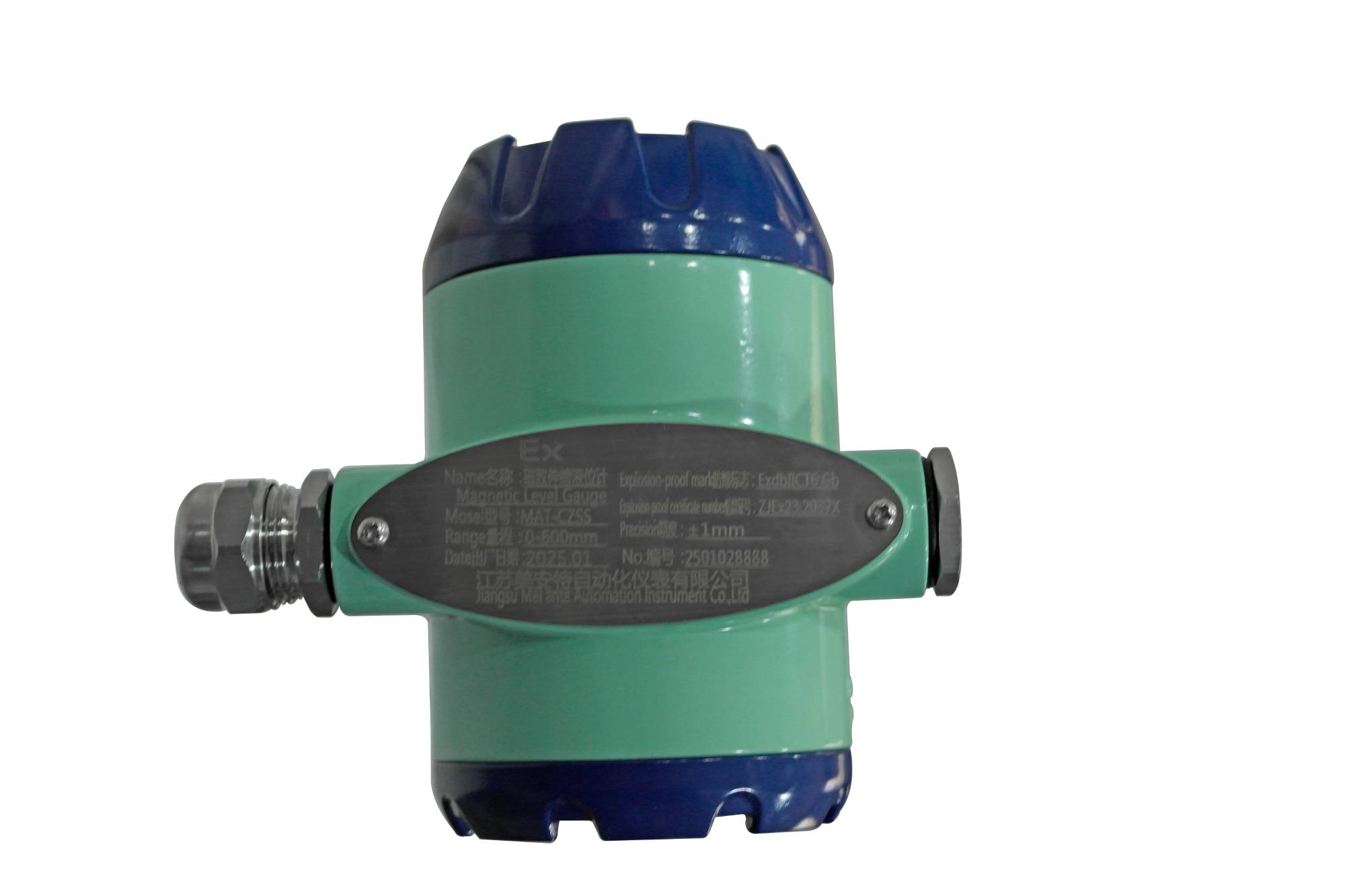

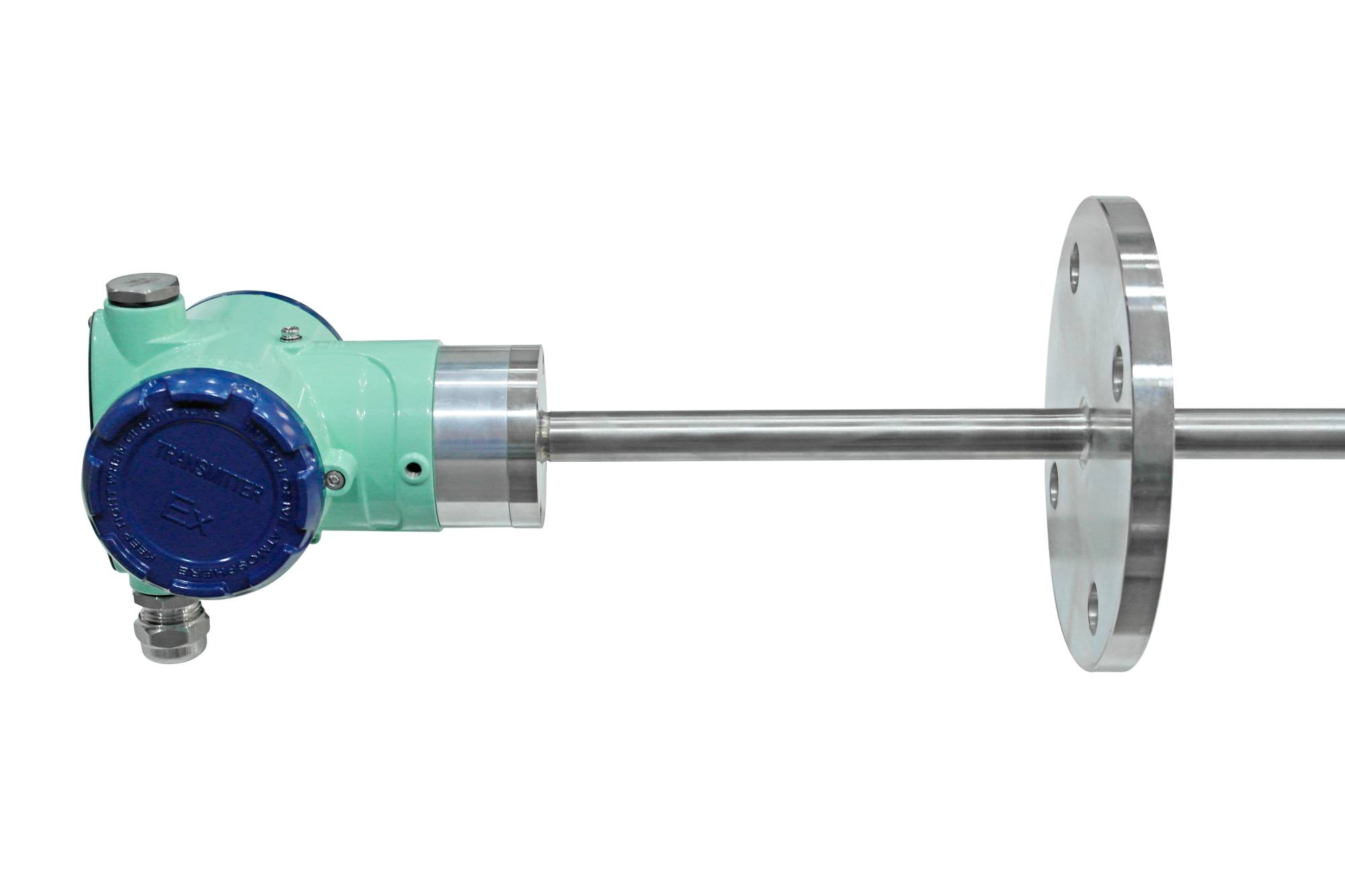

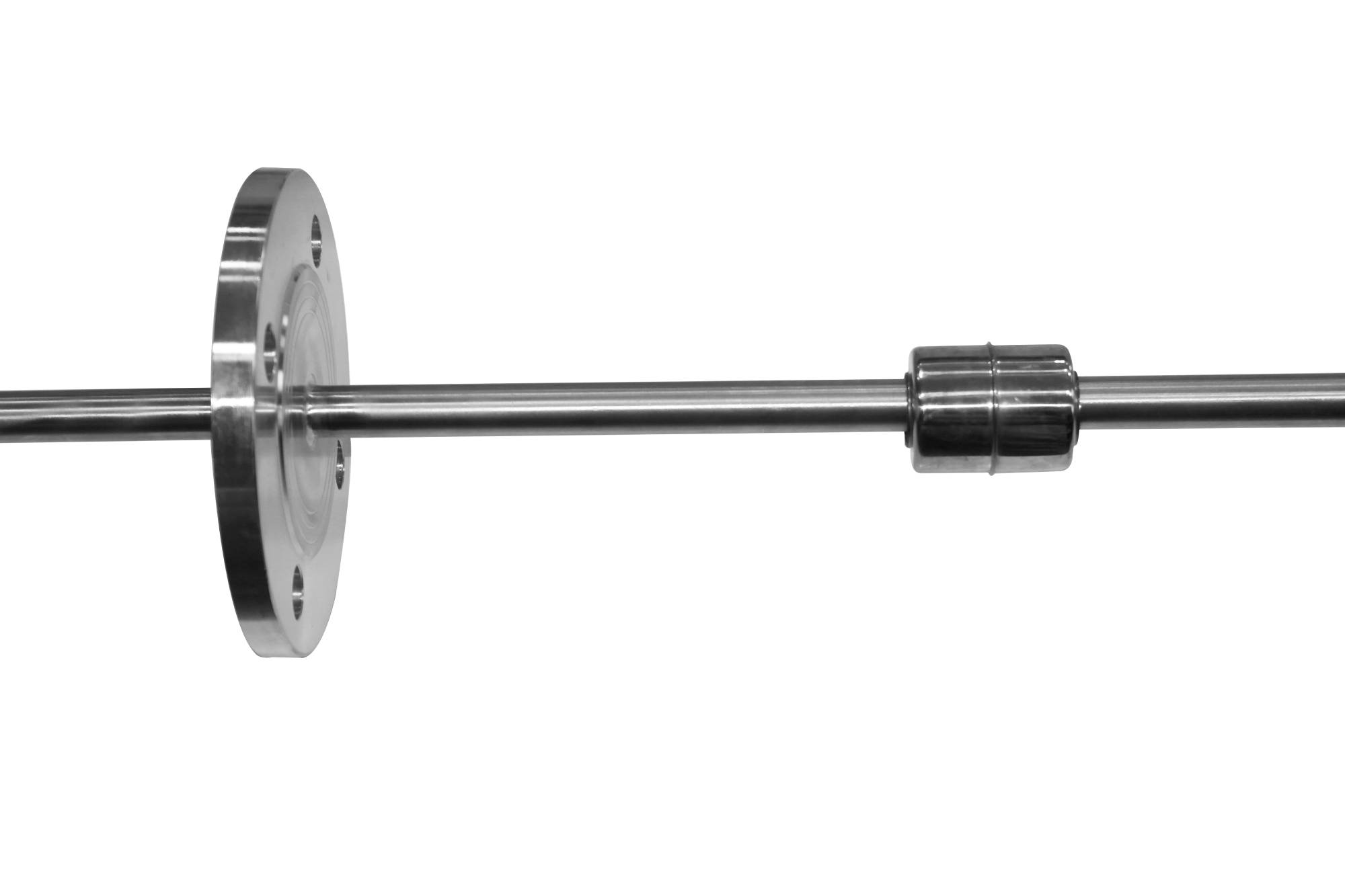

Detail Pictures:
