Liquid silicone injection molding machines and liquid silicone injection moulding machines are essentially the same equipment, just referred to differently.

Both names refer to equipment specifically used to process liquid silicone rubber (LSR). Their operating principle is to precisely mix components A and B of the LSR using a metering pump. A screw or plunger then injects the mixed material into the mold cavity, where it is heated to vulcanize and form the silicone. These machines typically feature specialized feeding, injection, and temperature control systems to accommodate the low viscosity and rapid curing properties of LSR.

In the industry, the terms "injection molding machine" and "injection moulding machine" are commonly used. There's no essential difference between the two; both refer to the equipment used in the LSR injection molding process.

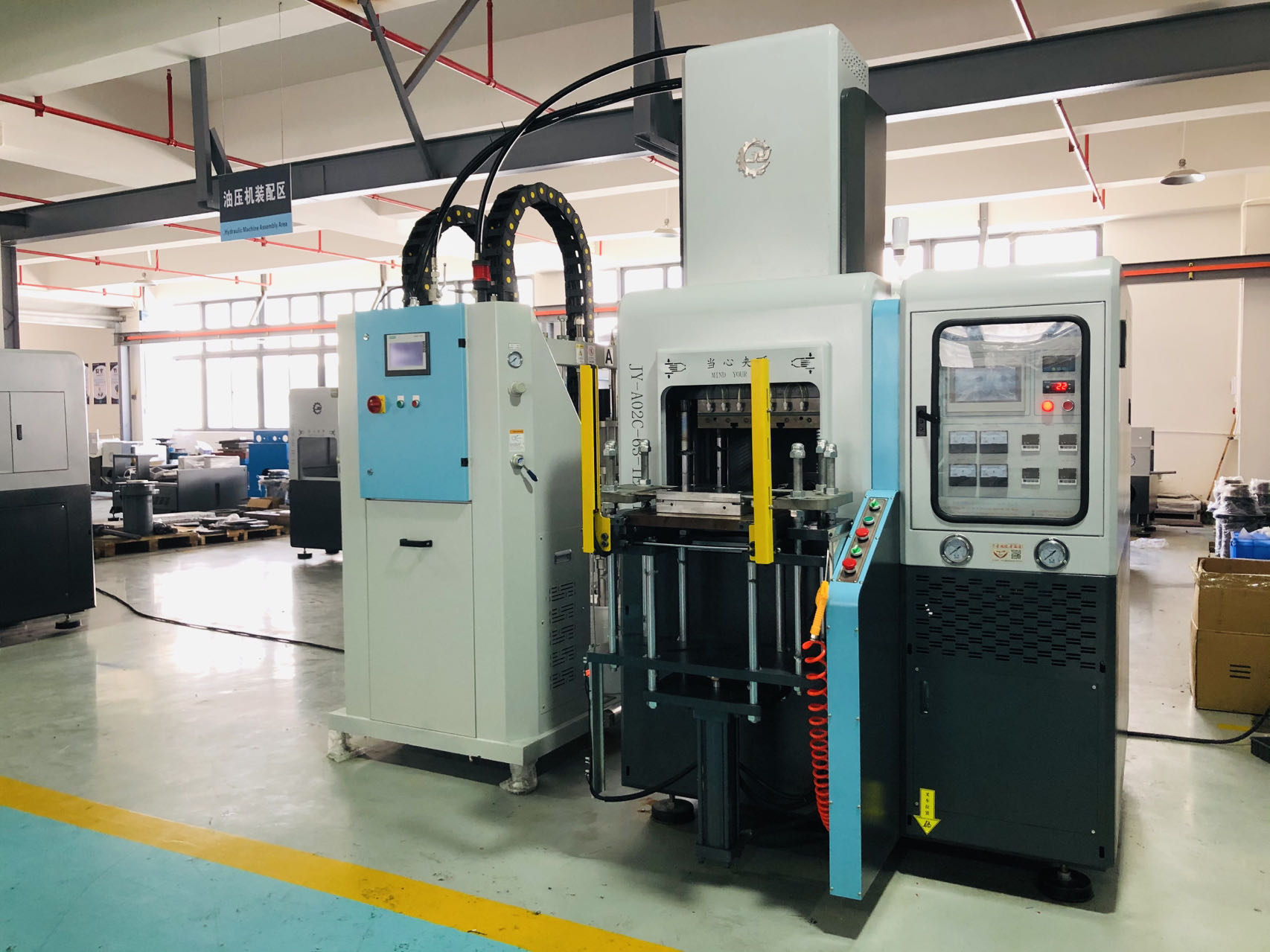

Core Features of Jinyu TUA Brand Liquid Silicone Rubber Injection Molding Machine

With its multi-dimensional structural design and flexible functional adaptation, Jinyu TUA Brand Liquid Silicone Rubber Injection Molding Machine covers diverse production needs. Its core features are organized as follows:

I. Core Structural Composition

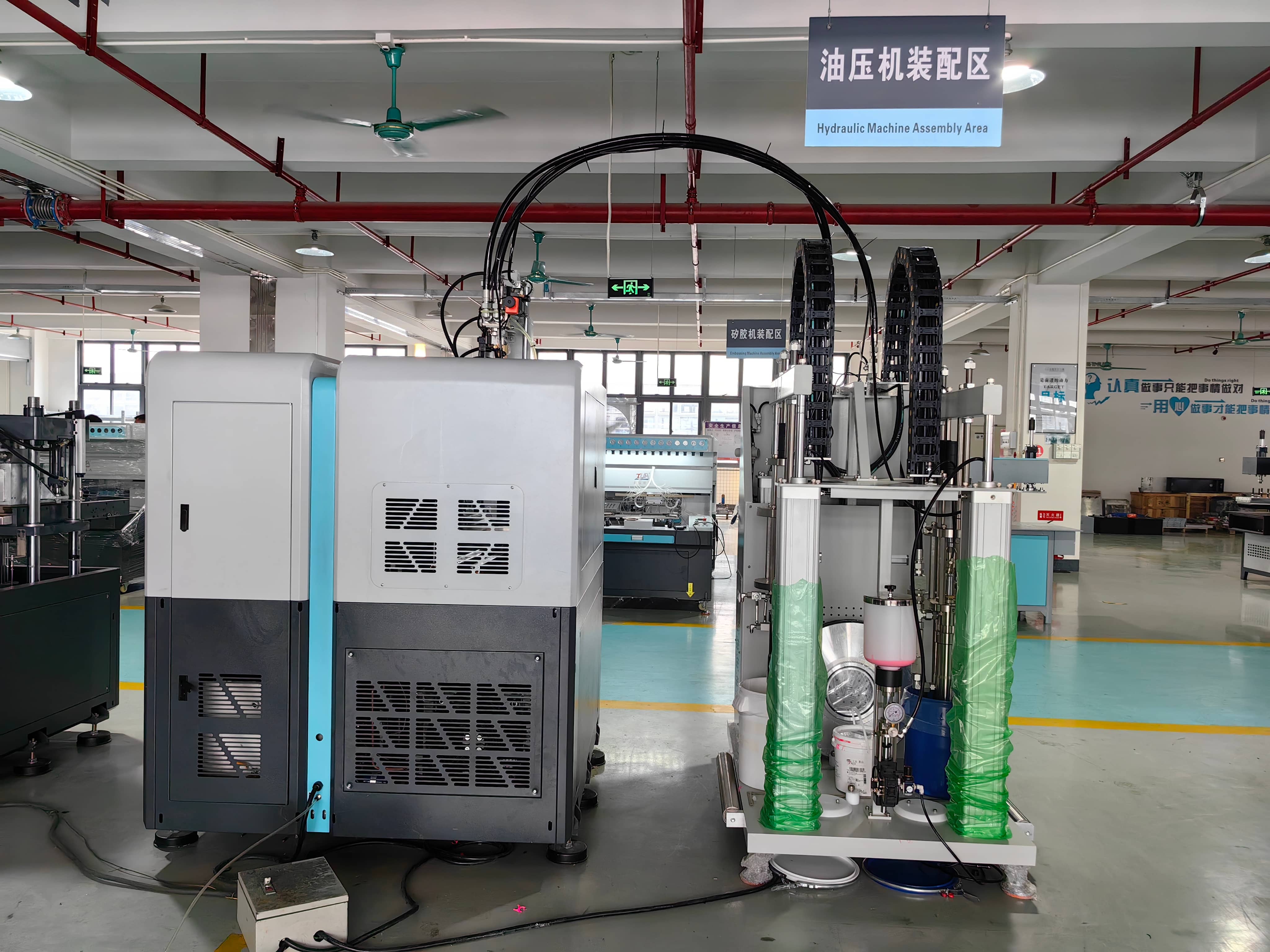

The equipment is mainly composed of two core systems to ensure basic production efficiency:

• Molding System: Undertakes the core molding function and supports molding operations of various processes;

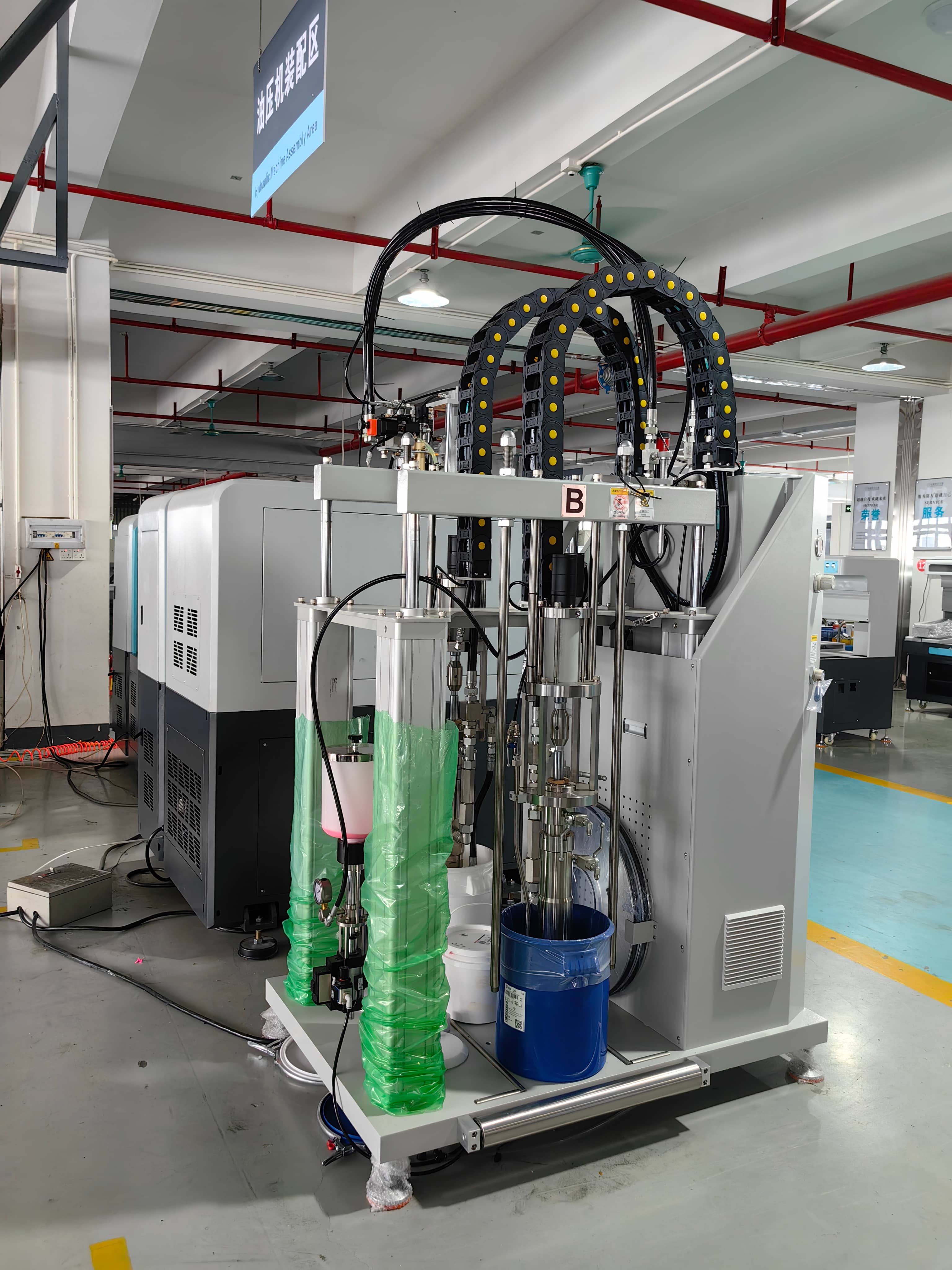

• Feeding System: Precisely conveys liquid silicone raw materials, compatible with single or dual feeding configurations.

II. Key Performance Parameters

INJECTION UNIT
Screw Diameter	Φ25mm
Screw Diameter	Φ35mm
Theoretical Injection Volume	73㎝3
Theoretical Injection Volume	240㎝3
Injection Weight(PS)	81g(oz)
Injection Weight(PS)	264g(oz)
Max.Injection Pressure	600Mpa(kgf/cm2)
Max.Injection Pressure	450Mpa(kgf/cm2)
Injection Rate	25cm3/sec
Injection Rate	45cm3/sec
Injection Speed	50mm/s
Injection Speed	50mm/s
CLAMPING UNIT
Clamping Force	617/(63)kN(tf)
Clamping Stroke	250mm
Min.Mold Thickness	30mm
Max.Opening	270mm
Distance Between Tie Bars	540*300mm
Max Mould Size	400*400mm
Ejector Distance	300mm
Ejector Force	16.6kN(tf)
OTHERS
System Pressure	13.7（140）Mpa(kgf/cm2)
Oil Tank Capacity	35L
Electric Power	AC380V5.5KW
Heater Power	10.8kw
Machine Dimension	150018501750mm
Machine Weight	2000kg

III. Core Functions & Product Adaptability

1. Wide Product Coverage: It can not only process precision small electronic components but also produce larger products such as children's pacifiers and baby nipples;

2. Two-Color Molding Capability: Equipped with two feeding systems, it can realize one-time two-color silicone product molding with a single mold;

3. Multi-Process Compatibility:

◦ Independent Solid Silicone Molding: With the molding interface, the molding system can independently complete solid silicone molding operations;

◦ Multi-Color Product Customization: Combined with dispensing equipment, first use a multi-needle/multi-nozzle dispensing machine to inject logo patterns onto the mold surface, bake until semi-dry, then move the mold directly into the molding system. Through the feeding system, inject liquid silicone into the mold, and finally mold via the molding system to produce multi-color silicone products.

IV. Equipment Protection & Stability Design

Built-in Water Chiller: A water chiller is directly integrated into the molding system, which effectively reduces the internal temperature of the equipment, avoids damage to internal parts caused by high-temperature environments, and ensures long-term stable operation of the equipment.

Supplementary Notes

1. Terminology Consistency: Adopts industry-universal abbreviations (LSR for Liquid Silicone Rubber) and accurate technical terms (e.g., "water chiller" for 冷水机组, "multi-needle/multi-nozzle" for 多针头多喷头) to meet professional communication needs;

2. Sentence Structure Optimization: Uses concise and logical expressions, suitable for technical manuals, foreign trade promotion materials, or customer communication scenarios.
