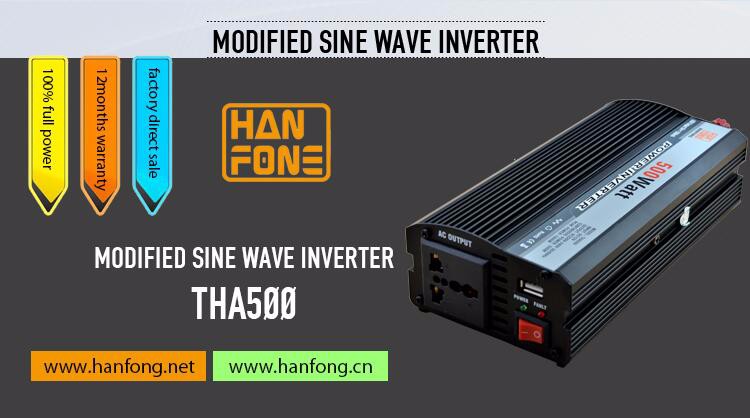

DC to AC Car Power Inverter, power inverter circuit diagram, inverter 12v 220v for solar panel
The power inverter 500w 12v is modified sine wave inverter which converts DC power to AC power.full power inverter The power inverter is used for household appliances, solar devices and telecommunication and the other equipments when no grid power is available. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons. The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter. Besides these advantages, THA series power inverter also has grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter. All these designs are made to prolong its span.
Specification:
| Input | Output | Package |
| Input voltage:DC 12V(24V/48V) | Continuous power:500W | Net weight:900g |
| Input voltage range:DC 9.5V-15.5V | Peak power:1000W | Gross weight:1120g |
| Load controlled fan : Yes | Output voltage:AC 220V/110V | Product Size:235*102*58mm |
| Fuse : 35A*2 | Output voltage Regulation : +/-10% | Packing size:350*160*85mm |
| Peak efficiency:>90% | USB Charging port:5VDC,800mA | Packaging : 20 Pcs per carton |
| Working temperature : 0-40 deg C | Output Frequency:50Hz/60Hz | Packaging carton : 535*435*310mm |
| Output wave form:Modified sine wave |
Product Feature:
-Good quality and advantageous prices
-Isolated output
-Soft start
-USB charging port +5VDC, 2100mA
-Battery low voltage alarm
-Cool surface design
-Cooling fins and load controlled fan
-low interference technology

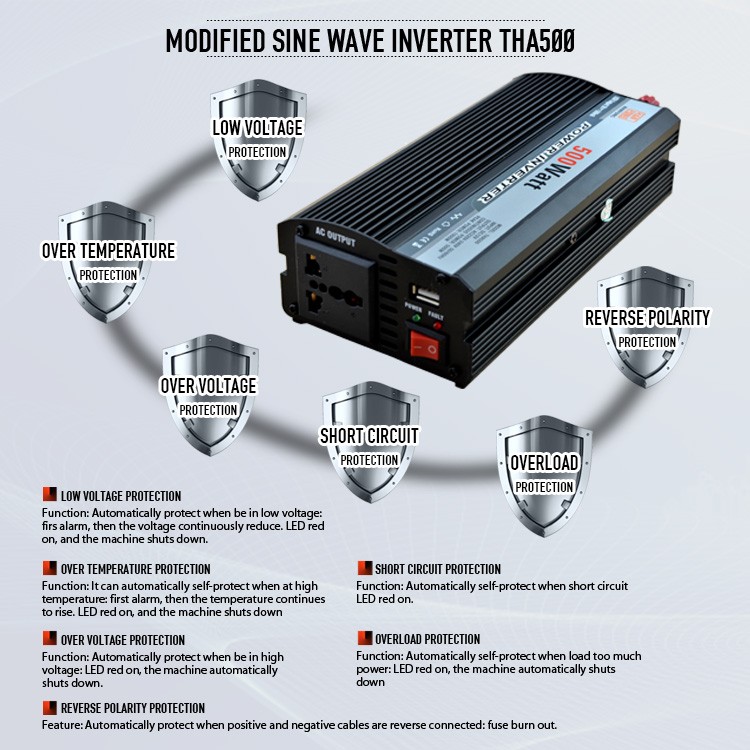

-Protection including: Low /over voltage, over load, short circuit, high temperature, earth leakage

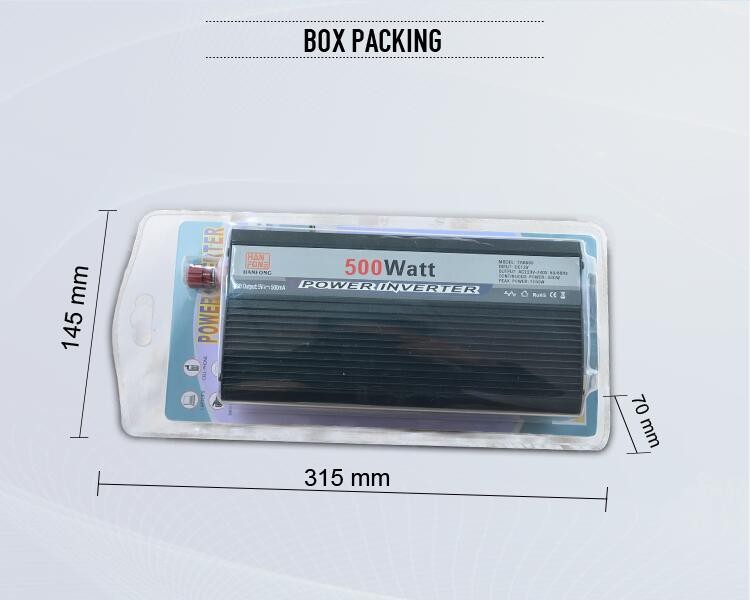

Packing:
Standard packing!
Payment and delivery:
For your selection!
Application:
This inverter suitable for Mobile phone ,12inch color TV, video games console, Electric light, Satellite TV receiver, CD or DVD player. HIFI, Electric fan, Notebook, 19 inch color TV, Small-medium printer, Home theater system, Power drill, Rice cooker, Small coffee machine, Refrigerator, Small microwave oven, and so on.
Honor and Certification:
In our factory, we have most dedicated employees who work professionally in the area of PCB design, SMT mounting, welding, lead wire cutting, general assembly, testing and packing.
