Product details

Fiber Laser Series

CNI offers fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, laser ranging, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The 1550 nm and 1064nm fiber laser are in single longitudinal and polarized mode. The pulsed mode up to 1 MHz modulation and pulse duration variation are also available.

■ Pulsed Laser

Nanosecond Fiber Laser	Picosecond Fiber Laser	Femtosecond Laser

■ CW Laser

Single-Frequency Fiber Laser

Low Noise Fiber Laser

High Stability Fiber Laser

Fiber Accessories

Seed Laser (nm)
Yb-doped	Er-doped	Tm-doped
976-1120	1530-1596	1800-2000

Fiber Amplifier/ Laser (nm)
Yb-doped	Er-doped	Tm-doped
976-1120	1530-1596	1800-2000

Frequency Converted Lasers (nm)
SHG	SFG	DFG
410-510	516-544	2377-3008
488-561	575-594	2853-4771
765-798	584-605	1882-2818
865-1025	591-621
	625-642
	644-668
	682-737

Raman Fiber Laser (nm)

1175-1210

1200-1250

1250-1300

1290-1350

1350-1430

1430-1510

Measurement Data:

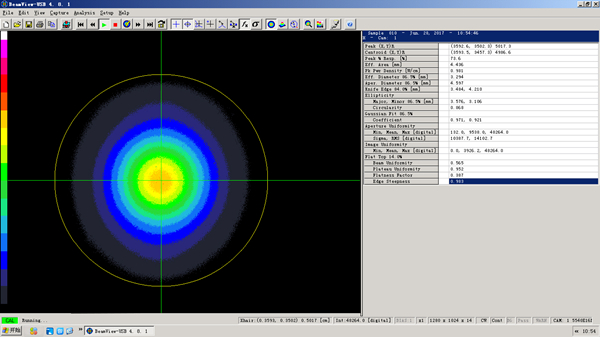

Beam profile of FL-1080-CW

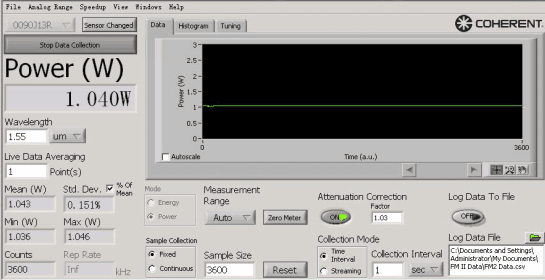

Power stability 0.151% of FL-1550-SF

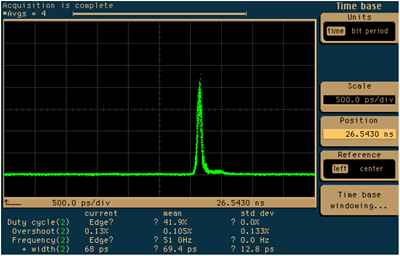

Pulse width testing 69.4 ps

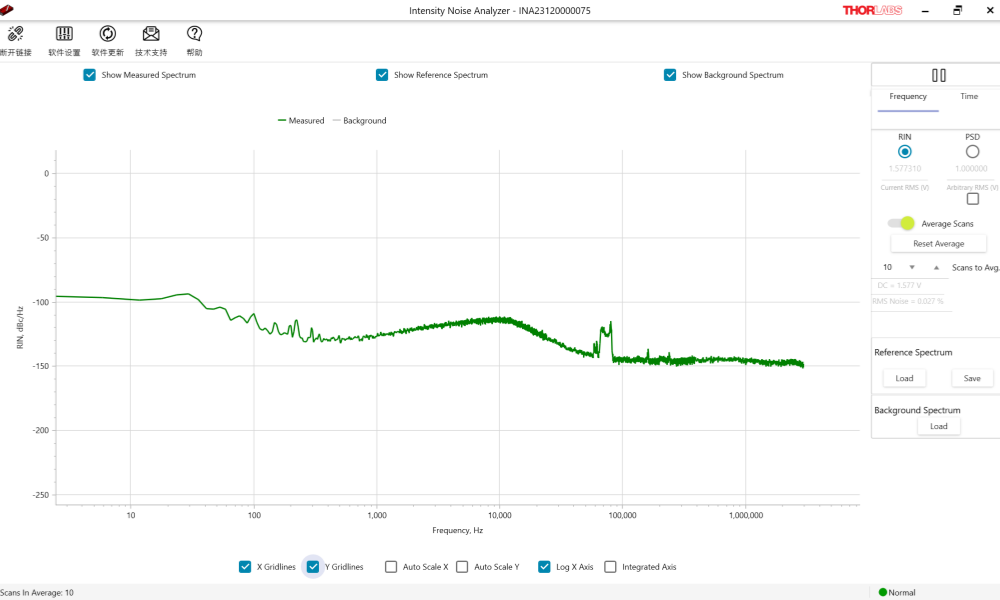

RMS noise 0.027% (DC-3MHz) @FL-532-SF

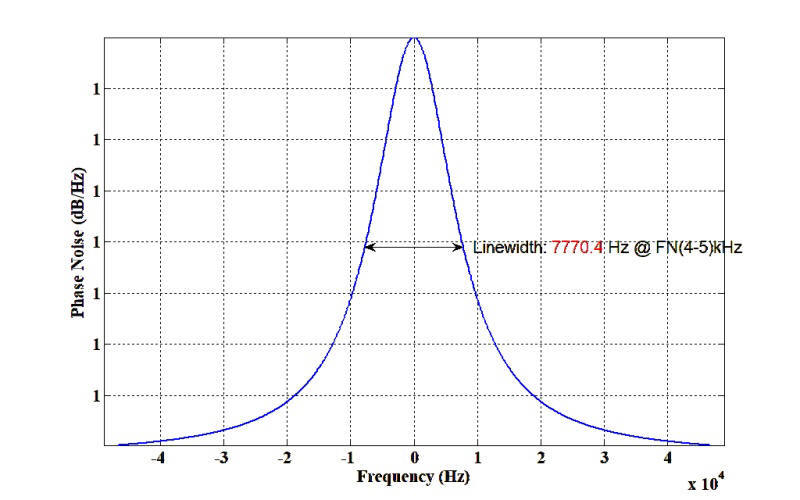

Linewidth 7.77kHz @FL-532-SF

Related Products

Multi-Wavelength Laser

High Frequency Laser

Optic Fiber Spectrometer

Fluorescence Spectrometer

Confocal Laser Scanning Microscopy

Raman Spectroscopy Laser

Laser Induced Breakdown Spectroscopy

Fiber Coupled Laser Diode Module

Certifications

Pulsed Laser Driver

Copmpany Information

CNI owns the strong core technologies in lasers- UV laser, blue laser, green laser, yellow laser, orange laser, red laser, IR laser, laser systems, optical spectrum analyzer, teaching and laboratory equipment, optical measuring equipment, laser processing equipment, machine vision and the photoelectric detection. There are over 120 technical engineers engaged in the R&D and production, 65 patents and lots of successfully international cooperation projects. The technical strength makes the possibility to serve the customers complete solutions for lasers and laser products
