High Current Power Inductors,SMD Power Inductors‌

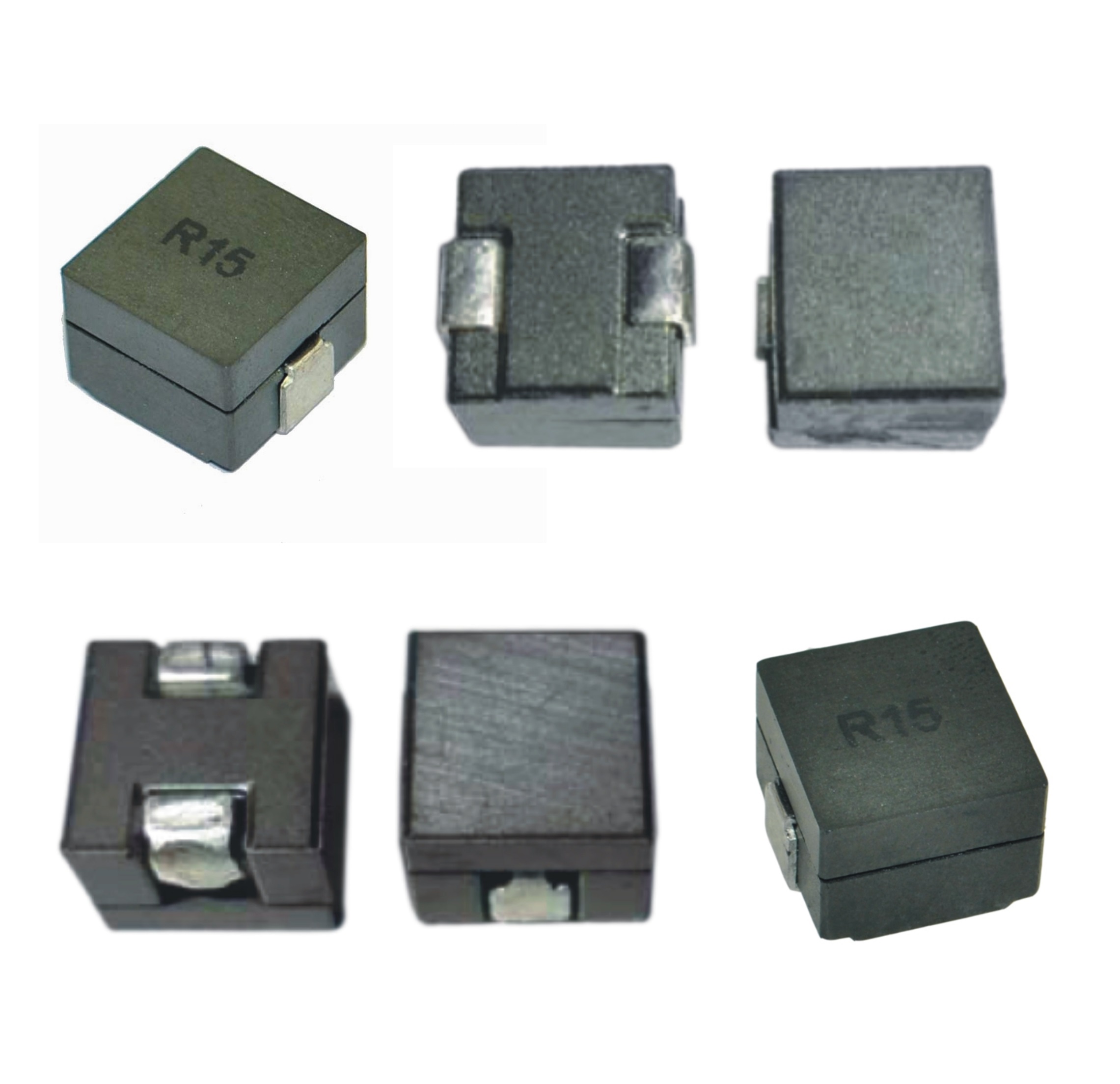

The ‌Power Bead Inductor HCB‌ series represents a breakthrough in high-efficiency ‌Power Inductor‌ design, combining ferrite core technology with advanced thermal management.

As a specialized ‌Power Bead Inductor‌, the HCB series delivers exceptional current handling (14A–35A) and ultra-low core loss, making it ideal for compact power solutions in servers, portable electronics, and multi-phase regulators. Engineered to outperform standard ‌Hvishay Power Inductor‌ models, this ‌Power Bead Inductor‌ ensures stable performance across extreme temperatures (-40°C to +125°C) while minimizing electromagnetic interference in voltage regulator modules (VRMs) and data storage systems.

Key Features‌

‌High Current Capacity‌:
The ‌Power Inductor‌’s ferrite core supports inductances from 22nH to 120nH, aligning with ‌Hvishay Power Inductor‌ standards for high-density applications.
‌Thermal Resilience‌:
Operates reliably in environments ranging from -40°C to +125°C, a critical advantage over conventional ‌Power Bead Inductor‌ designs.
‌Low Core Loss‌:
Reduces energy waste in graphics cards and battery systems, outperforming generic ‌Power Inductor‌ solutions.
‌Compact Integration‌:
Surface-mountable design suits space-constrained applications like notebooks and desktop PCs, similar to ‌Hvishay Power Inductor‌ modules.

‌Applications‌

‌Portable Electronics‌:
The ‌Power Bead Inductor HCB‌ minimizes size while maximizing efficiency in smartphones and tablets.
‌Data Centers‌:
Used alongside ‌Hvishay Power Inductor‌ components in servers and storage systems to stabilize multi-phase regulators.
‌Voltage Regulation‌:
Critical for ‌Power Inductor‌-driven VRMs in industrial workstations and automotive power systems.
‌High-Performance Computing‌:
Enhances power delivery in GPUs and motherboards, leveraging ‌Power Bead Inductor‌ reliability.

Series in this family

Product Series	Inductance(µH)	IDC(A)	Length (mm)	Width (mm)	Height (mm)
HCB0404 0505	22-100	19-30	4.0-5.0	4.0-5.0	3.0-4.8
HCB0703	80-150	13-27	7.35	6.6	3.1
HCB0705	72-226	16-43	7.0	7.0	4.95
HCB0805	32-200	16-65	7.62	7.62	4.96
HCB0906	100-300	27.5-51	9.6	6.4	8.0
HCB1005	80-220	26-53	10.2	7.0	4.95
HCB1007	115-470	19-61	10.5	8.0	7.0
HCB1008	120-220	47-68	10.2	8.0	8.0
HCB1107	120-510	14.5-55	11.2	7.2	7.2-7.5
HCB1208	150-250	44-50	11.8	8.1	8.0
HCB1211	230-540	26-40	11.7	11.5	9.2
HCB1313	220-500	28-40	13.46-13.5	13.0-13.2	5.3-8.0
HCB1413	300-680	24-45	14.5	13.3	9.5
HCB040404R32	55-100	17-19	4.0	4.0	4.0
HCB070705R32	100-180	28-50	7.0	6.8	-
HCB100612R125	70-330	40-77	12.0	10.0	6.0
HCB100709R18	100-400	30-70	10.0	7.0	9.0
HCB100808AR18	120-400	26-70	10.0	8.0	8.0
HCB100808R18	100-320	45-74	10.6	8.0	-
HCB100875R29	100-370	30-56	10.2	8.0	7.5
HCB121109R30	150-500	32-55	11.5	11.0	9.0

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Power Bead Inductor HCB products.
