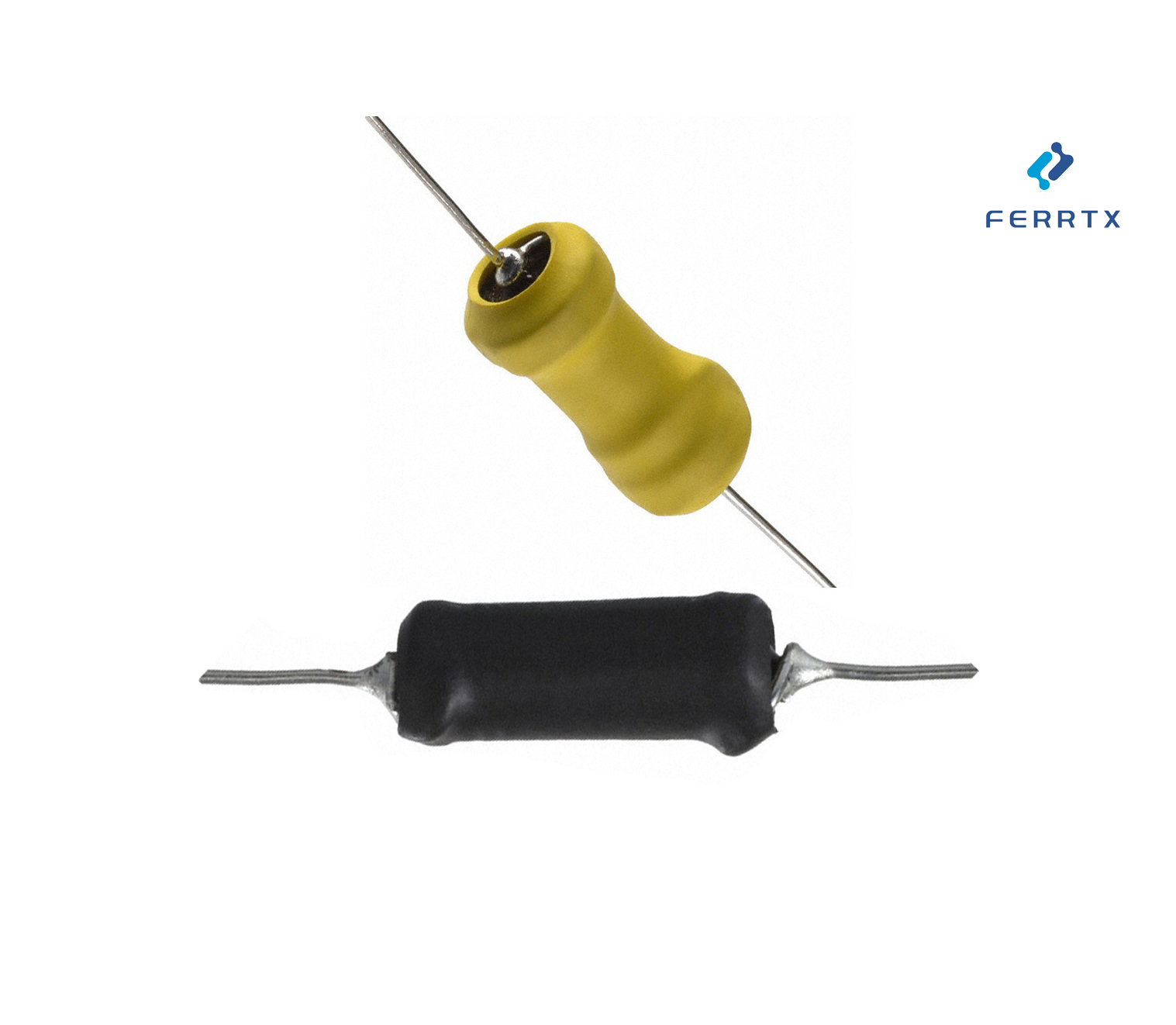

Leaded Inductor

11 month ago

56 0

Shaanxi Ferrtx Enterprise Co.,Ltd.

 2 year year

Product details

Are Inductors Directional

Inductance is not inherently a "directional" component. Its fundamental function is to store energy in a circuit and generate a self-induced electromotive force when the current changes. The inductance value (expressed in Henrys, H) is a scalar quantity that does not involve direction.

However, in certain situations, we may discuss the directionality of inductance components. For example, in AC circuits, the connection method of inductance components can affect their impedance characteristics towards AC signals. When designing magnetic components such as transformers or inductors, the orientation of the magnetic core and the winding direction also influence their performance. In these cases, the term "directionality" refers more to the physical installation or electrical connection method rather than the inherent property of inductance.

FEATURES:

Wire-wound Construction
Polyolefin Shrink Tubing
Excellent Environmental Characteristics
High Reliability
High Inductance and Lower RDC
Axial and radial leaded power inductor
UL polyolefin shrinking tube
Leaded inductor with ferrite core
High-current
High-reliability
Low-resistance
Radial choke inductors
Axial lead fixed inductors
Operating temperature: -55℃ to +125℃

APPLICATIONS:

Output smoothly in Power Supply;
Chopper Control;
Output smoothly(LPF) in large current digital amplifier
Switching Mode Power Supply output smoothing circuit;
Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers;
Other oscillation circuits
Power Supplies
SCR and TRIAC Controls
RFI Suppression
Filters
Switching Regulators

Series in this family

Product Series	L(µH)	DCR Max(Ω)	Isat Max(A)	IDC Max(A)
LCHA0410	3.9-10000	0.06-75.0	52-1800	30-1500
LCHA0617	3.9-18000	0.019-48.3	0.091-7.3	0.039-1.7
LCHA1122	3.9-100000	0.007-89.7	0.081-15.5	0.065-4.0
LCHA1425	3.9-150000	0.007-84.3	0.06-47.0	0.070-6.0

FERRTX is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Leaded Inductor LCHA products.
