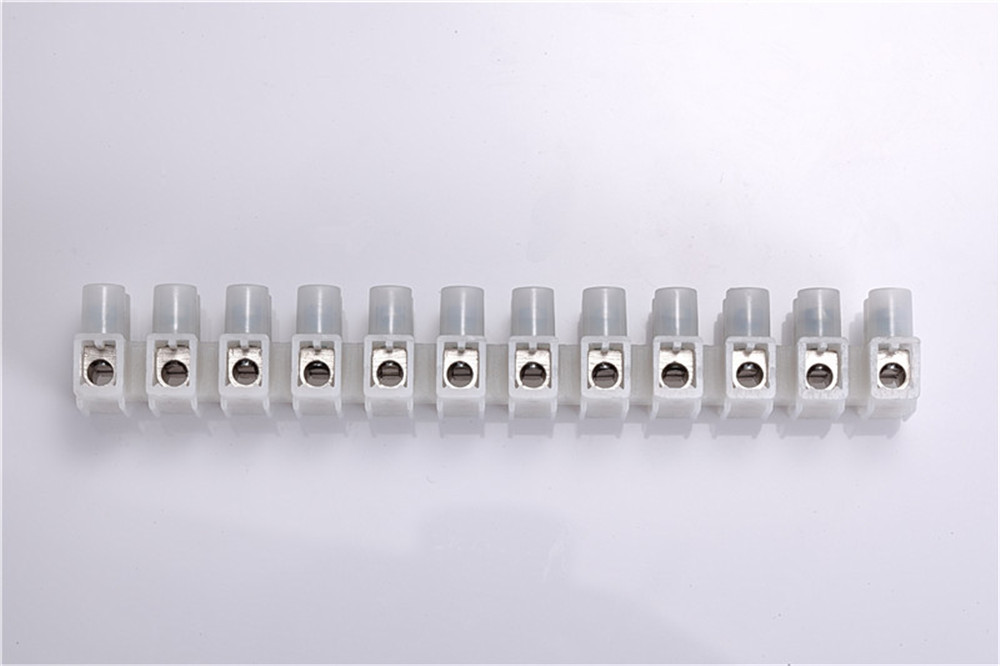

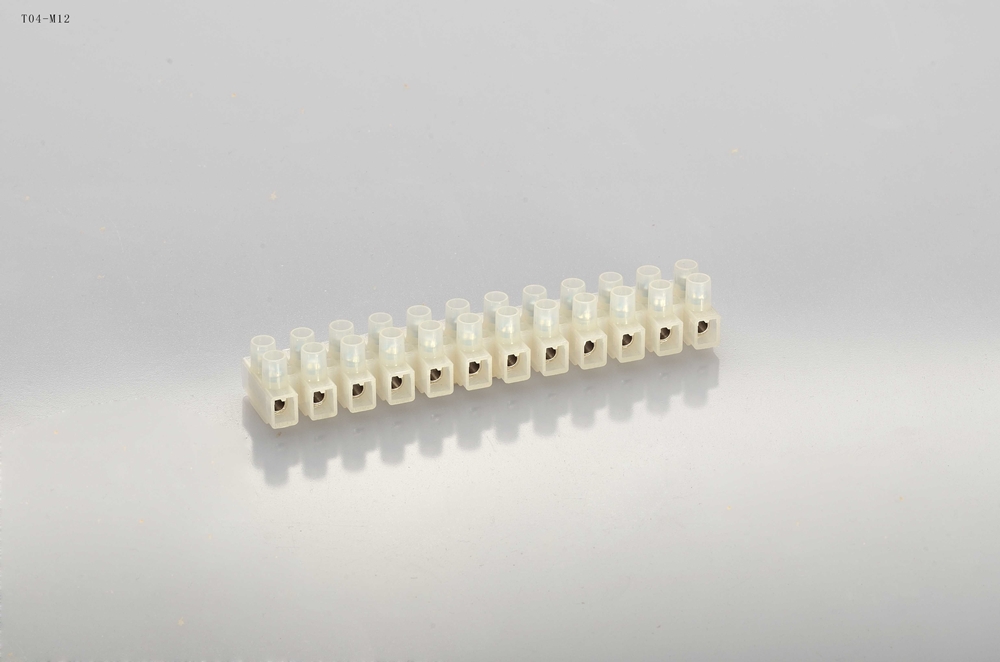

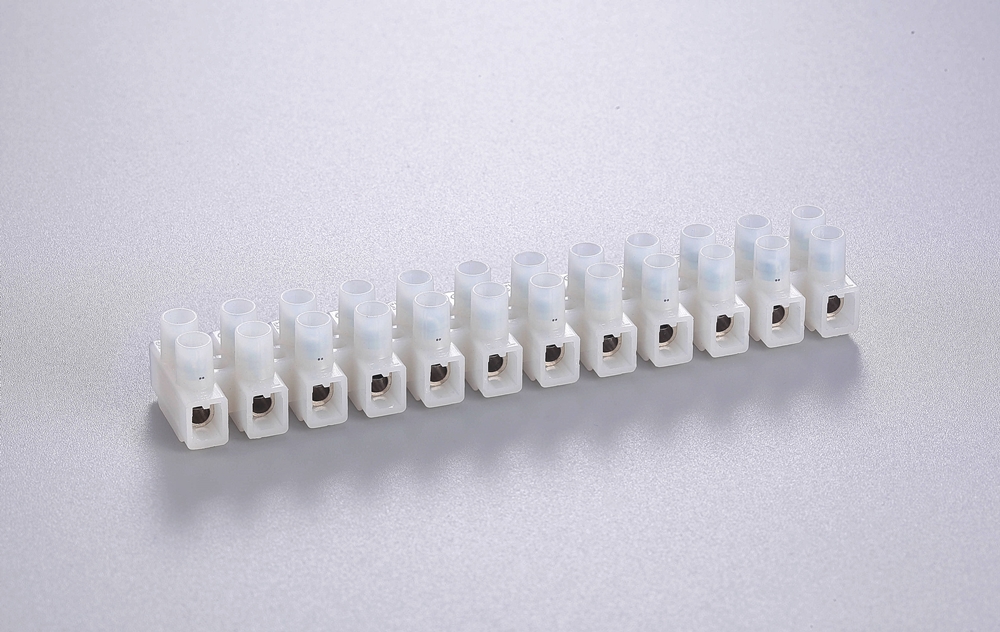

Raised Base Polyamide Steel Terminal Blocks are versatile and robust electrical components designed for a wide range of applications where secure and reliable connections are paramount. BELEKS T04 series terminal connectors feature a sturdy steel core, ensuring high strength and durability, while the raised base made from high-quality Polyamide66 offers exceptional insulation properties and resistance to chemicals, moisture, and temperature fluctuations.

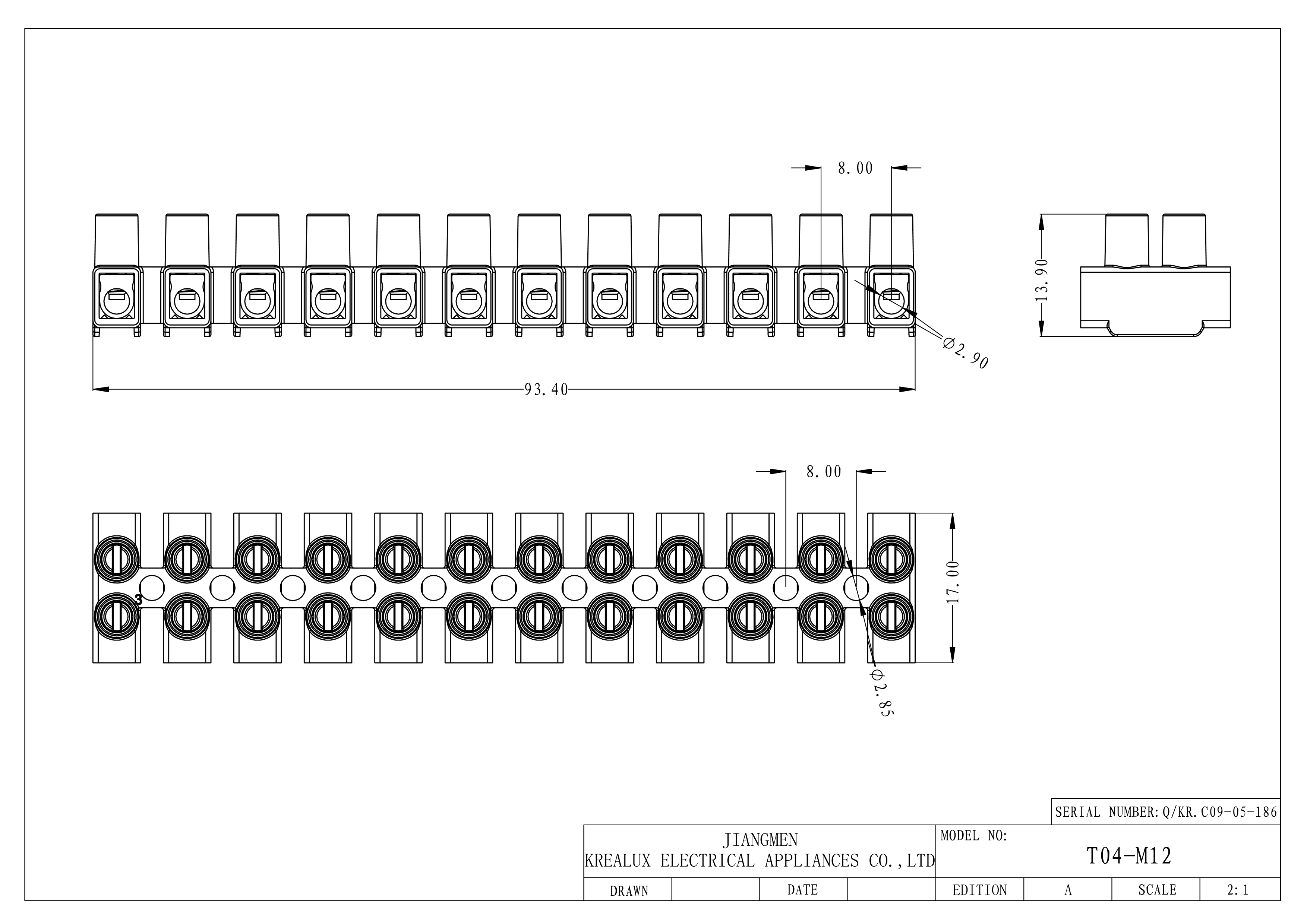

Dimensions
Specifications
| Item No. | T04-M12S | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 450 | 300 | |
| Rated Current (A) | 32 | FW1: 20 | |
| FW2: 15 | |||
| Ambient Temperature | Polypropylene | T85 | |
| Polyamide 66 (V-2) | T110 | 105℃ | |
| Polyamide 66 (V-0) | T135 | 115℃ | |
| Connection Data | |||
| IEC/EN | UL | ||
| Cross Section | Solid conductor | 0.5-4.0mm² | AWG 14-20 |
| Stranded conductor | 0.5-4.0mm² | AWG 14-20 | |
| Flexible conductor | 0.5-4.0mm² | - | |
| Strip length (mm) | 7 | ||
| Means of connection | screw fixed | ||
| Screw | M2.6 | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 1-12 | ||
| Means of Fixing | |||
| screw fixed | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | Polypropylene |
| Flammability class | UL 94V-0 / V-2 | UL 94V-2 | |
| Clamping Unit | steel | ||
| Compatible Products | |||
| Junction boxes | 405, TB-01 | ||
| Packing Quantity (pcs/carton) | |||
| 500 | |||
