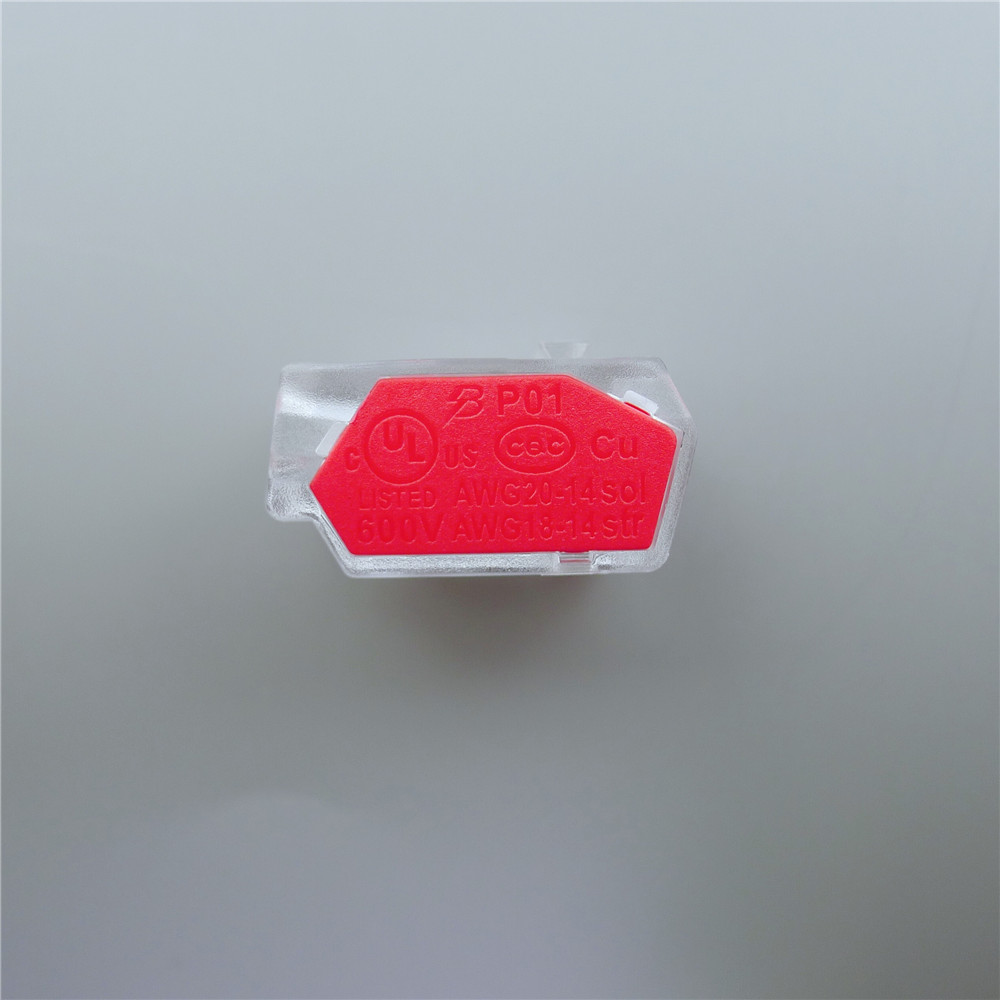

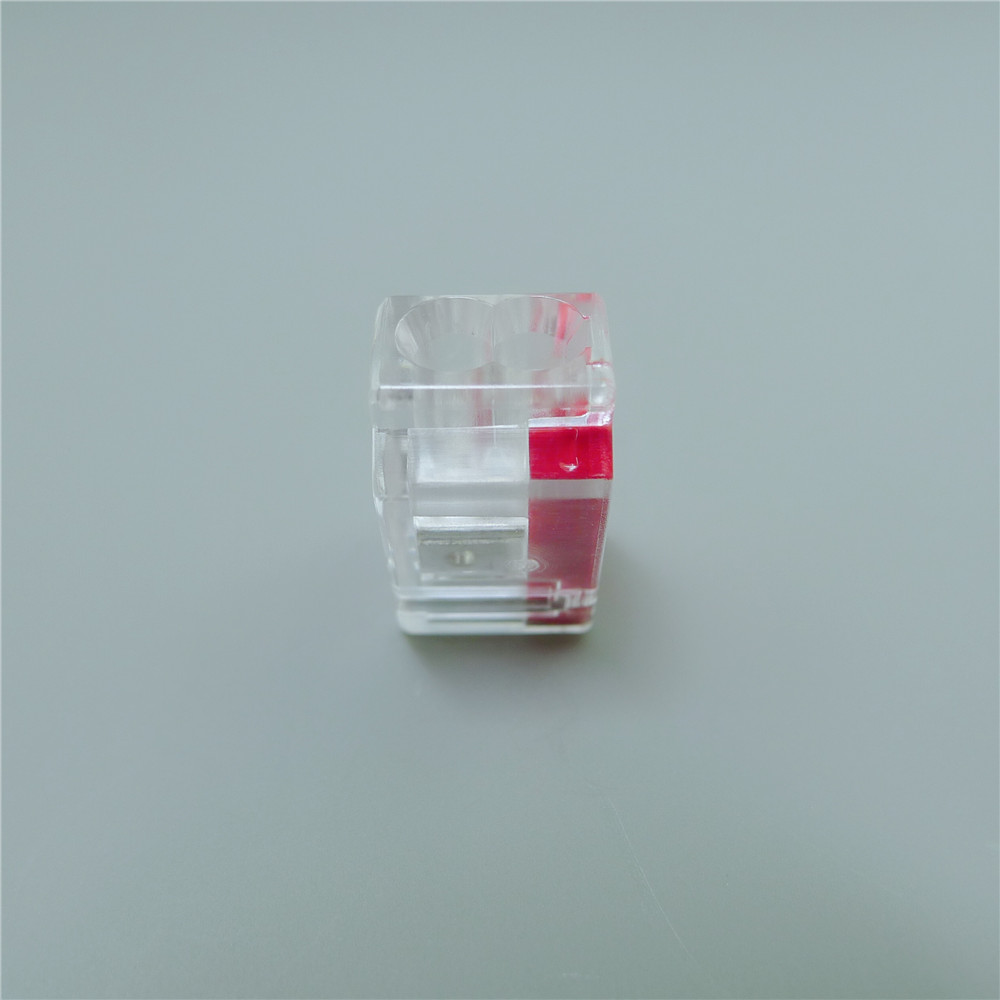

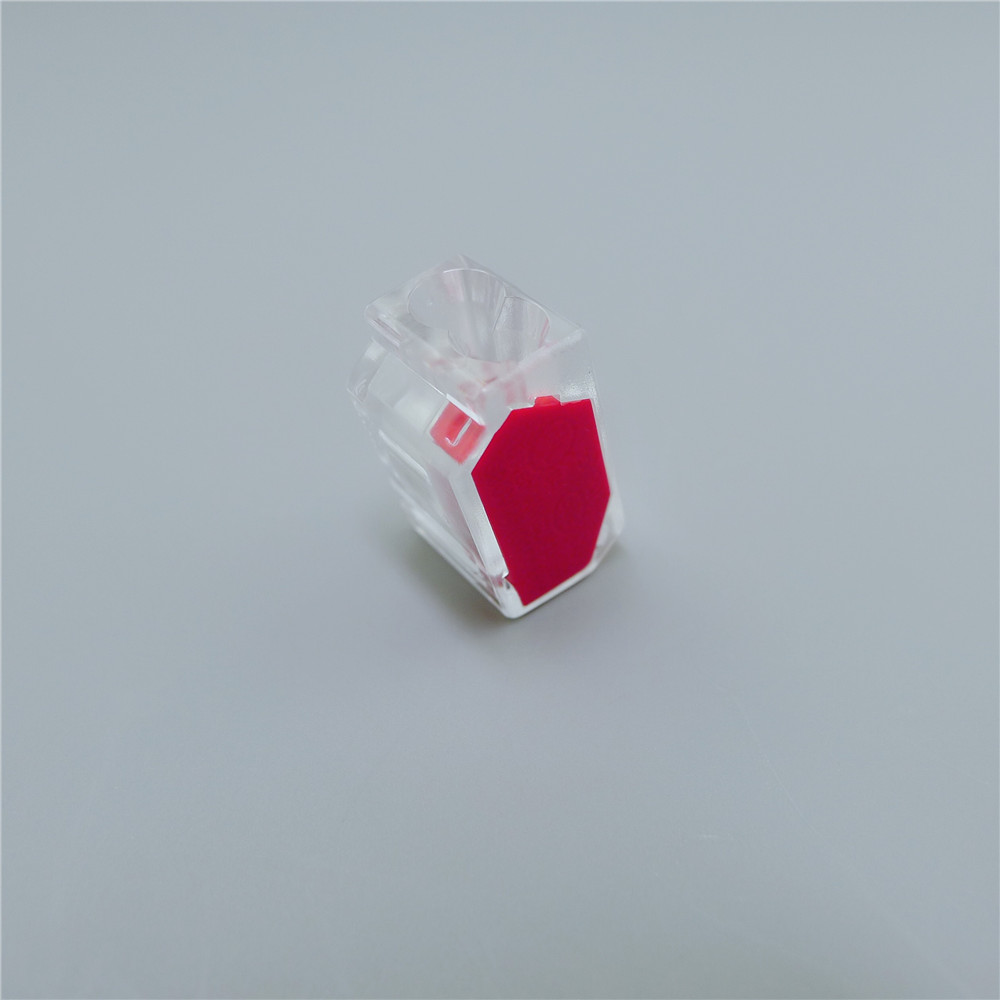

The BELEKS P01 series of screwless 8 pole push wire connectors simplifies the process of electrical connections by eliminating the need for screws. These wire harness connectors feature eight poles that can accommodate multiple wires simultaneously, making them suitable for a wide range of applications requiring multiple connections. The innovative push-in design not only speeds up installation, but also ensures a tight and secure fit that is resistant to external factors such as vibration. In addition, the high quality materials used in the manufacture of these quick wire connectors guarantee their durability and long-term performance. Overall, the BELEKS P01 Series is a reliable and efficient choice for all your electrical connection needs, whether you're working on a new project or replacing old connectors.
Materials:
Housing: polycarbonate & polypropylene(v2)
clamping unit: copper & stainless steel
cover color: black
Packing info:
50 pcs per bag, 20 bags per carton
carton size: 28.8×25.8×26.5 cm
net weight: 5kg
gross weight: 5.5kg
Dimensions
Specifications
| Item No. | P01-82 | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 450 | 600 | |
| Rated Current (A) | 24 | - | |
| Ambient Temperature | Polycarbonate / Polypropylene | T110 | 105℃ |
| Connection Data | |||
| IEC/EN | UL | ||
| Cross Section | Solid conductor | 0.5-2.5mm² | AWG 14-20 |
| Stranded conductor |
1.0-2.5mm²
(7 strands included)
|
AWG 14-18 | |
| Strip length (mm) | 13 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | single | ||
| Number of connection points | 8 | ||
| Materials | |||
| Insulation Materials | Designation | Polycarbonate, Polypropylene | |
| Flammability class | UL 94V-2 | ||
| Packing Quantity (pcs/carton) | |||
| 1000 | |||
