Product details

The equipment is mainly suitable for the block, porous brick and wall panel with the maximum hole rate, and can also take into account the extrusion molding of solid brick. The maximum width of mud extrusion can reach 1700mm, suitable for raw materials, clay, shale, coal gangue and other raw materials.

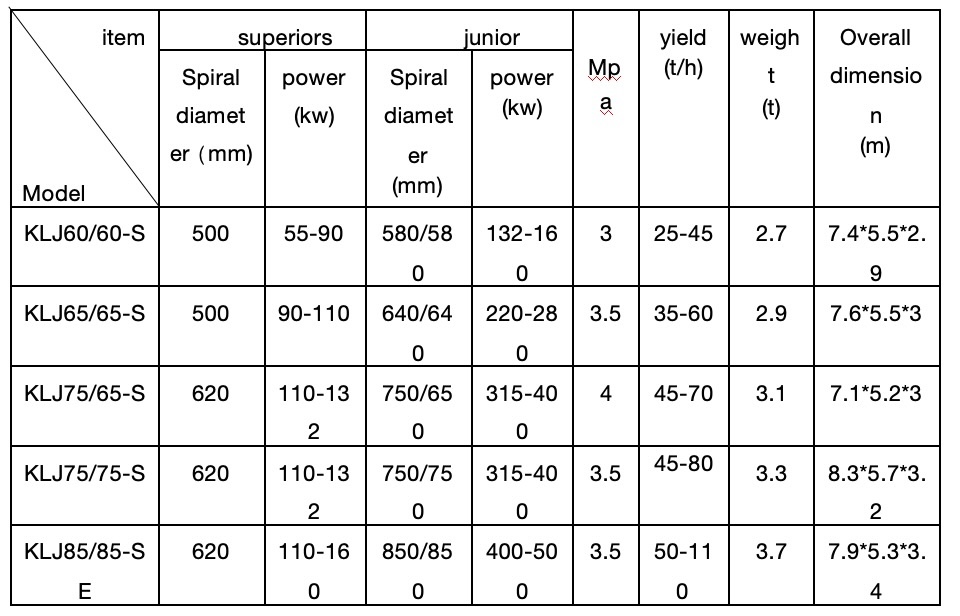

Technical parameter：

The main structural properties：

1.Two-body combination models are equipped with an exhaust system in which the upper mixer is connected to the lower extruder by a vacuum chamber

2.The upper mixer and the lower extruder are placed vertically

3.It can increase the effective area of the exhaust screen, improve the vacuum degree, and ensure that the raw material is not left in the vacuum chamber

4.The upper mixer is connected with the lower extruder through the vacuum chamber and has the following advantages:

(1)The correct parallel feeding to the extruder screw shaft is guaranteed and its effective length is guaranteed

(2)This reduces the rotational speed of the extruder, thereby reducing energy consumption and wear

(3)More uniform thrust applied to the material

(4)Ensure that raw materials do not remain in the vacuum chamber

5.Mixers and extruders are driven by individually configured gearboxes, and each operating unit is operated by pneumatic clutch

6.he equipment is all made of steel, with the best robustness and reliability

7.pulley equipped with rim for V-bel

8.When the equipment is running, the vacuum degree can be guaranteed to be more than 95%

9.Due to the good structure and the guarantee of the performance of each part, the extrusion pressure of the equipment can reach 3.5Mpa
