Mini Series VFD FV21

3 month ago

11 0

 8 month year

Product details

High Performance Universal Speed AC Drive

The variable frequency drive is a device that converts industrial frequency AC into variable AC, and achieves energy-saving speed regulation by changing the operating frequency of the motor. Its composition includes rectification, filtering, inversion and other parts, and has protection functions. The application of inverters can reduce power grid impact, save electricity, reduce voltage fluctuations, reduce wear and tear, and improve system stability.

Definition

The vfd is a device that converts industrial frequency AC into voltage or frequency variable AC, which is used to smoothly control the speed of the motor.

Composition

The inverter consists of rectification, filtering, inversion and other parts, among which the inverter circuit is the core.

Working principle

The frequency converter controls the motor by changing the operating frequency of the motor, and saves energy and speed regulation. Its core is IGBT.

Protection function

The inverter has protection functions such as overcurrent, overvoltage and overload.

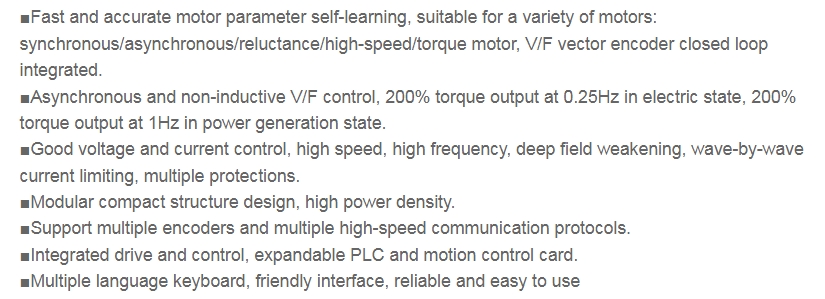

Features

V9 Series High Performance Universal Speed AC Drive

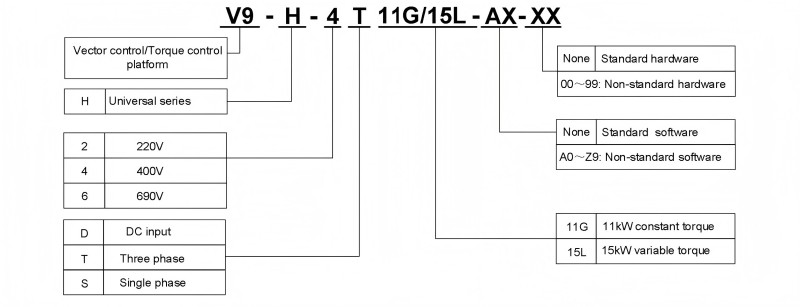

Model Explanation

Product Catalogue

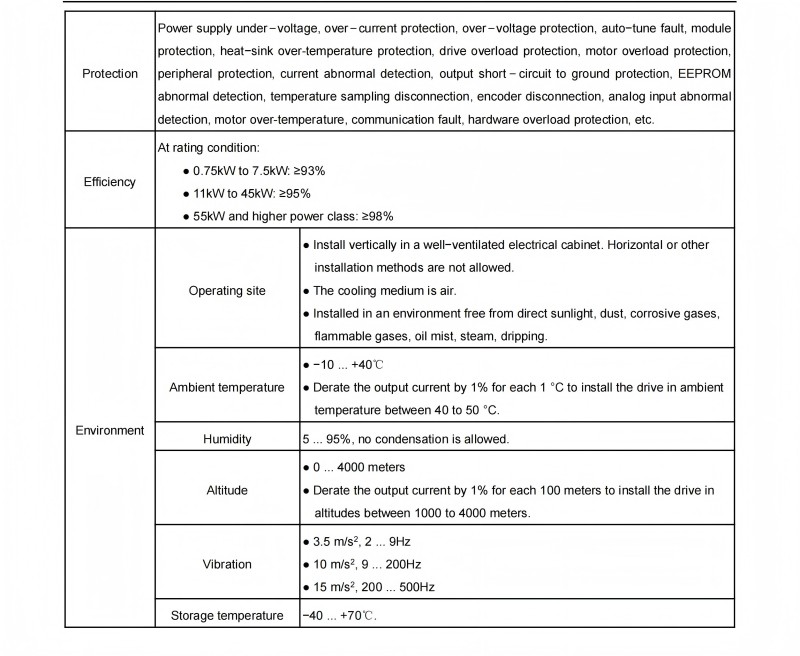

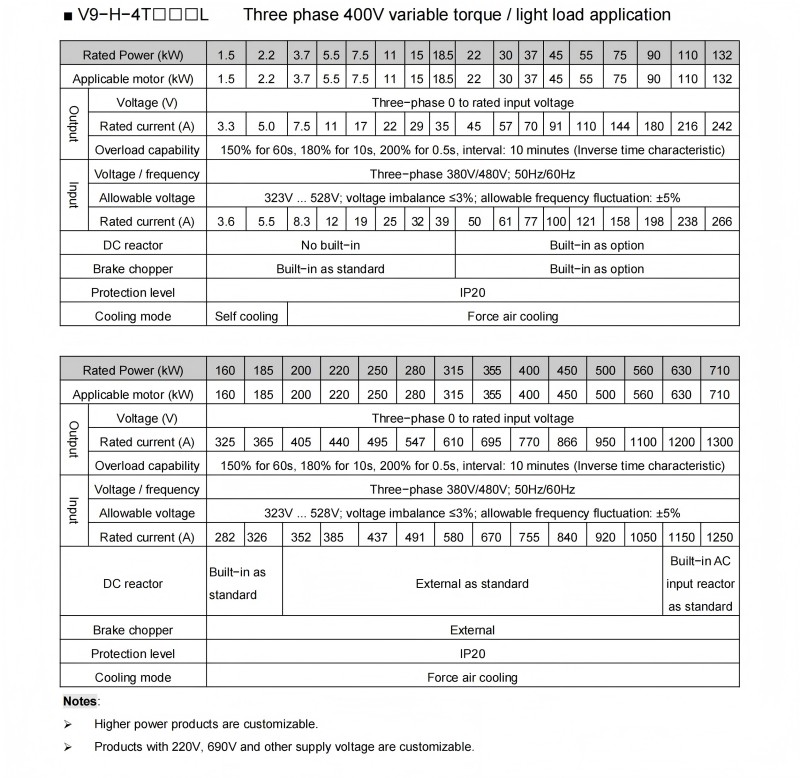

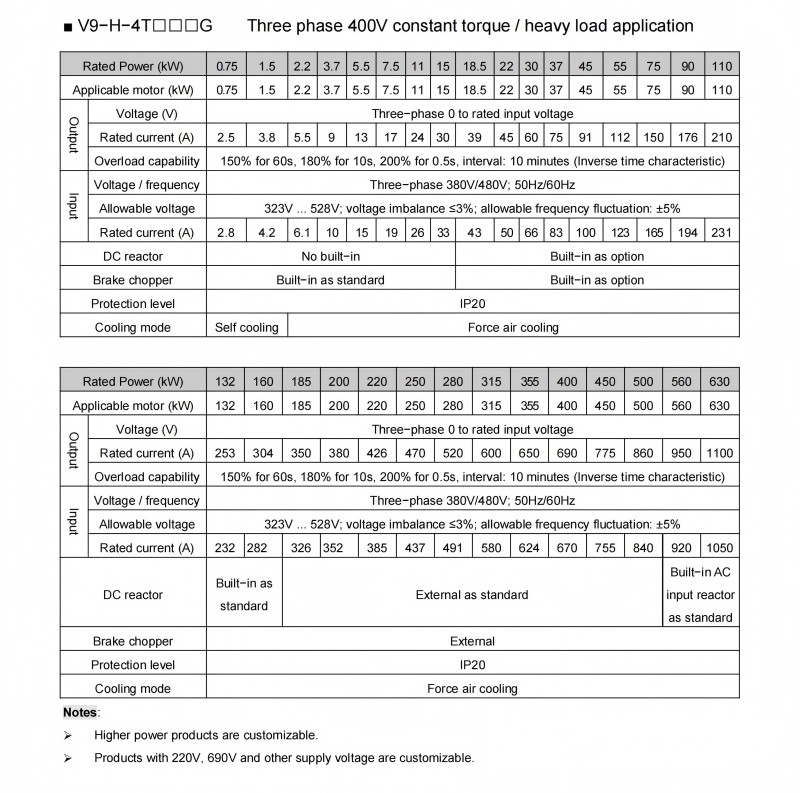

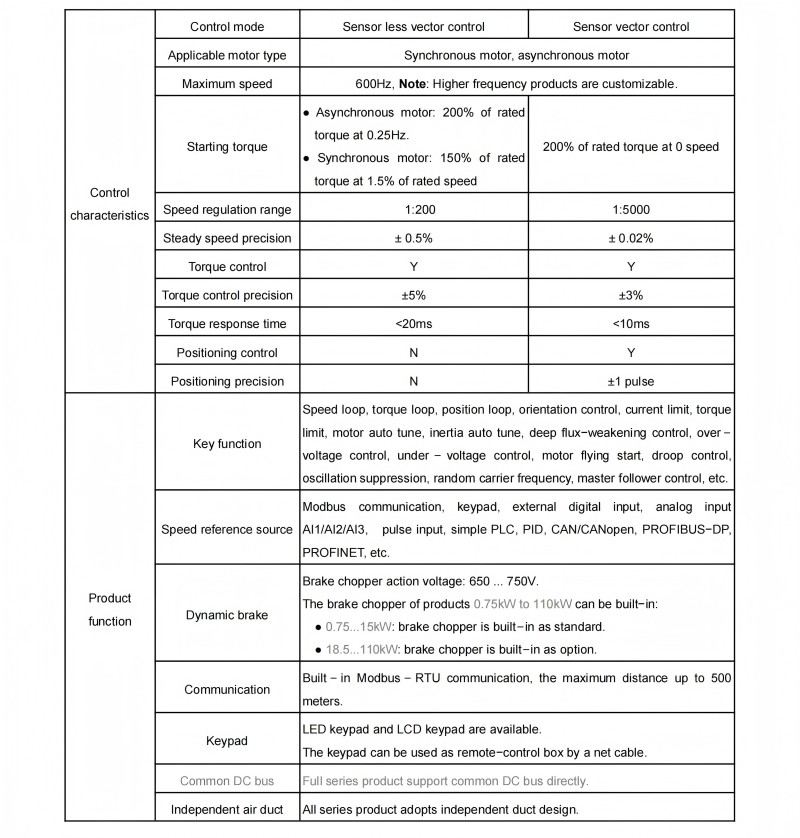

Technical Specification

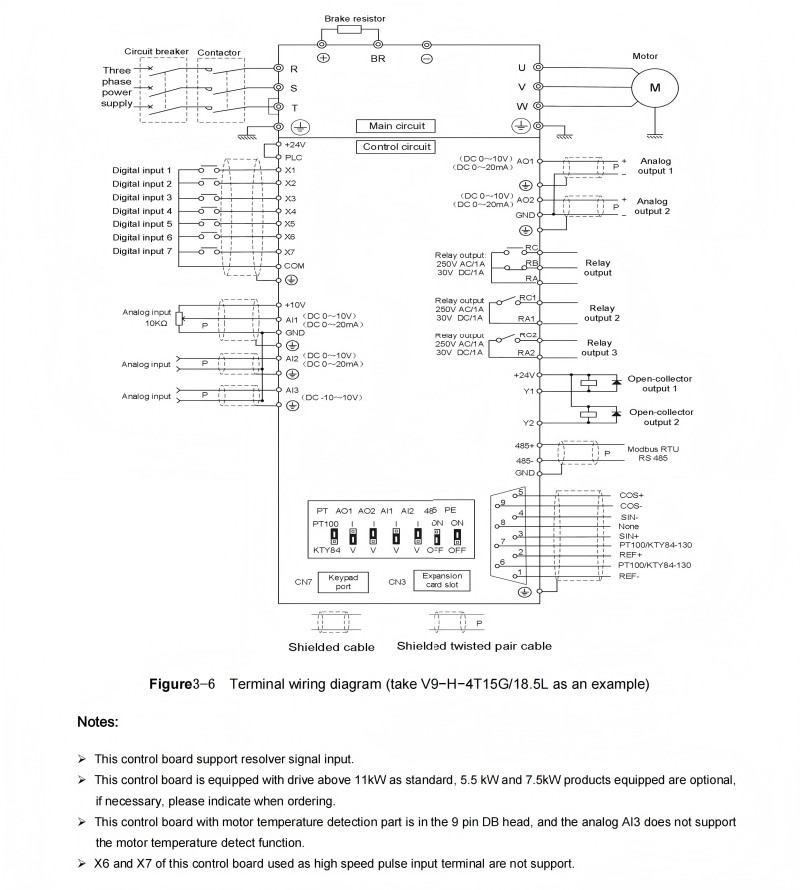

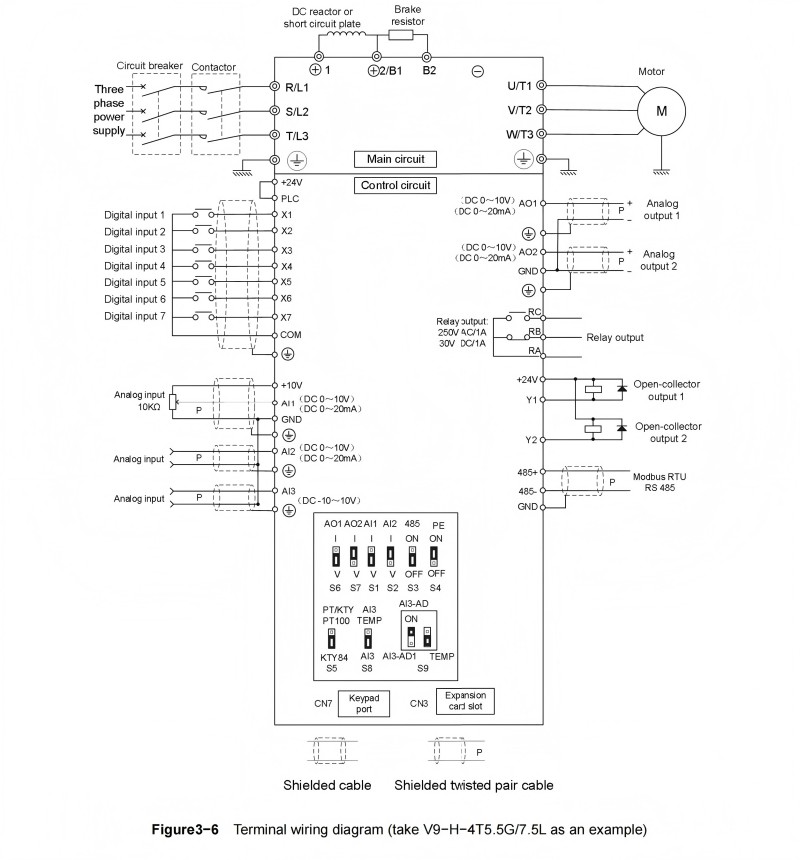

Terminal Wiring
