Medical hypotube laser cutting machines are specifically designed for processing thin-walled metal tubes in the medical field. They are widely used for cutting, drilling, and shaping flexible hypotubes, cardiovascular intervention catheters, minimally invasive surgical instruments, neurointerventional devices, and other medical tubing. These machines utilize high-energy-density laser beams to perform non-contact processing on thin-walled metal or polymer tubes. By precisely controlling laser parameters (power, frequency, pulse width), they achieve micron-level cutting accuracy.

Advantages of Medical Hypotube Laser Cutting Machines

Hypotube laser cutting machines employ linear motor drives with positioning accuracy under ±1μm and a minimum kerf width of 10–30μm. Equipped with high-resolution CCD or laser sensors for real-time tube position correction, they offer laser cutting, drilling, grooving, and other precision machining capabilities. The machines deliver high processing accuracy, smooth burr-free cut surfaces, and a small heat-affected zone. They are compatible with materials such as stainless steel, nitinol, titanium alloys, cobalt-chromium alloys, PEEK, and PTFE.

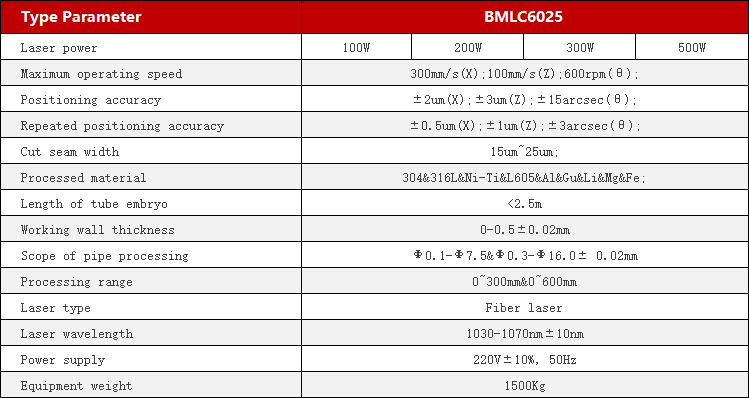

Parameters of Medical Hypotube Laser Cutting Machines

Applications of Medical Hypotube Laser Cutting Machines

These machines are widely used for laser micro-processing of flexible hypotubes, spiral tubes, spring tubes, medical catheters, vascular stents, endoscopic snake bones, and other types of precision thin-walled metal tubing.

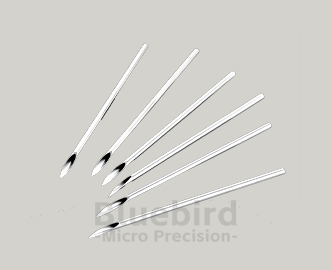

Sample Display of Laser-Cut Hypotubes

Precision metal flexible tube laser cutting f
