8-LOCK High-Speed Slitting Machine for Large & Small Rolls
Max. 1000m adhesive tape production with non-stop automatic roll flipping
Equipped with a 10kg magnetic powder clutch for better tension release during large-roll tape production.
The equipment is mainly suitable for efficient and convenient production of all kinds of transparent sealing tapes and printed sealing tapes,The gear package is equipped with 8 locks. Four-axis exchange can be used to produce tapes with a maximum diameter of 300MM and a diameter of 175MM. The winding is controlled by magnetic powder clutch, which is convenient to adjust, and it is suitable for the production of tapes with different winding diameters.
The main functions of the equipment:
1. High efficiency and non-stop winding shaft of 1000M tape.
2. Touch screen simple setting control.
3. Swing to remove waste edge.
4.4 Female coil to remove waste edge once.
5. Increase the precision stability rack.
6.200 m/min high speed strip.
7. Wuxi MiG servo motor roll.
8. Automatic labeling without stopping.
9. Optical control precision meter.
10. Synchronous belt drive of the whole machine.
11. PLC automatic tension control.
12. 10KG magnetic powder brake.
13.10KG magnetic powder clutch.
Gear Bag
|

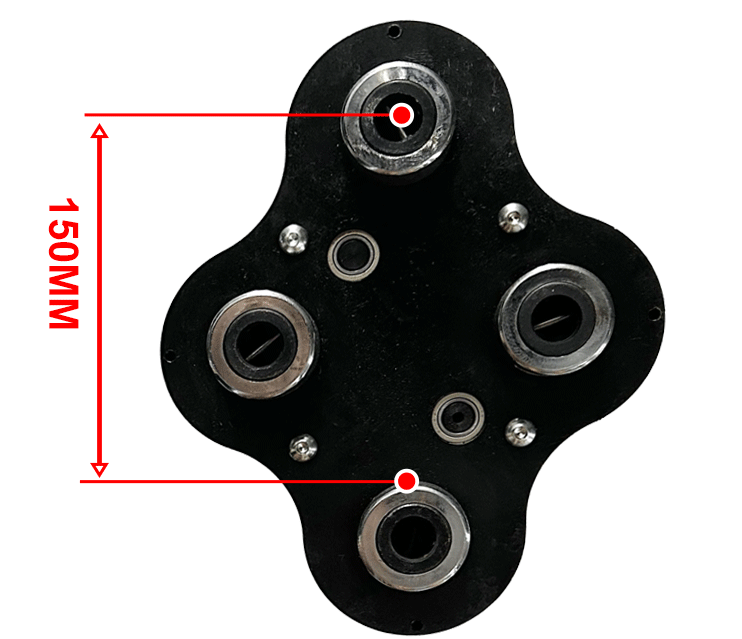

When using large shafts to achieve automatic rollover around exchange, tape can be made with a maximum diameter of 300MM.
52 um material can be rolled up to 1000M
|
 |
|

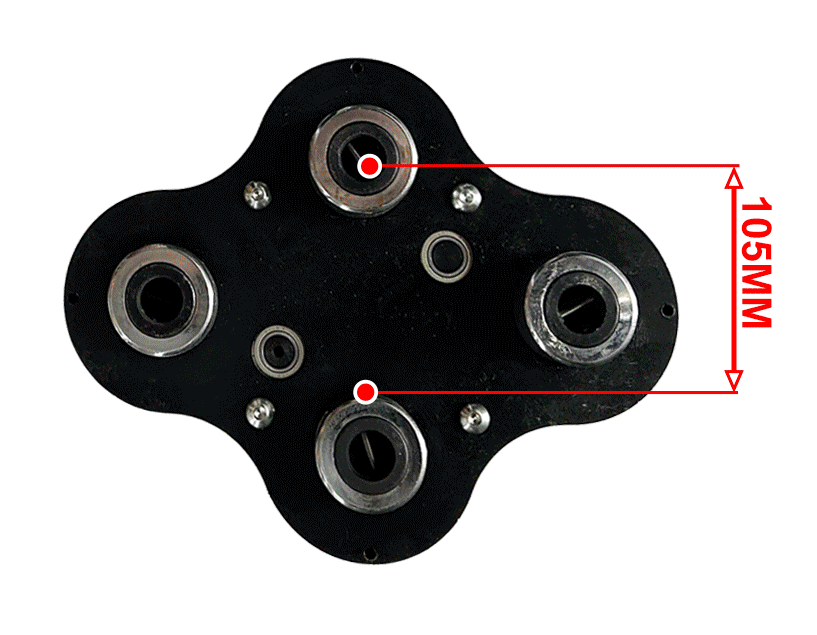

When using small shafts to achieveautomatic rollover around exchangetape can be made with a maximum diameter of 175MM.
52 μm material can be rolled up to 300M
Because the spacing between the two axes is small, the small tape smoothing is more beautiful.
|
 |
|

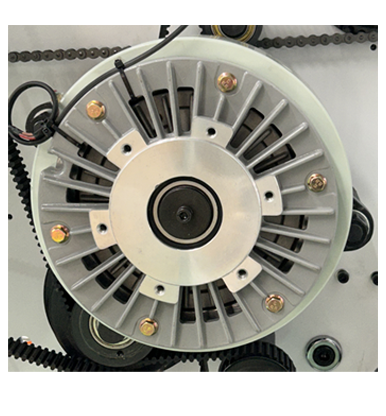

Equipped with 10 kg magnetic powder clutch
When doing large roll, PLC automatically controlthe release of tension, to avoid tape deformationdue to excessive tension
|
 |
| Specification |
Measurement
L*W*H
|
N.W. | Air Pressure | Source | Power |
| 1300MM | 2700*1500*1500MM | 1650KG | 0.63mpa | 4W 3P 380V/50HZ | 4kw |
| Max Slitting Speed | Min Slitting Width | Biggest Rewinding Diameter | Biggest Unrewinding Diameter |
| 240M/MIn | 12MM | 300MM | 700MM |
