DPST Momentary High Current Screw Terminal Toggle Switch

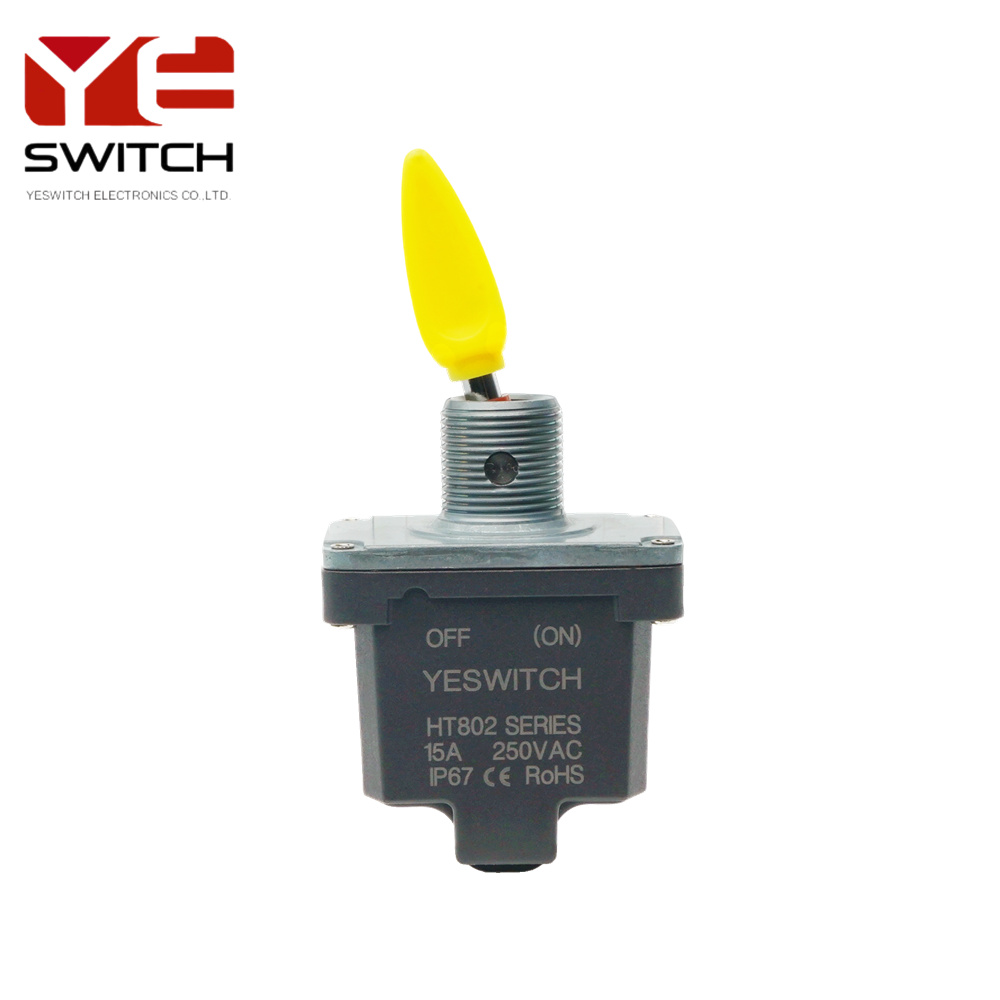

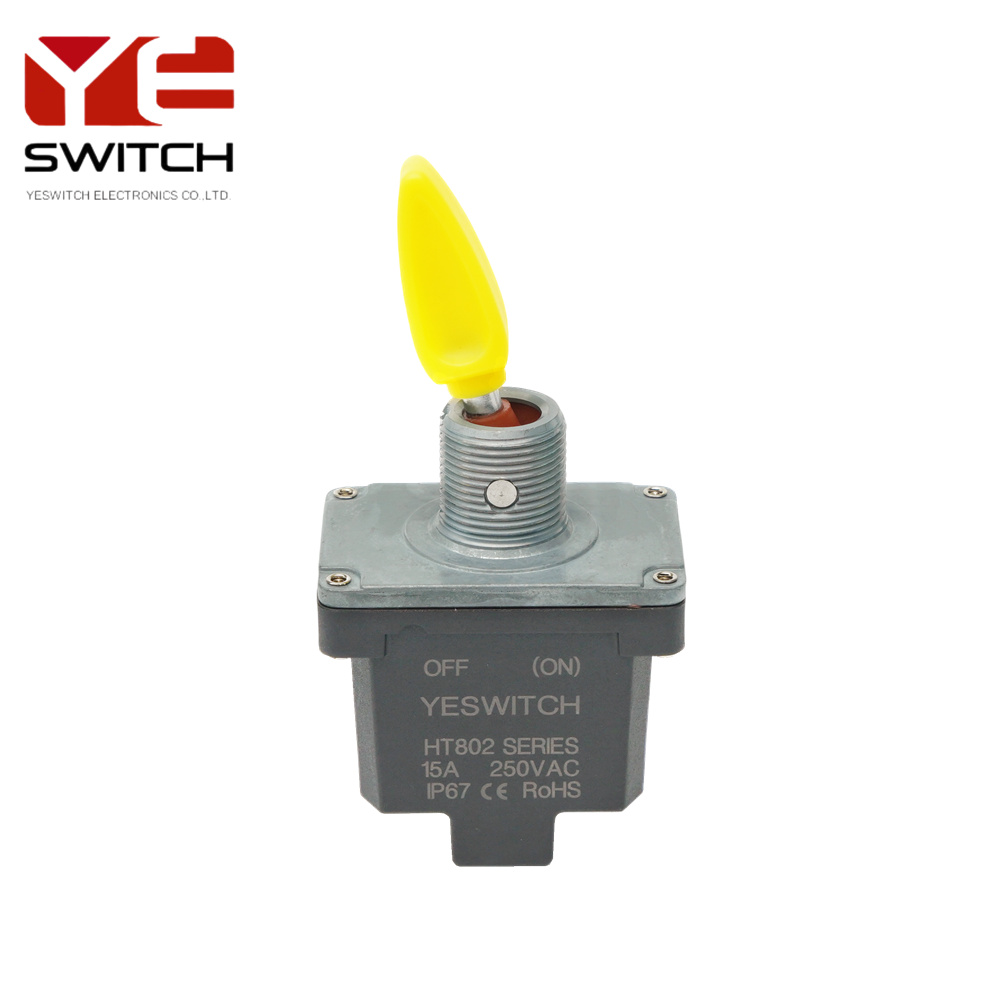

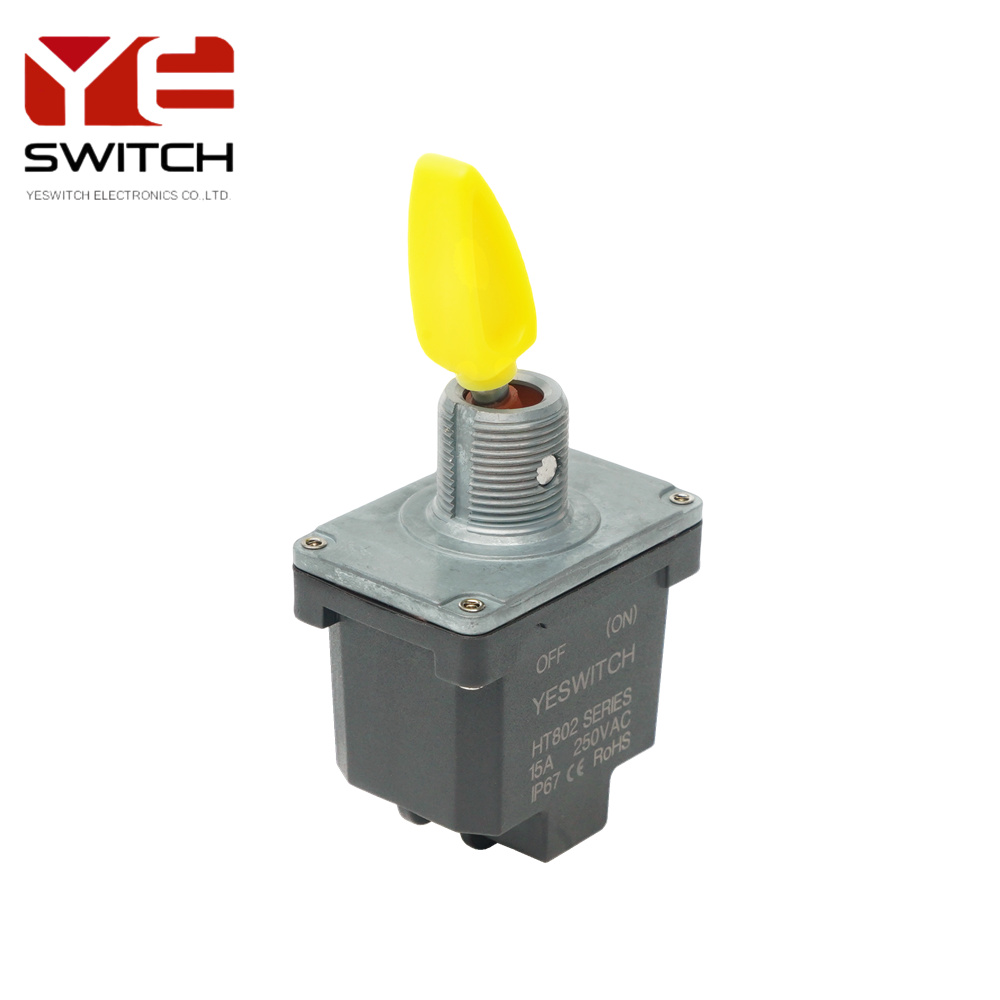

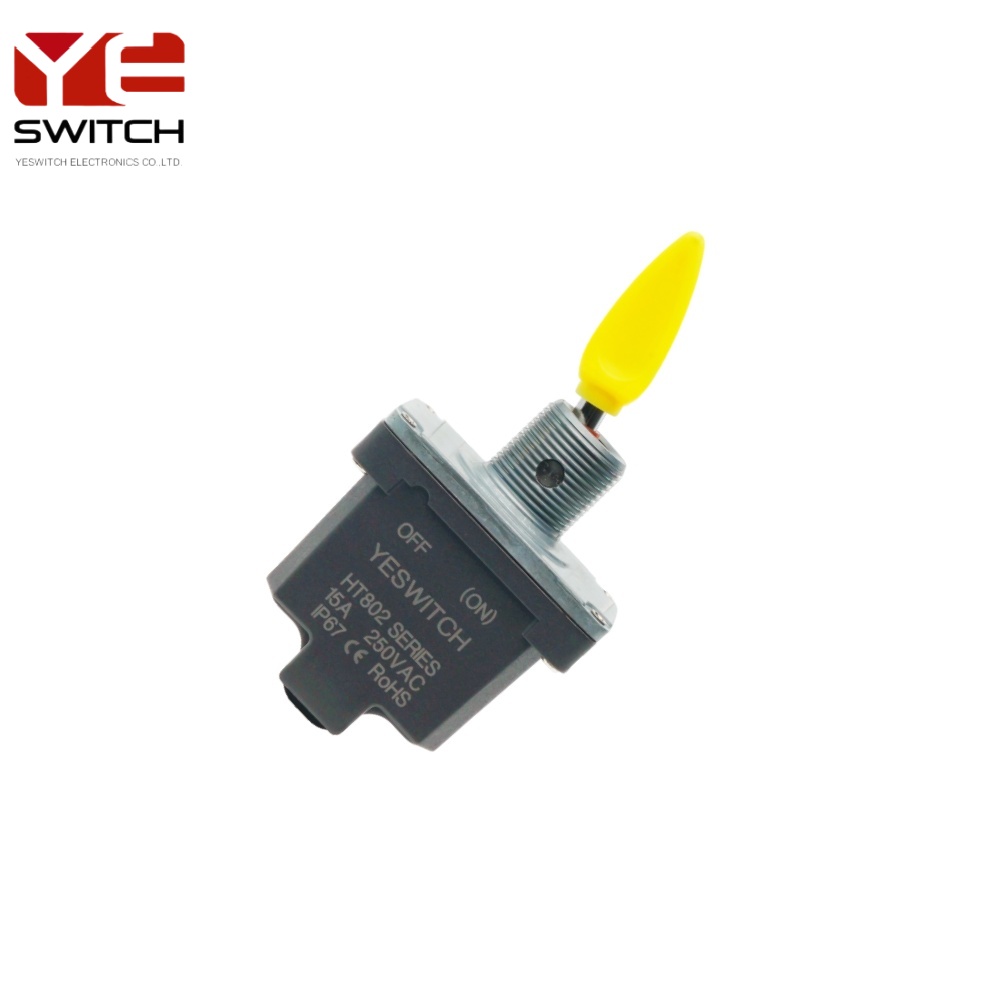

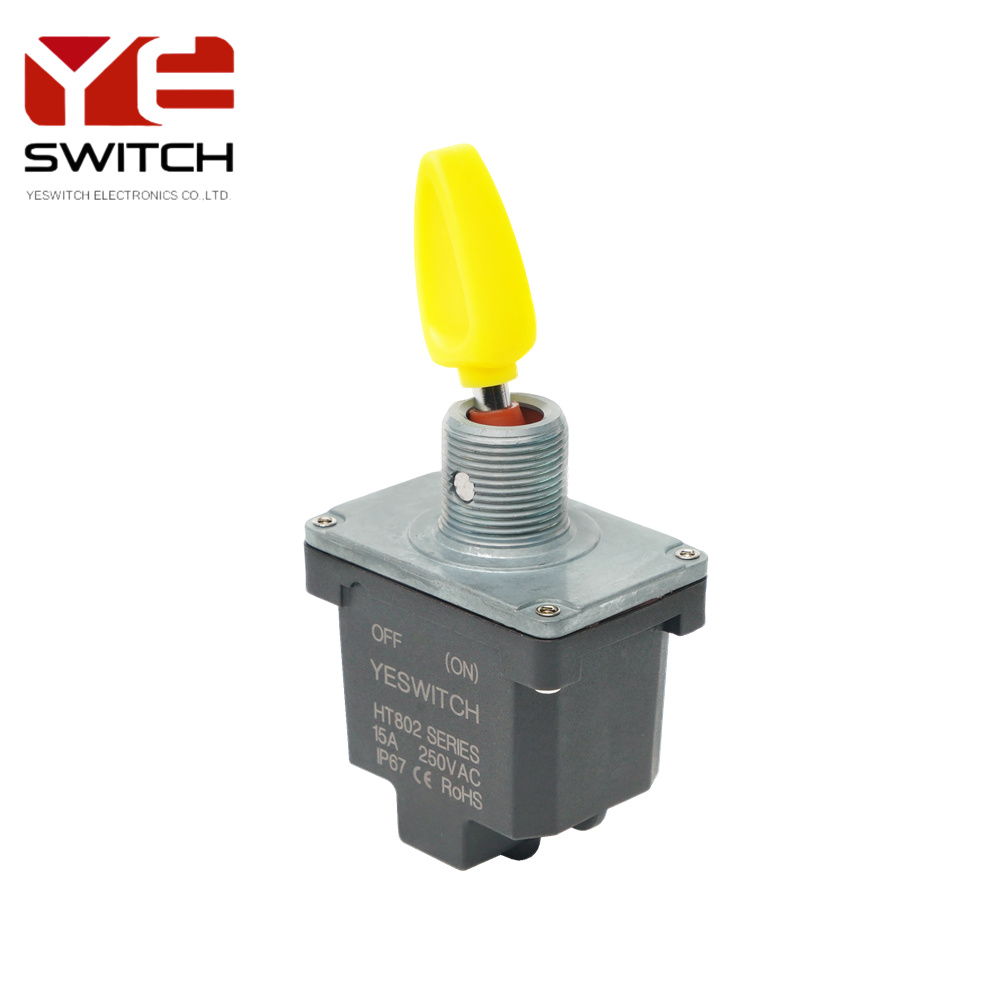

The YESWITCH HT802 Series DPST OFF-(ON) Industrial Toggle Switch is a robust,high-performance electrical component engineered to meet the rigorous demands of heavy-duty industrial and machinery applications.Designed with durability,safety,and ease of installation in mind,this switch combines advanced engineering with user-centric features to ensure reliable operation in harsh environments.

Key Features

DPST Configuration (Double Pole Single Throw)

The switch features a DPST (Double Pole Single Throw) design,enabling simultaneous control of two independent circuits with a single toggle action.This configuration is ideal for applications requiring synchronized power management or redundancy.

High-Current Capacity

Engineered for high-current applications, the HT802 supports continuous current ratings up to 16A at 125/250VAC,making it suitable for heavy-duty machinery,industrial equipment,and high-power systems.

Screw Terminal Connections

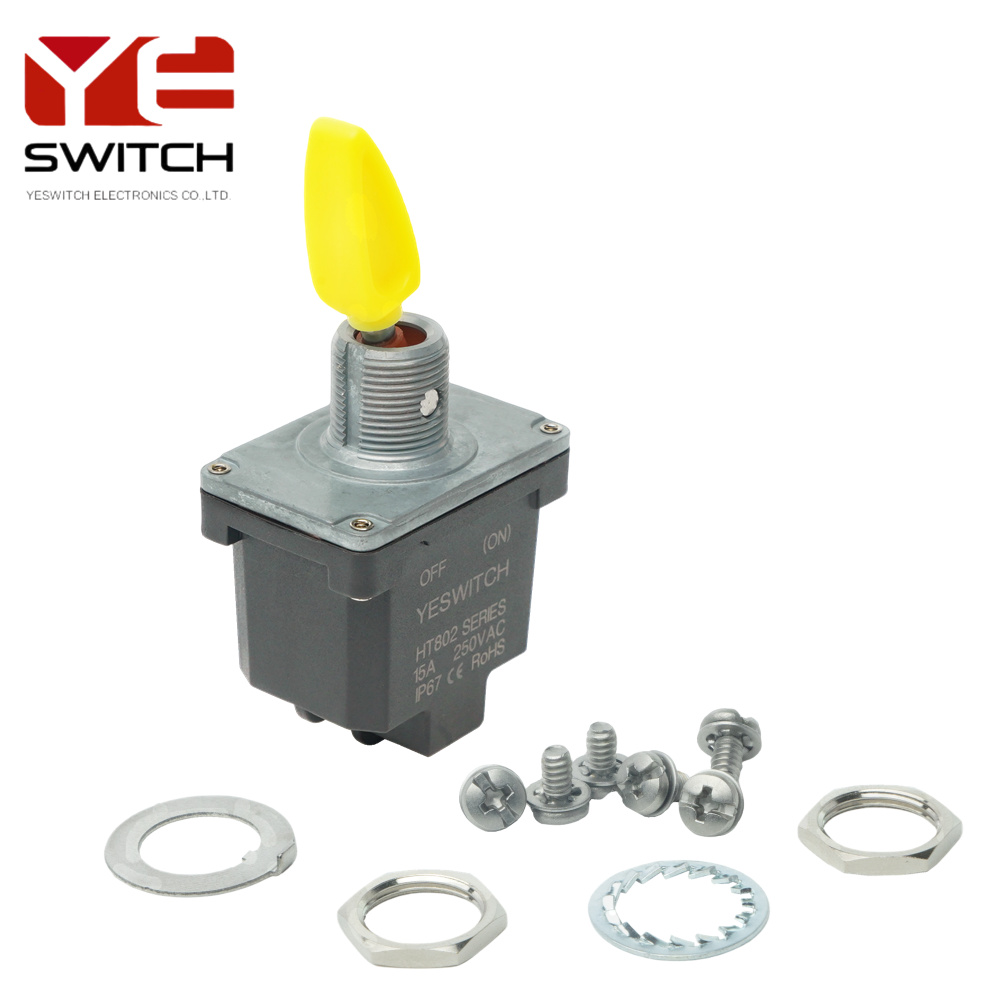

Equipped with heavy-duty screw terminals,the switch ensures secure and reliable wiring connections.The terminals accommodate large-gauge wires,simplifying installation in high-vibration environments where loose connections could pose risks.

Durable Construction

Round Metal Toggle Lever:A copper alloy toggle lever provides exceptional mechanical strength and resistance to wear, ensuring long-term durability.

Sealed Design:Optional IP68-rated models are available for dustproof and water-resistant performance in outdoor or washdown environments.

OFF-(ON) Momentary Action

The OFF-(ON) momentary function allows the switch to return to the OFF position automatically when released,providing enhanced safety for applications requiring temporary activation (e.g.,emergency stops,intermittent operations).

Wide Operating Temperature Range

Operates reliably in temperatures ranging from -40 to +85 degrees,ensuring functionality in extreme cold or heat.

Applications

The HT802 Series is tailored for high-power,rugged environments,including:

Industrial Machinery: CNC machines,hydraulic systems,conveyor belts.

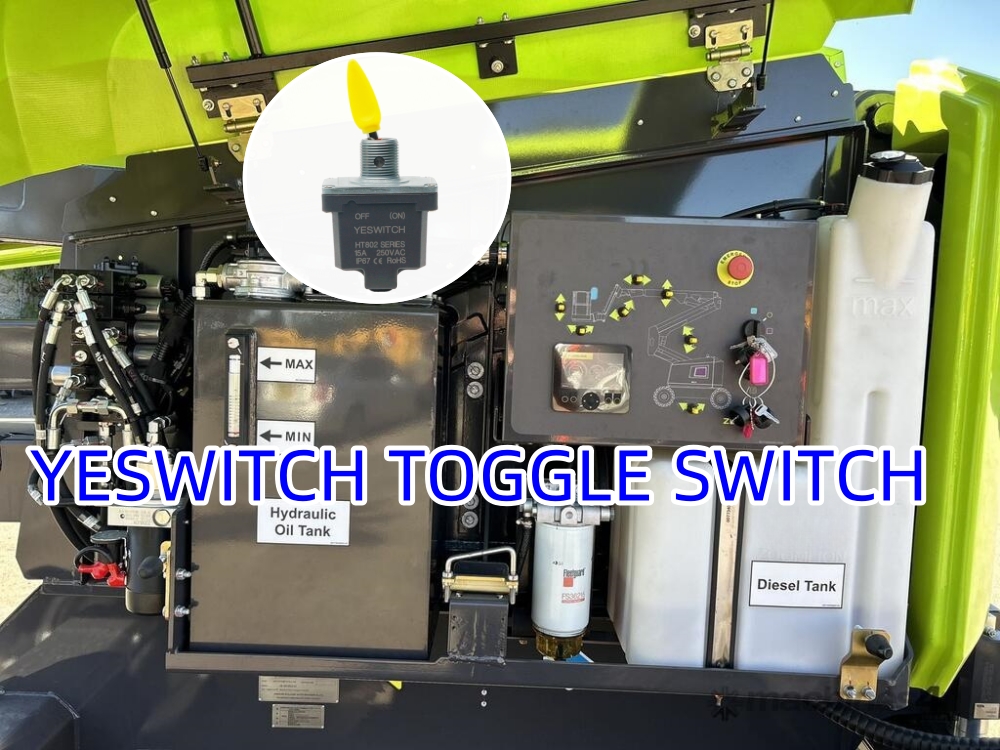

Agriculture & Construction:Tractors,excavators,heavy-duty vehicles.

Power Distribution:Motor control panels,generator switches.

Marine & Transportation:Boats,railway equipment.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
