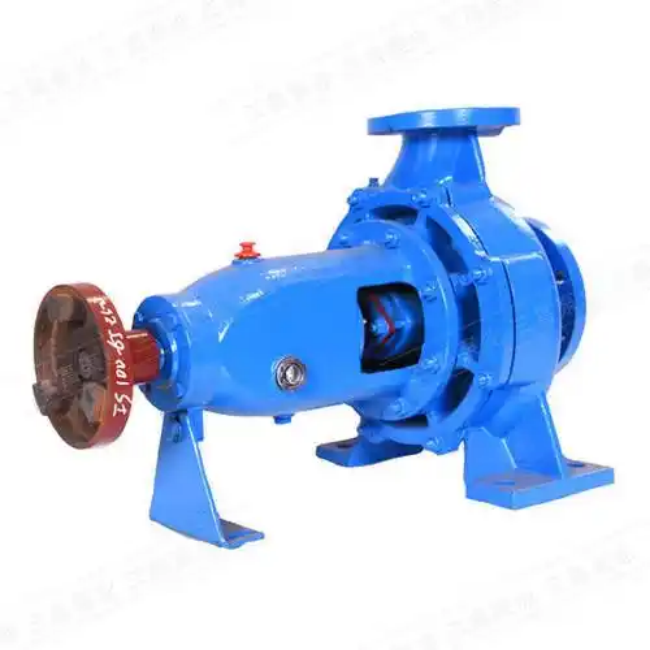

Centrifugal Pump With Shaft Seal

Centrifugal Pump With Shaft Seal

2 week ago

7 0

NINGBO KLAUS UNION CO.,LTD

 4 week year

Product details

key facts

Design according to DIN EN ISO 2858 / 5199.

Modular System.

Shaft Seal Packing; Single or Double Mechanical Seal (also available as a Cartridge Unit).

Heating for Casing and Casing Cover available.

Mechanical Seal-Cover available.

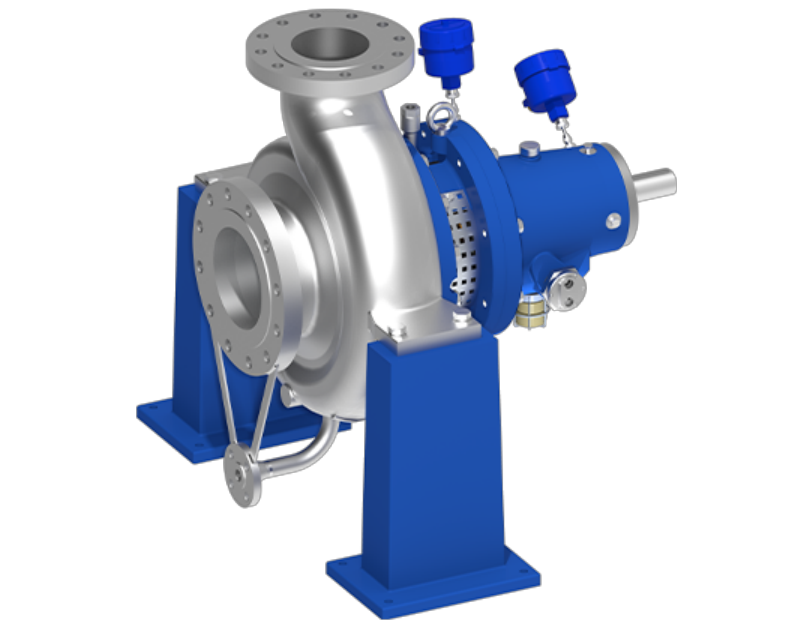

DESIGN

 Single-Stage Centrifugal Pump.

 Shaft Sealing Space for Installation of Mechanical Seals according to DIN EN 12756 or Stuffing Box Packings Unit).

 Heating for Casing and Casing Cover available.

 Mechanical Seal-Cover available.

 Bearing Bracket with Oil-Lubricated Anti Friction Bearings.

Heated pumpH1 and/or H2

The pumps are outfitted with a heat jacket and pump casing (H1) and or a heat jacket in the bearing lantern (H2). Both heat jackets can be realized either separately or in conjunction with a bypass line. The heat jackets in the standard construction are rated for operating pressure of 16 bar at 200 Â°C (steam) or 6 bar at 350 Â°C. The heat jackets can also be used for cooling.

Inducer J

Inducers are often used in cases where the installation’s NPSH values are extremely low. Inducers substantially reduce pump NPSH throughout the installation without altering pump characteristics. Inducer J can be retrofitted on existing pumps, in most cases with only a minimum amount of pump modification.

Mixers, centrifugal pumps, and propeller pumps are essential devices in fluid handling. Mixers blend liquids or solids uniformly, while centrifugal pumps use rotational energy to move fluids efficiently. Propeller pumps, with their axial flow design, are ideal for high-flow, low-pressure applications. Each serves distinct purposes in industries like water treatment, chemical processing, and agriculture. Their versatility and reliability make them indispensable for fluid management systems.
