High Clarity Polycarbonate Sheet Material

Product Description

PC sheet is a high-performance engineering plastic sheet made mainly from polycarbonate (PC) resin through extrusion, co extrusion, lamination and other processes. It has excellent impact resistance, optical transparency, weather resistance, and processing flexibility, and is widely used in fields such as construction, transportation, electronics, and industrial protection.

Classification

PC boards can be classified into the following main types based on their structure, function, and purpose:

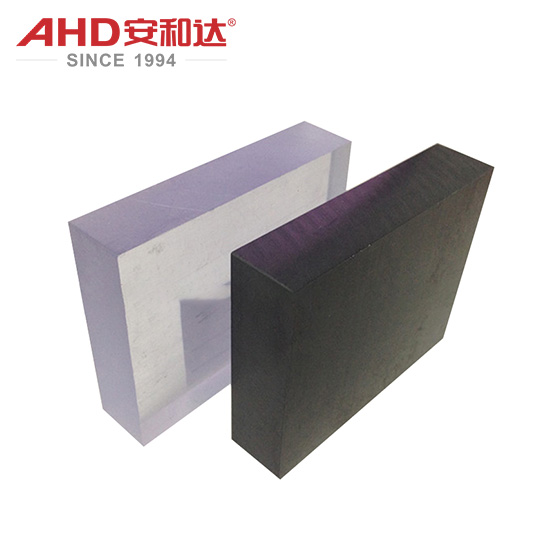

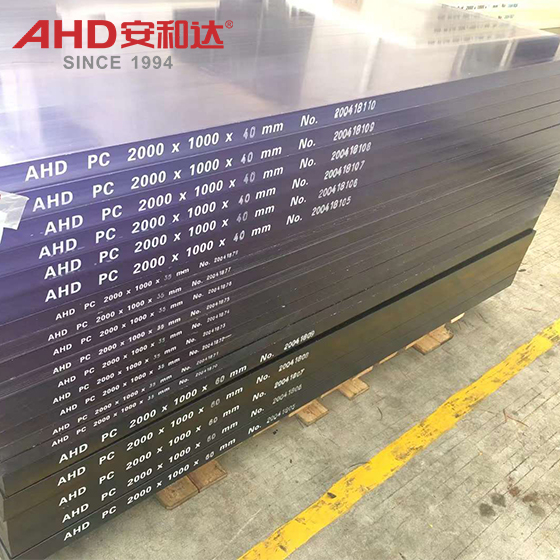

(1) Solid board

Thickness range: 1mm~20mm

Features: High transparency (89% transmittance), ultra-high impact resistance (200 times that of glass), wide temperature resistance range (-40 ℃~+120 ℃).

Application: Explosion proof shield, machine protective cover, safety window, etc.

(2) Hollow board

Thickness range: 4mm~40mm

Structure: Multi layer hollow design (2-5 layers), lightweight (50% lighter than solid board), thermal insulation (thermal conductivity of 0.16 W/m · K).

Application: Building skylights, greenhouses, sound barriers, etc.

(3) Wave board

Thickness range: 0.8mm~2mm

Features: Wave shaped structure, enhanced mechanical strength, suitable for large-span roofs (such as carports and factories).

Application: Industrial plants, agricultural greenhouses, canopies, etc.

(4) Special function board

UV protection board: surface co extruded UV layer, resistant to UV aging (for outdoor use for more than 10 years).

Antistatic plate: Surface resistance of 10 ⁶~10 ⁹ Ω, used for electronic equipment protection.

Flame retardant board: compliant with UL 94 V-0 standard, suitable for places with strict fire protection requirements.

Matte/diffuser plate: optimizes light scattering, used for LED lampshades and advertising light boxes.

clear polycarbonate sheet

Polycarbonate sheet finds extensive use in a variety of sectors.

In architecture and construction, it is commonly used for skylights, windows, and roofing systems due to its ability to allow natural light while providing insulation.

In the automotive industry, it is utilized for windshields, side windows, and interior components because of its impact resistance and lightweight properties.

In the manufacturing sector, polycarbonate sheet is employed for protective enclosures, signage, and machine guards.

For commercial and retail spaces, clear polycarbonate sheet is often used for display cases, partitions, and protective barriers.

Performance	Parameters/Characteristics
Mechanical properties:	Impact strength ≥ 800 J/m (ASTM D256), bending strength ≥ 90 MPa (ISO 178)
Optical performance:	Light transmittance of 89% (transparent plate), haze<1% (optical grade)
Thermal performance:	Hot deformation temperature (HDT) 132 ℃ (1.82MPa), long-term use temperature -40 ℃~+120 ℃
Weather resistance:	double-sided UV coating, yellowing after QUV 4000 hours test Δ Y<5
Flame retardancy:	UL 94 V-0/V-2, oxygen index ≥ 25% (ASTM D2863)
Processing performance:	Cold bending (minimum radius=150 x thickness), CNC cutting, hot forming, ultrasonic welding

pc sheets

Advantages:

Ultra high impact resistance: 200 times that of glass and 30 times that of acrylic, suitable for explosion-proof and anti smashing scenarios.
Lightweight: Density of 1.2 g/cm ³, 50% lighter than glass, easy to install and transport.
Strong weather resistance: The UV protective layer ensures an outdoor service life of over 10 years.
Energy saving and environmental protection: Hollow structure reduces building energy consumption and is 100% recyclable (compliant with RoHS/REACH).
Flexible design: customizable colors (RAL/Pantone), textures (frosted, embossed), and light transmittance.
