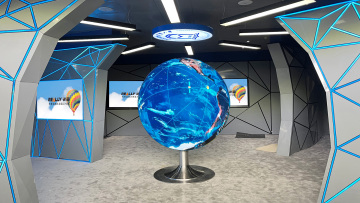

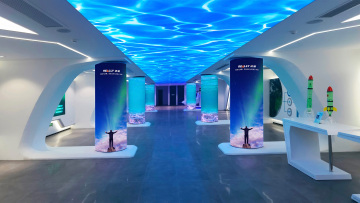

Cylindrical LED Display Panel

4 month ago

15 0

 12 month year

Product details

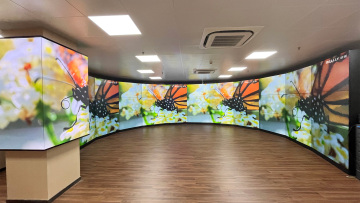

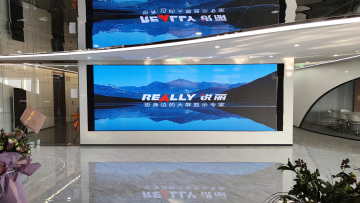

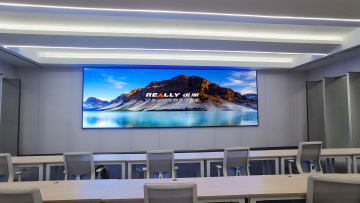

Multi Splicing Ultra Narrow Bezel LCD Video Wall connects multiple independent LCD screens together through specific technologies and devices to form a large, continuous display screen. Users can choose different splicing methods based on their actual needs and site conditions, such as 2x2, 3x3, 4x4, etc., to meet the requirements for large-sized displays.

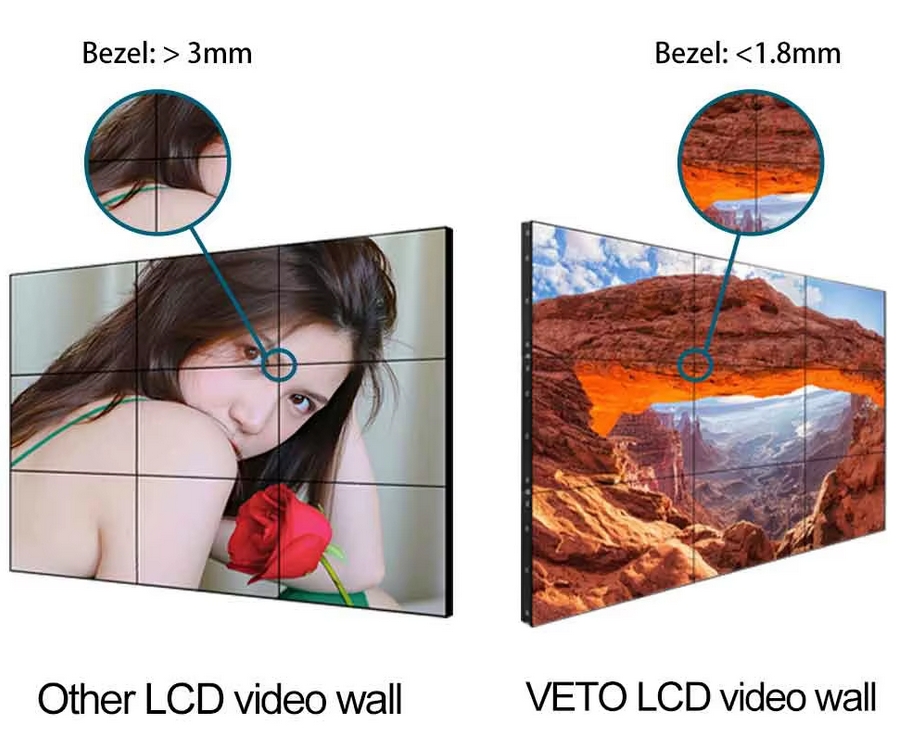

Ultra narrow borders: The borders between LCD screens are very narrow, which can minimize the visual fragmentation at the joint after splicing, making the entire video wall look more coherent and unified, presenting a better visual effect.

Panel	ITEM NO.	LD490DUN-THC1
	LCD SIZE	49"
	LCD Supplier	LG Display CO.,Ltd.
	Backlight	LED
	Resolution	1920 x 1080 (pixels)
	Brightness (typ)/(min)	500cd/m² nits (typ.)
	Contrast Ratio (typ)	1400：1 (typ.)
	Response time (ms)	8ms (typ.)
	Pixel Pitch	0.63(H)mm x 0.63(V)mm
	Frame frequency	60 Hz
	Viewing Angle	178°(H) / 178°(V)
	Lifetime(typ)/(min)	60,000 hrs (min.)
	Display area	1074.1(H)mm x 604.3(V)mm
	Color	1.67M
Power	Voltage	100 V ~ 240 V, 50-60 Hz
	Power consumption	≤180W
	Standby (Watt)	≤0.5W
T / H	Operating Temperature(℃)	0℃～60℃
	Storage Temperature(℃)	-10℃～70℃
	Storage Humidity	10%～90% RH Non-Condensing
	Operating Humidity	5～95% RH Non-Condensing
	Display Mode	Standard,Soft,User,Bright
	Using time(Hours/days)	24hours*7days
IN/OUT SINGNAL	CVBS input	*1
	HDMI input	*1
	DVI input	*1
	VGA input	*1
	RS232	Input: RS232 x1; Output: RS232 x2
Language	Outline size(WxHxD)	1077.58 * 607.8* 62.7 mm
	Appearance color	Black
	Casing material	Metal
	Bezel	3.5mm
Attachment	OSD	English / Chinese / Others
IN/OUT SINGNAL	Remote Controller	*1
	Cable	*1
	Certificate of quality	*1
	Instruction book	*1
	Warranty card	*1

Our company is committed to providing a diverse range of products and services, COB LED Screen,Mini LED Screen,LCD Video Wall,Indoor Digital Signage， Welcome to inquire!
