Product details

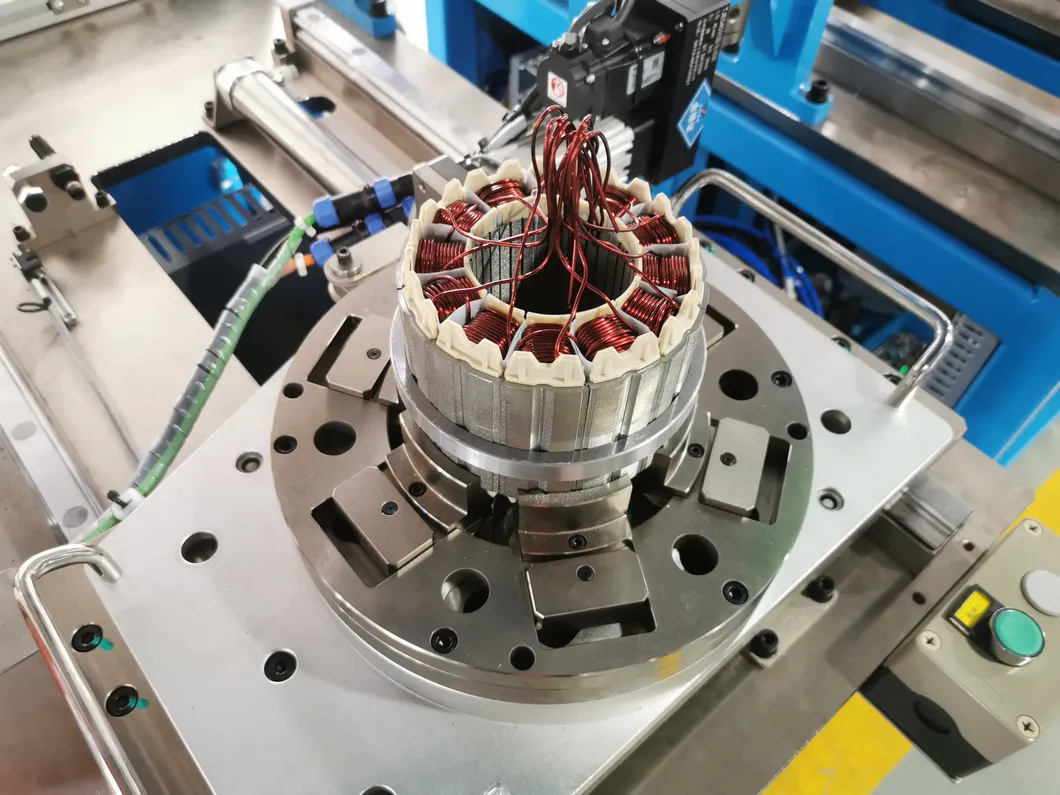

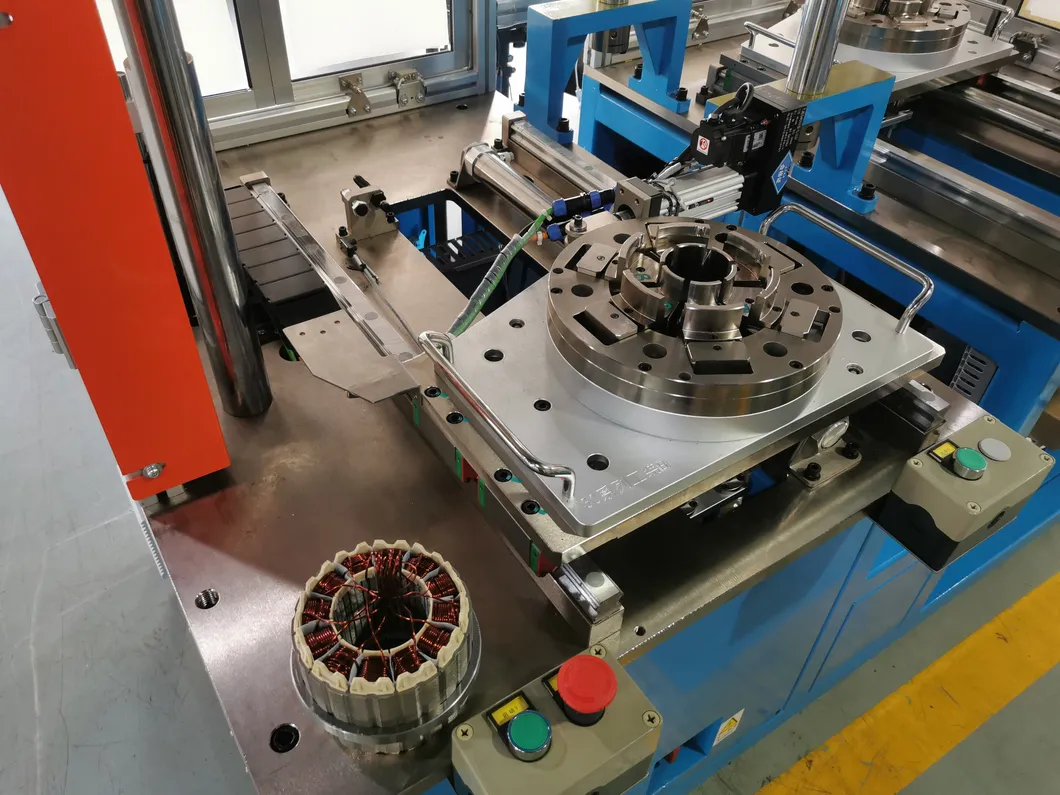

Double Station Stator Press Machine is a high-performance industrial equipment designed to efficiently press stators in two separate stations, offering increased productivity and precision. This advanced Double Station Press Machine is ideal for manufacturers involved in the production of electric motors, generators, and other electrical components. The Stator Round Press Machine is specifically engineered to handle round stator laminations, ensuring consistent quality and reliability throughout the manufacturing process. With its robust construction and user-friendly design, this machine is a valuable asset for any modern manufacturing facility.

The key features of the Double Station Stator Press Machine include dual pressing stations that allow for continuous operation, reducing downtime and improving overall efficiency. The machine is equipped with adjustable pressure settings, enabling users to customize the pressing force according to specific material requirements. Its compact design ensures easy integration into existing production lines, while its durable build guarantees long-term performance and minimal maintenance. Additionally, the Stator Round Press Machine incorporates safety mechanisms to protect both the operator and the equipment during operation.

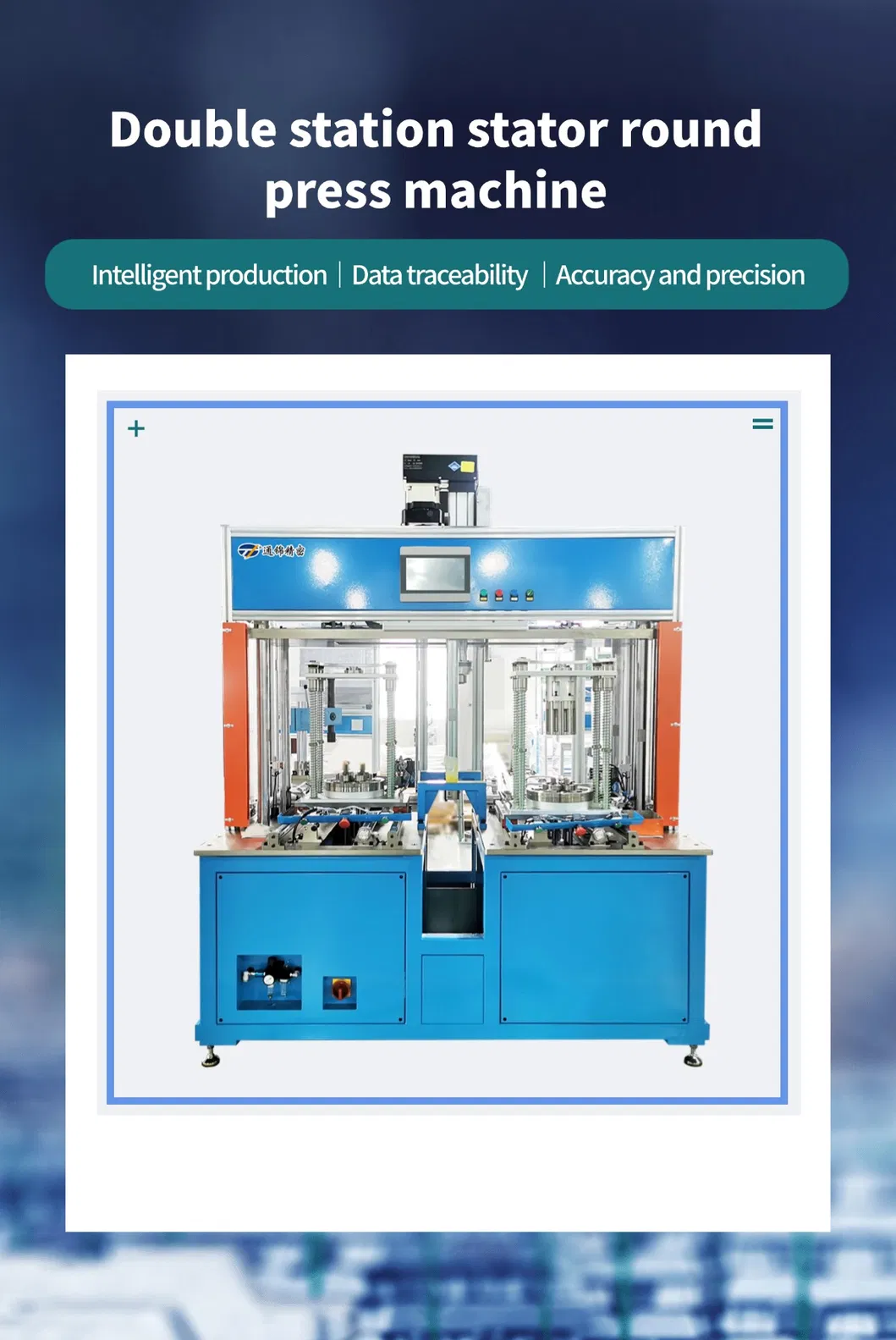

Double Station Stator Round Press Machine

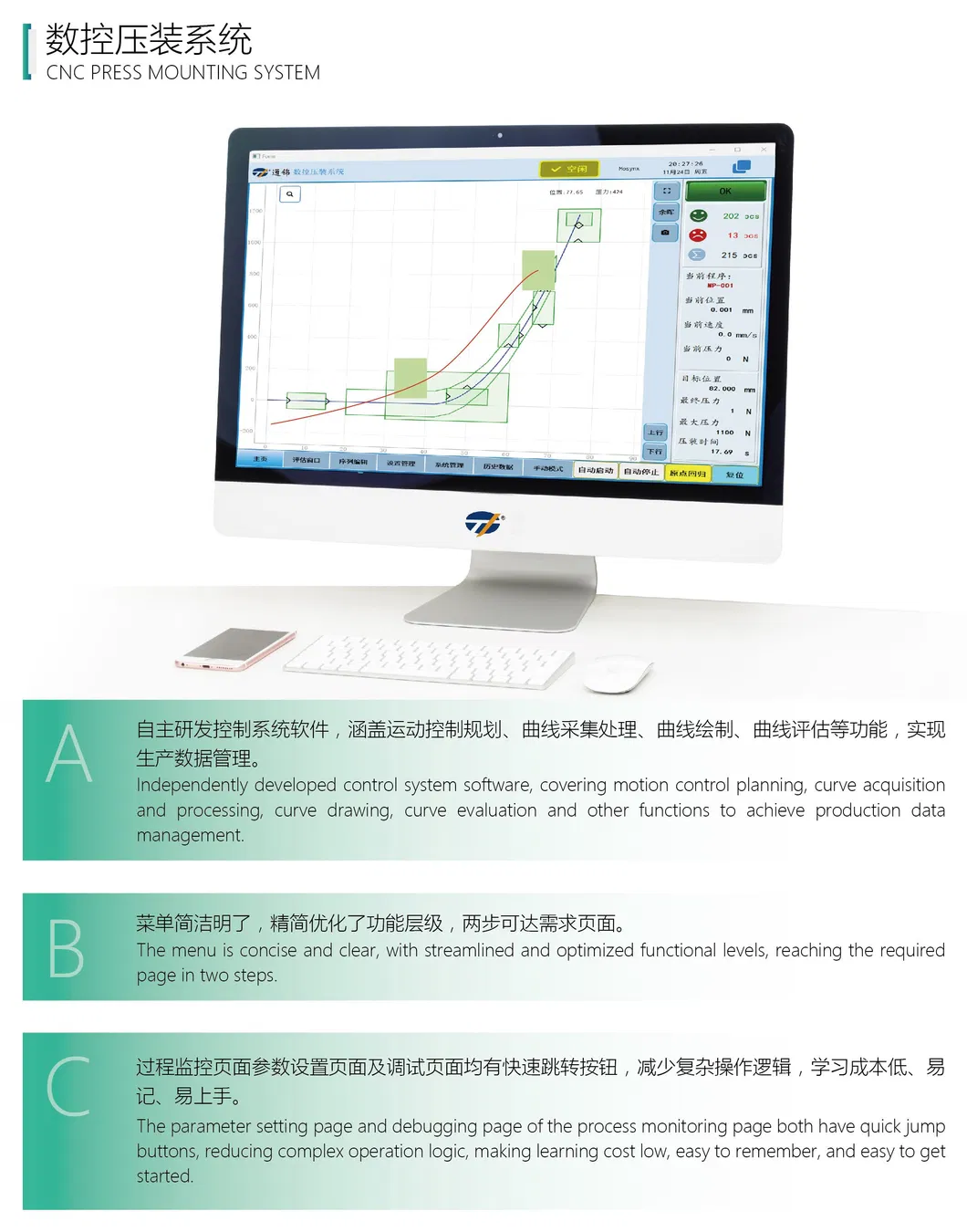

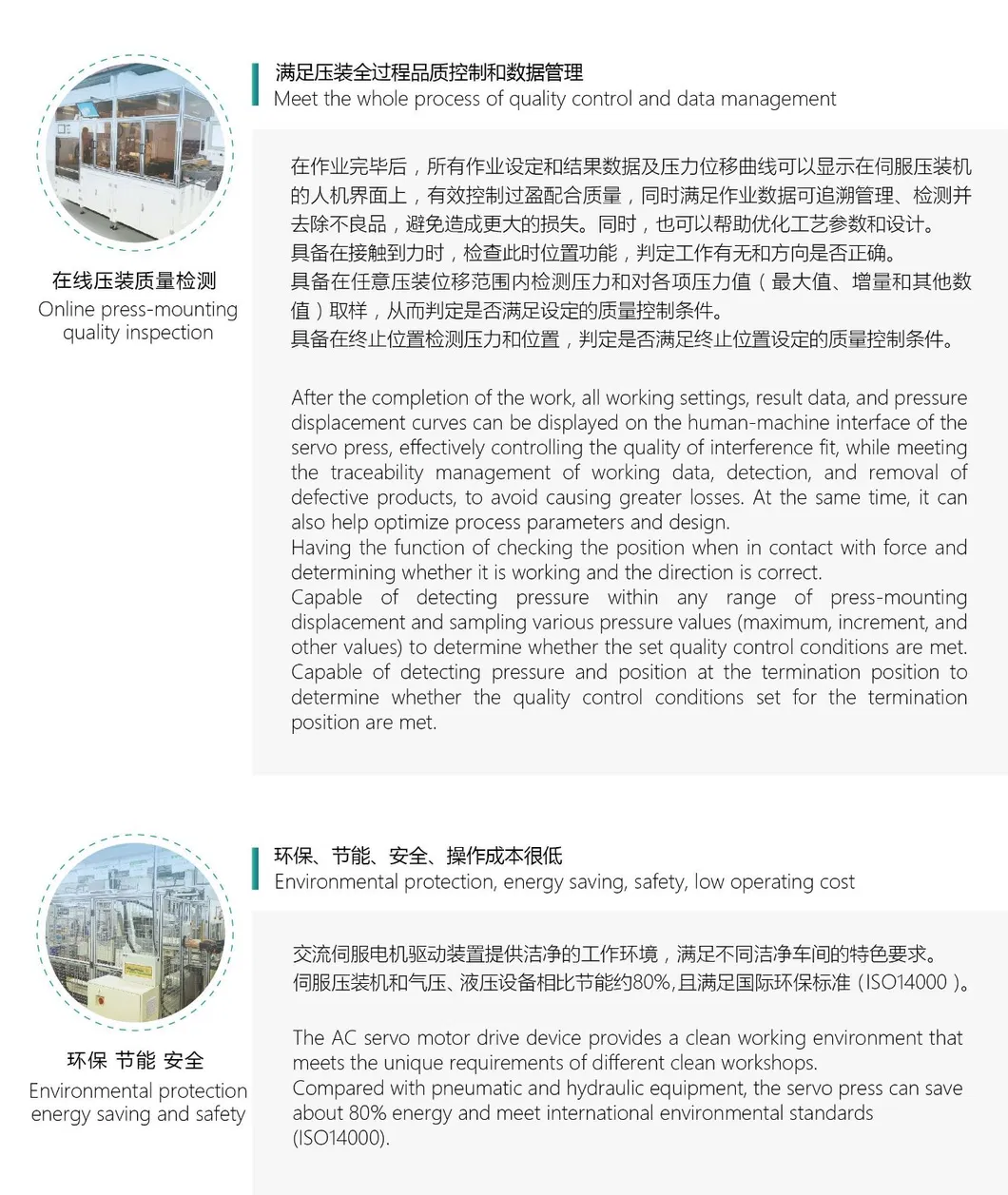

In the process of pressing the product, Tongjin servo press machine displays the current pressing position and pressing force in real time, and judges whether the interference is appropriate in time and accurately. At the same time, it displays the pressing curve of the entire force and displacement, which solves the disadvantages of traditional presses that can only be pressed and cannot be detected, and the low efficiency of the testing machine cannot be mass-produced.
The servo press machine can accurately test the pressure according to the set pressing depth, which can compensate for the working dimensional tolerance and ensure the final assembly precision. At the same time, the pressure and
displacement quality judgment area can be set, and online testing can ensure that the product is 100% qualified when press-fit.

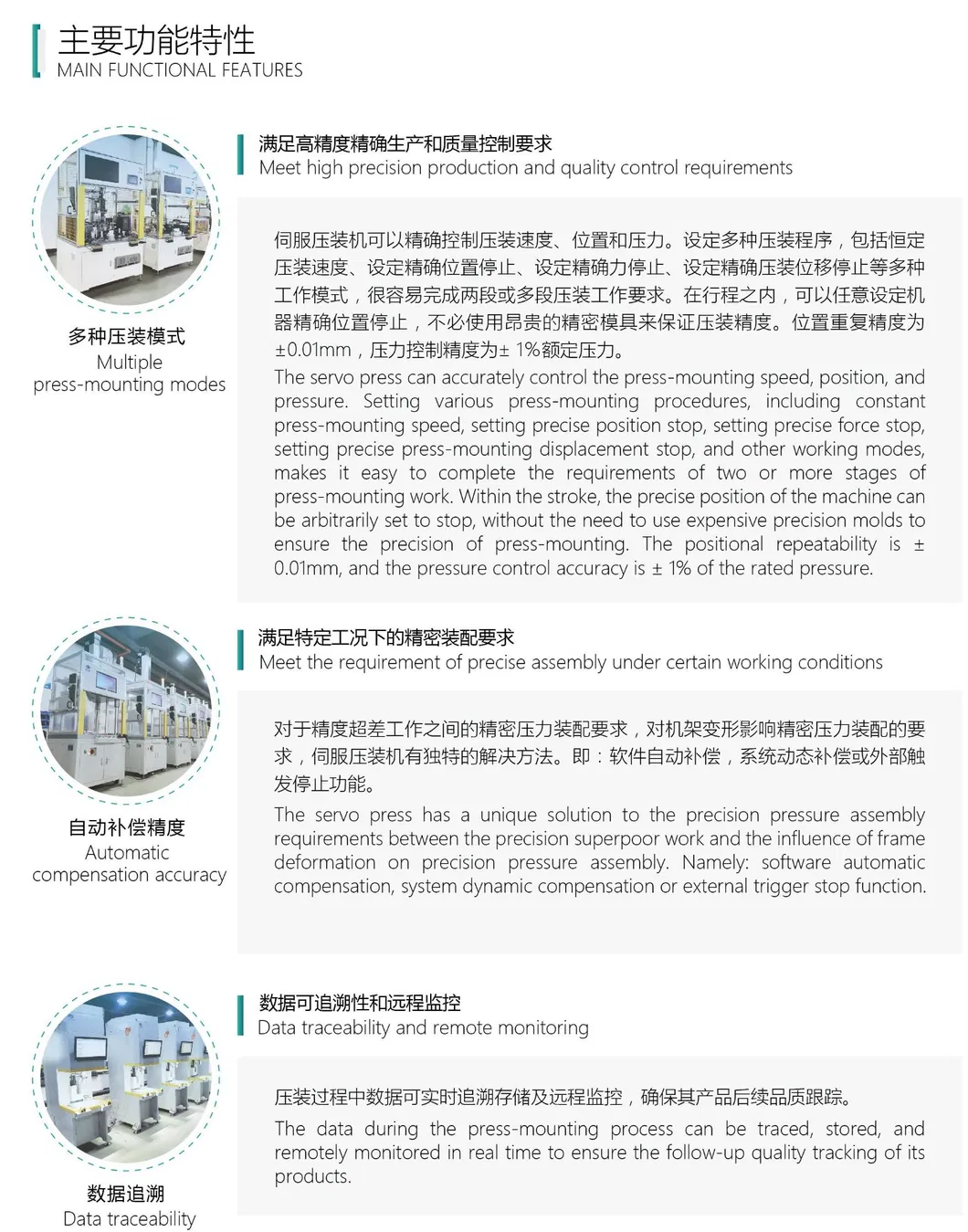

The servo press machine can accurately control the press-fit speed, position,and pressure. Setting various press-fit procedures, including constant press-fit speed, setting precise position stop, setting precise force stop, setting precise press-fit displacement stop, and other working modes, makes it easy to complete the requirements of two or more stages of press-fit work. Within the stroke, the precise position of the machine can be arbitrarily set to stop, without the need to use expensive precision molds to ensure the precision of press-fit.
The positional repeatability is ± 0.01mm, and the pressure control accuracy is ±1% of the rated pressure.

SERVO PRESS MACHINE PRODUCT DEFINITION CODE

TJ	The abbreviation for Tongjin
SP	The abbreviation for Servo Press Machine
10	The actual tonnage 01:100KG 05:500KG 10:1T 100:10T 200:20T
C	Servo press machine type C:C-Type F:Four-column D:Desktop
T	Servo press machine control form T:Touch screen Computer

For example: in principle, the C-type servo press machine is no more than 5
tons, and the desktop type servo press is no more than 2 tons.
TJ-sp-10ct means "C-type 1 ton touch screen servo press machine";
TJ-sp-80fc means "Four-column type 8 tons computer servo press machine";
TJ-sp-05dt means "Desktop type 500Kg touch screen servo press machine";
TJ-sp-10cc means " C-type 1 ton computer servo press machine".

Double Station Stator Round Press Machine

Double Station Stator Round Press Machine

Our company has successfully independently developed independent products such as Tongjin brand servo electric cylinders, intelligent servo press fit machines,Linear Electric Actuators,Heavy Duty Electric Cylinders,Servo Press Machine, etc., combined with six joint robots to achieve automated, safe, and unmanned intelligent assembly green unmanned production lines, providing a one-stop solution for intelligent assembly automation systems in factories.
