Product details

TJEN Light Load Series is a cutting-edge linear actuator system designed for precision, durability, and performance. Crafted from high-strength aluminum alloy, this product combines lightweight construction with modular design principles, ensuring an optimal balance between aesthetics and functionality. The TJEN Light Load Series is ideal for applications that demand high dynamic response, reliability, and adaptability in various environments.

With a thrust range spanning from 0.1kN to 50kN, the TJEN Light Load Series offers exceptional versatility. It supports effective strokes of up to 2 meters, making it suitable for both short and long travel requirements. The system can operate at speeds of up to 1250mm/s, delivering rapid movement while maintaining accuracy and stability. Its high acceleration and rigidity ensure smooth operation even under heavy loads, while its impact resistance and long service life make it a reliable choice for demanding industrial settings.

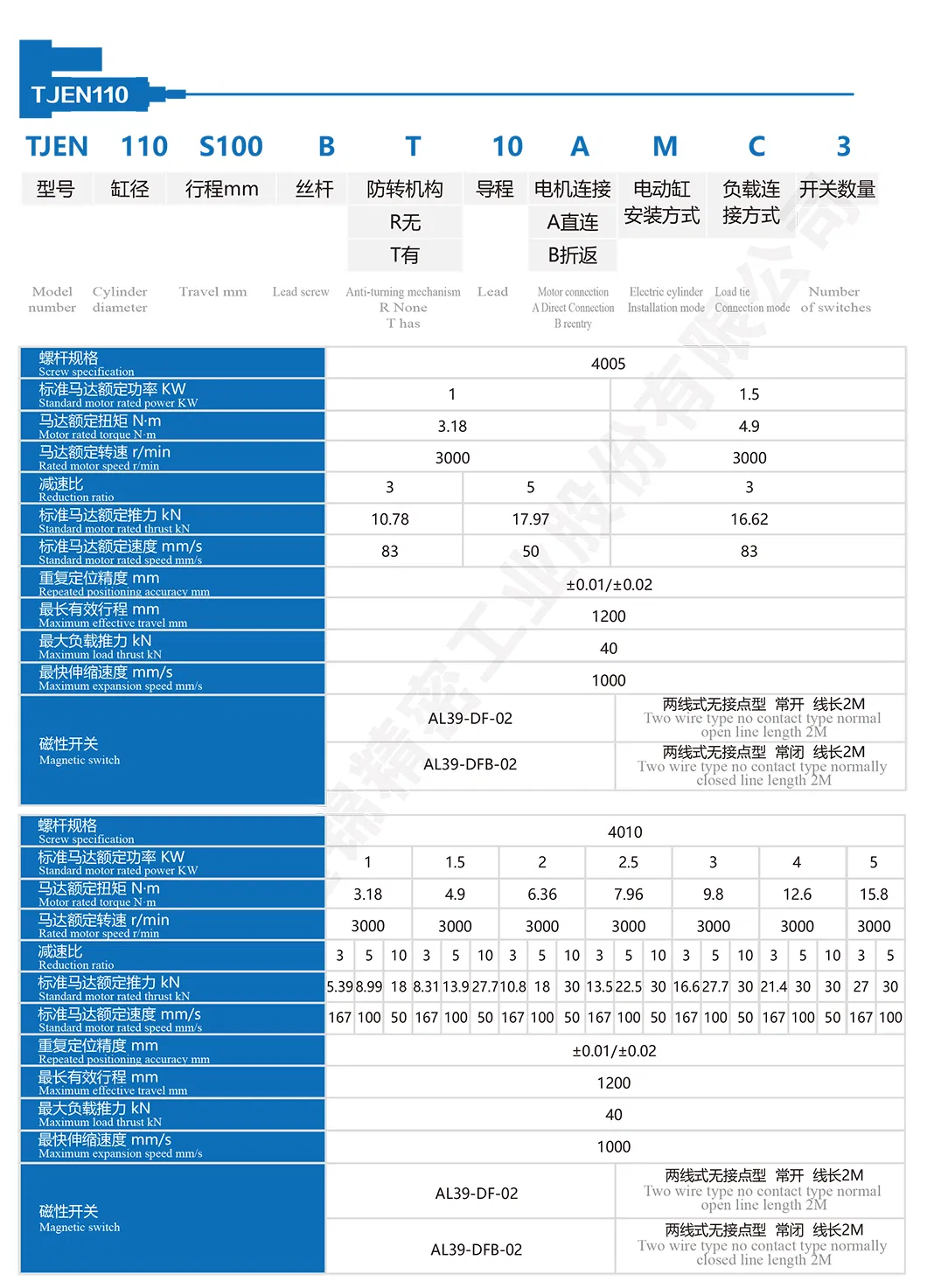

Screw specification	4005
Standard motor rated power KW	1		1.5
Motor rated torque N·m	3.18		4.9
Rated motor speed r/min	3000		3000
Reduction ratio	3	5	3
Standard motor rated thrust kN	10.78	17.97	16.62
Standard motor rated speed mm/s	83	50	83
Repeated positioning accuracy mm	±0.01/±0.02
Maximum effective travel mm	1200
Maximum load thrust kN	40
Maximum expansion speed mm/s	1000

Tjen110 High Speed 400W Servo Motor Light Duty Electric Actuator

Our company has successfully independently developed independent products such as Tongjin brand servo electric cylinders, intelligent servo press fit machines, Linear Electric Actors, Heavy Duty Electric Cylinders, Servo Press Machines, etc., combined with six joint robots to achieve automated, safe, and unmanned intelligent assembly green unmanned production lines, providing a one-stop solution for intelligent assembly automation systems in factories.
