Product details

Electric cylinders for 3D printing additive represent a significant advancement in the field of additive manufacturing. These high precision electric cylinders are designed to provide accurate linear motion control, making them ideal for a wide range of applications within the 3D printing industry. Whether you're working on industrial-grade printers or advanced prototyping systems, these electric actuators for 3D printers offer reliable performance, durability, and exceptional accuracy. Engineered with cutting-edge technology, they ensure seamless integration into existing systems while delivering consistent results that meet the highest standards of quality and efficiency.

TJEN Light Load Series electric cylinders are engineered for high-performance industrial automation applications, offering a perfect blend of durability, precision, and efficiency. Crafted from high-strength aluminum alloy, these units combine lightweight construction with modular design principles, making them ideal for integration into modern manufacturing systems. With a thrust range spanning from 0.1kN to 50kN and an effective stroke of up to 2 meters, the TJEN Light Load Series is designed to meet the demanding requirements of advanced production environments. Capable of operating at speeds up to 1250mm/s, these electric cylinders deliver exceptional dynamic response, ensuring smooth and accurate motion control in even the most challenging conditions.

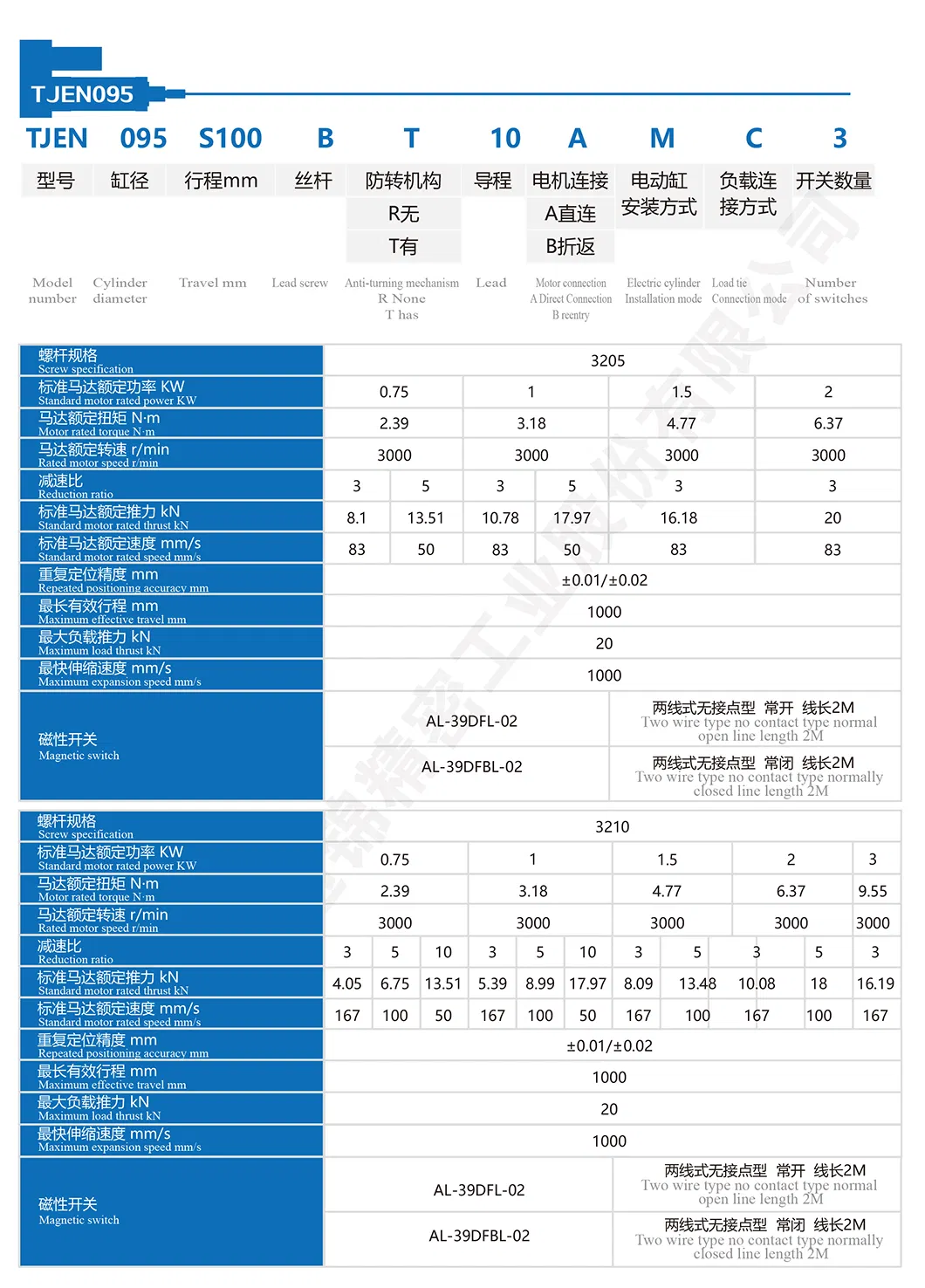

Screw specification	3205
Standard motor rated power KW	0.75		1		1.5	2
Motor rated torque N·m	2.39		3.18		4.77	6.37
Rated motor speed r/min	3000		3000		3000	3000
Reduction ratio	3	5	3	5	3	3
Standard motor rated thrust kN	8.1	13.51	10.78	17.97	16.18	20
Standard motor rated speed mm/s	83	50	83	50	83	83
Repeated positioning accuracy mm	±0.01/±0.02
Maximum effective travel mm	1000
Maximum load thrust kN	20
Maximum expansion speed mm/s	1000

Tjen095 High Quality Electric Cylinders for 3D Printing Additive Manufacturing Applications

Do you want to improve the process reliability and productivity of industrial 3D printing equipment? From moving print heads with excellent repeatability accuracy to precise process gas delivery and automatic loading and unloading, we are your loyal automation partner no matter which production method or stage you use in additive manufacturing. Our electric cylinders, modules, ready to install solutions, and complete systems can be easily and flexibly integrated into your existing technology. Choose us as your partner to fully unleash the potential of additive manufacturing.

Our company has successfully independently developed independent products such as Tongjin brand servo electric cylinders, intelligent servo press fit machines, Linear Electric Actors, Heavy Duty Electric Cylinders, Servo Press Machines, etc., combined with six joint robots to achieve automated, safe, and unmanned intelligent assembly green unmanned production lines, providing a one-stop solution for intelligent assembly automation systems in factories.
