Product details

TJEN Light Load Series Electric Linear Actuators are engineered for precision, durability, and adaptability in a wide range of industrial and commercial applications. These actuators utilize high-strength aluminum alloy materials, ensuring a balance between robust performance and lightweight construction. The modular design allows for easy integration into various systems, making them ideal for both standard and custom-built solutions. With a thrust range spanning from 0.1kN to 50kN, these linear actuators can handle a variety of load requirements, while the effective stroke extends up to 2 meters, providing flexibility in motion control.

Operating at speeds of up to 1250mm/s, they offer high dynamic response, with a frequency of 20Hz, enabling rapid and accurate movement. The high rigidity and impact resistance of the TJEN Light Load Series ensure long-term reliability, even in demanding environments. Additionally, the low noise operation and special surface treatment make them suitable for use in both extreme temperature conditions and challenging operational settings. The IP54-IP68 protection rating ensures that these actuators can function reliably in dusty, wet, or corrosive environments, expanding their applicability across different industries.

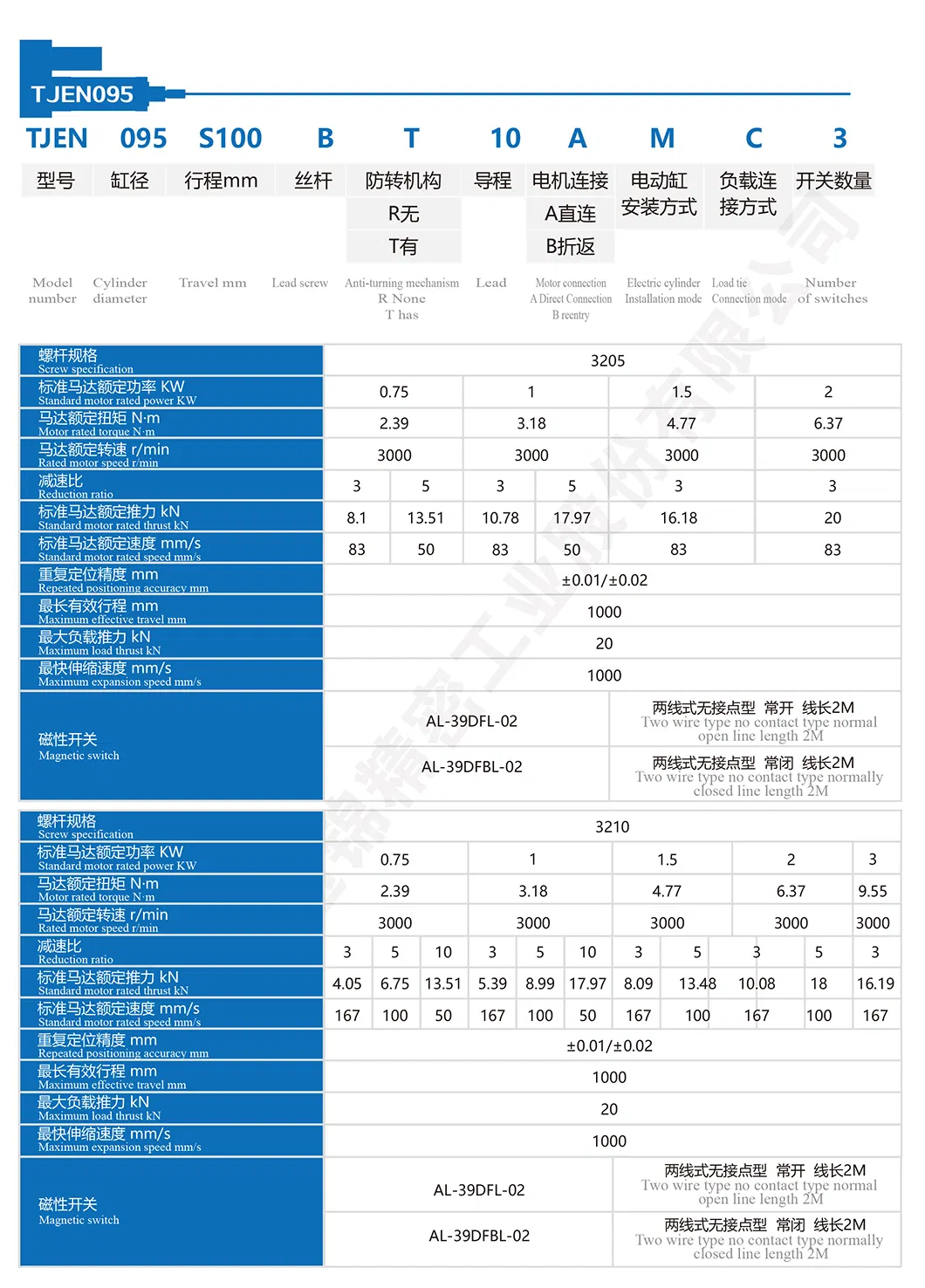

Screw specification	3205
Standard motor rated power KW	0.75		1		1.5	2
Motor rated torque N·m	2.39		3.18		4.77	6.37
Rated motor speed r/min	3000		3000		3000	3000
Reduction ratio	3	5	3	5	3	3
Standard motor rated thrust kN	8.1	13.51	10.78	17.97	16.18	20
Standard motor rated speed mm/s	83	50	83	50	83	83
Repeated positioning accuracy mm	±0.01/±0.02
Maximum effective travel mm	1000
Maximum load thrust kN	20
Maximum expansion speed mm/s	1000

Tjen Light Electric Linear Actuator with Remote Control for Hospital Bed/Massage

Tjen Light Electric Linear Actuator with Remote Control for Hospital Bed/Massage

Our company has successfully independently developed independent products such as Tongjin brand servo electric cylinders, intelligent servo press fit machines, Linear Electric Actors, Heavy Duty Electric Cylinders, Servo Press Machines, etc., combined with six joint robots to achieve automated, safe, and unmanned intelligent assembly green unmanned production lines, providing a one-stop solution for intelligent assembly automation systems in factories.
