Construction Machinery Steel Bucket Bush For Heavy-duty Joint Parts Excavators diggers,Loaders

3 month ago
17 0
Product details
Bucket Bushing Types

Premium Steel Bucket Bushing For Heavy Duty Joint Parts


Yokelink steel bushing bearing is based on 45#,40Cr, 20CrMo, GCr15 and other materials. From raw materials to finished products, each process is strictly controlled to ensure the product quality. lt produces bushing with high wear resistance, high surface hardness and strong internal toughness.

The inner surface of steel bushing bearing is processed with various types of oil grooves, which improves the surface hardness and wear resistance after heat treatment. It is suitable for heavy-duty joint parts of construction machinery such as excavators, rotary drilling rigs, large loaders, wall grab and so on.


Steel Bucket Bushing Features:


Hardness: HRC 50-62
Maxload: 80 N/mm²
Max Linear Velocity: 0.1 m/s
Max PV Value: 2 m/min
Working Temperature Limit: -70~+300 ℃
Linear Expension Coefficient: 1.1


Steel Bucket Bushing Optional Material:


42CrMo-Super high strength steel
40Cr-Medium carbon quenched and tempered steel
20CrMo/20CrMnTi-Low carbon alloy steel
Gcr15-Bearing steel
45#-Carbon steel


Customized Size Bucket Bushings

We can customize Bucket Bush processing according to customer drawings, process, tolerancerequirements, style, quantity, and the following is the processing scope.
For specificdimensions, please contact pre-sales customer service.

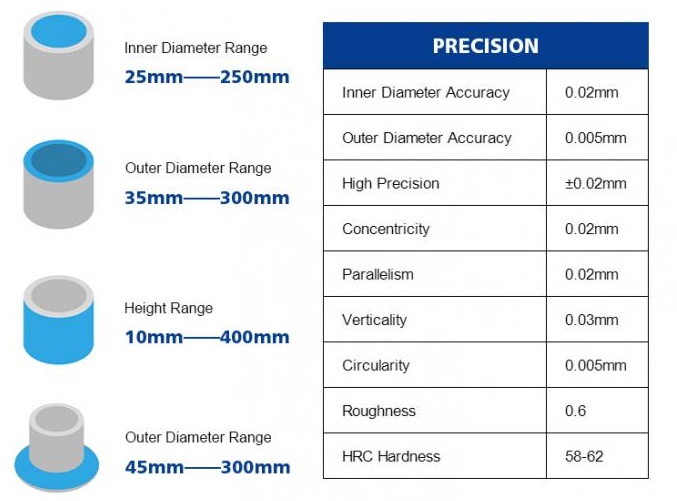

  • Bucket Bush Inner Diameter Range: 25mm-250mm
  • Bucket Bush Outer Diameter Range: 35mm-300mm
  • Bucket Bush Height Range: 10mm-400mm
  • Bucket Bush Outer Diameter Range: 45mm-300mm

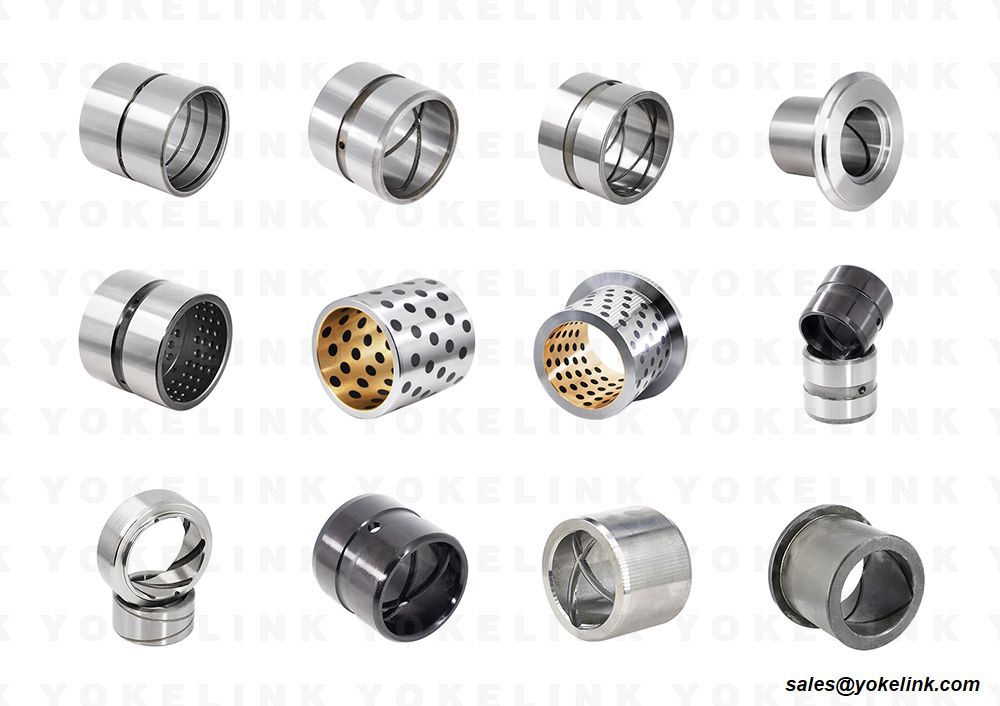

Optional Bucket Bushing Specifications


Yokelink Bucket Bush Adavantage:

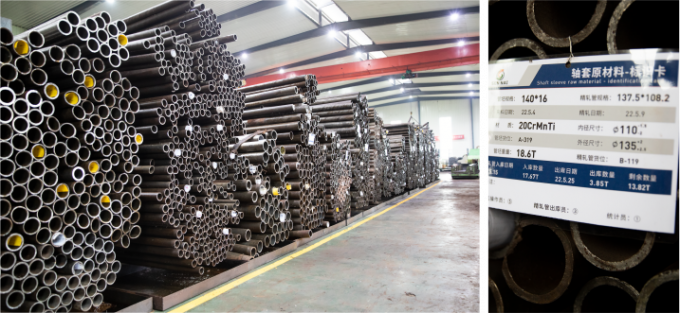

Bucket Bushing Raw Material Bucket Bush Packaging

Corrosion resistance:

While hardened steel bushings are generally resistant to wear, they may still be susceptible to corrosion in certain environments. To mitigate this, they can be coated with protective finishes or manufactured from stainless steel for enhanced corrosion resistance.



Versatility:

Hardened steel bushings can be used in a wide range of applications, including automotive, industrial machinery, construction equipment, and more. They are suitable for both rotating and sliding motion, providing support and reducing friction in various mechanical systems.



Temperature resistance:

Hardened steel bushings can withstand high operating temperatures without significant degradation. This makes them suitable for applications where heat is generated or where they are exposed to elevated temperatures.



Maintenance-friendly:

Hardened steel bushings often require minimal maintenance. Proper lubrication can further enhance their performance and extend their service life.
