theDF Series Multi-way Directional Control Valve, maintaining technical precision and industry-standard terminology:
------
1. Core Definition & Functional Positioning

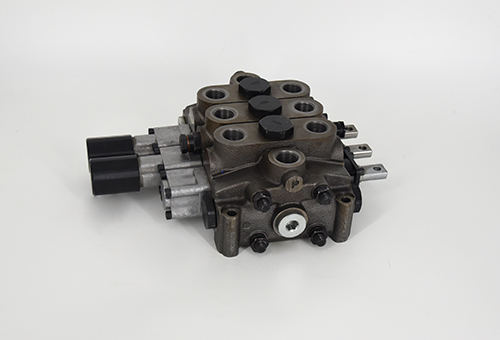

TheDF Series Multi-way Directional Control Valveis a hydraulic component critical forflow distribution, directional switching, and pressure regulationin construction machinery systems. By integrating multiple directional spools (typically 3–8 sections), it enables independent or coordinated operation of multiple actuators (e.g., cylinders, motors). Its core functions include:
• Directional Control: Switches hydraulic oil flow direction (e.g., cylinder extension/retraction, motor rotation).
• Flow Regulation: Adjusts actuator speed via spool opening size.
• Pressure Protection: Integrates relief valves to prevent system overload.
• Center Positions: Supports O-type (closed), M-type (unloading), H-type (floating), and Y-type configurations to match diverse operational requirements.
------
2. Technical Specifications & Performance Metrics
Typical Parameters (DF6 Series Example):
【表格】
Parameter Technical Specifications Industry Benchmark Comparison
Max. Operating Pressure 31.5 MPa (315 bar) Exceeds industry average (28 MPa) for heavy-duty applications
Rated Flow 120 L/min (per section) Scalable up to 720 L/min (6-section parallel)
Response Time ≤50 ms (pilot-operated type) Faster than mechanical valves (80–120 ms)
Internal Leakage ≤50 mL/min (standard conditions) Below ISO 4401 standard (≤100 mL/min)
Center Position Options O/M/H/Y-type configurable Covers 90% of construction machinery use cases
Spool Material Case-hardened steel (HRC 58–62) 3x wear resistance vs. standard steel
Key Performance Advantages:
• High-Pressure Resistance: 31.5 MPa rating withstands transient shocks in heavy equipment (e.g., roller vibratory systems).
• Low-Leakage Design: Internal leakage below industry benchmarks reduces energy loss (8–12% efficiency improvement in tests).
• Fast Response: Pilot-operated spools achieve ≤50 ms response time, critical for precise excavator boom/bucket operations.
------
3. Structural Design & Innovations
（1）Modular Configuration
• Single-Section Design: Each valve section is independent and bolted for scalable multi-section assemblies (e.g., DF6 supports 2–6 sections).
• Standardized Ports: P/T/A/B ports comply with ISO 4401 for compatibility with mainstream hydraulic systems.
（2）Spool Technology
• Open-Center (O-type): All ports blocked in neutral; ideal for pressure-holding applications (e.g., crane outriggers).
• Closed-Center (M-type): Pump unloads in neutral; suited for energy-saving travel systems (e.g., motor graders).
• Floating-Center (H-type): Actuators move freely; critical for paver screed following control.
（3）Sealing & Lubrication
• Axial Seals: Anti-extrusion PTFE rings ensure ≥8,000-hour lifespan.
• Forced Lubrication: Internal oil channels reduce spool wear (friction coefficient reduced to 0.03).
------
4. Typical Applications
（1）Agricultural Machinery
• Tractor Hydraulic Hitches:
• 3-section valve group controls lift/lower, position adjustment, and float functions.
• Load-sensing technology adapts lift speed to load variations.
（2）Construction Equipment
• Roller Vibratory Systems:
• High-frequency vibration requires fast spool response (DF ≤50 ms).
• High-pressure tolerance (31.5 MPa) withstands drum impact loads.
• Mini Excavators:
• 4-section valve group distributes flow to boom, arm, bucket, and swing.
• Composite motion synchronization error ≤3% (vs. industry 5% standard).
（3）Municipal Equipment
• Refuse Truck Ejection Systems:
• High-flow demand (120 L/min per section) for rapid compartment emptying.
• M-type center position enables pump unloading at engine idle, reducing fuel consumption.
------
5. Selection Guide & Matching Recommendations
（1）Key Selection Parameters
【表格】
Selection Dimension Matching Recommendations
Pressure Rating Heavy-duty equipment (e.g., mining dump trucks): 31.5 MPa; light-duty: 21 MPa
Flow Requirement Single actuator ≥80 L/min: large-bore spool (e.g., DF6 with 22 mm orifice)
Control Method Manual operation: mechanical lever; electro-hydraulic: proportional solenoid (±1% accuracy)
Environmental Adaptability Cold climates (−30°C): low-temperature hydraulic oil; desert: IP67 protection
（2）Typical Configuration Example
• Scenario: 6-ton wheeled excavator
• Configuration: DF6-4L (4 sections, load-sensing, pilot-operated)
• Section 1: Boom cylinder (proportional spool, 80 L/min)
• Section 2: Arm cylinder (proportional spool, 60 L/min)
• Section 3: Bucket cylinder (on/off spool, 40 L/min)
• Section 4: Swing motor (with counterbalance valve, 100 L/min)
------
6. Maintenance & Fault Diagnosis
（1）Routine Maintenance
• Oil Cleanliness: NAS 1638 Class 9 or better; filter replacement every 500 hours.
• Seal Inspection: Replace O-rings every 2,000 hours to prevent internal leakage.
• Spool Lubrication: Replenish dedicated grease (e.g., Shell Gadus S2 V220 2) every 1,000 hours.
（2）Common Faults & Solutions
【表格】
Fault Symptom Possible Causes Solutions
Sluggish actuator movement Stuck spool, contaminated oil Clean valve body, replace filter element
System pressure failure Low relief valve setting, pump wear Recalibrate relief valve (31.5 MPa), repair pump
Uncoordinated composite motion Uneven flow distribution, spool wear Adjust load-sensing spring, replace worn spool
------
7. Industry Comparison & Competitive Analysis
（1）Comparison with Competitors (e.g., Bosch Rexroth M4 Series)
【表格】
Comparison Item DF Series M4 Series DF Advantages
Price Mid-to-low-end market (~70% of M4) Premium segment (30% premium) Cost-effective for price-sensitive customers
High-Pressure Performance 31.5 MPa (DF6) 28 MPa (M4-15) Suitable for harsher operating conditions
Response Speed ≤50 ms (pilot-operated) 60–80 ms Superior for fine motion control
Customization
Supports spool combinations/center position mods
Standard modules only
Meets non-standard equipment demands
