How to choose micro diaphragm water pumps for floor scrubber?
it is recommended to match the flow rate and pressure. Based on the size of the floor scrubber brush and its rotational speed, calculate the required water flow rate. For example, for a brush disc with a diameter of 30cm, it is recommended that the flow rate be ≥2.5L/min. For different floor materials (such as ceramic tiles and epoxy flooring), select the appropriate pressure (3-8 bar) to avoid damaging the floor due to excessive pressure. Confirm the voltage and interface compatibility of the power system of the floor scrubber (such as 12V/24V DC), and select the pump type that matches the voltage. The interface size should be compatible with the water pipe of the floor scrubber (usually with an outer diameter of 8-12mm) to reduce the risk of leakage
| Product Model | DSB413-B-11 | Voltage | DC12.0V |
| Current | <450mA | Water Flow Rate | 1000-1200mL/min |
| Media | Water | Life cycle | 18000sec ( 60s on,60s off) |
| Working temperature | 5℃~95℃ | Product N.W | 62g |
| Noise | Keywords | Water Transfer Pump |

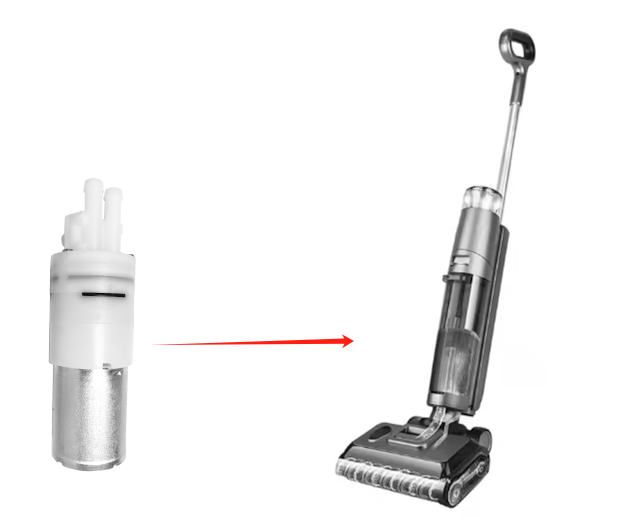

The working principle of the miniature self priming transfer pump in the floor scrubber:
Clean water delivery: The cleaning liquid is delivered from the clean water tank to the brush disc or water spray nozzle, ensuring that the floor is fully moistened when the brush disc rotates and softening the stains. Pressure control: By adjusting the motor speed or the structure of the pump body, different pressure water flow outputs can be achieved to adapt to various cleaning scenarios. Self-priming ability: It can directly draw water from the water tank without the need for an additional water drawing device, simplifying the structure and enhancing portability.
Dimension Drawing
The working process of the water transfer pump in the floor scrubber drives the motor:
It provides rotational power to drive the diaphragm to move back and forth. Diaphragm pump body: The deformation of the diaphragm enables liquid suction and discharge, forming negative pressure suction and high-pressure jet. Pressure reducing valve: Dynamically regulates the outlet pressure to prevent equipment damage due to overpressure. Check valve group: Prevents the backflow of liquid and ensures unidirectional flow. Pressure sensor: It monitors water pressure in real time and feeds back to the control board, triggering pressure reduction or start-stop logic
