Hydraulic Hose Crimping Machine: A Comprehensive Overview

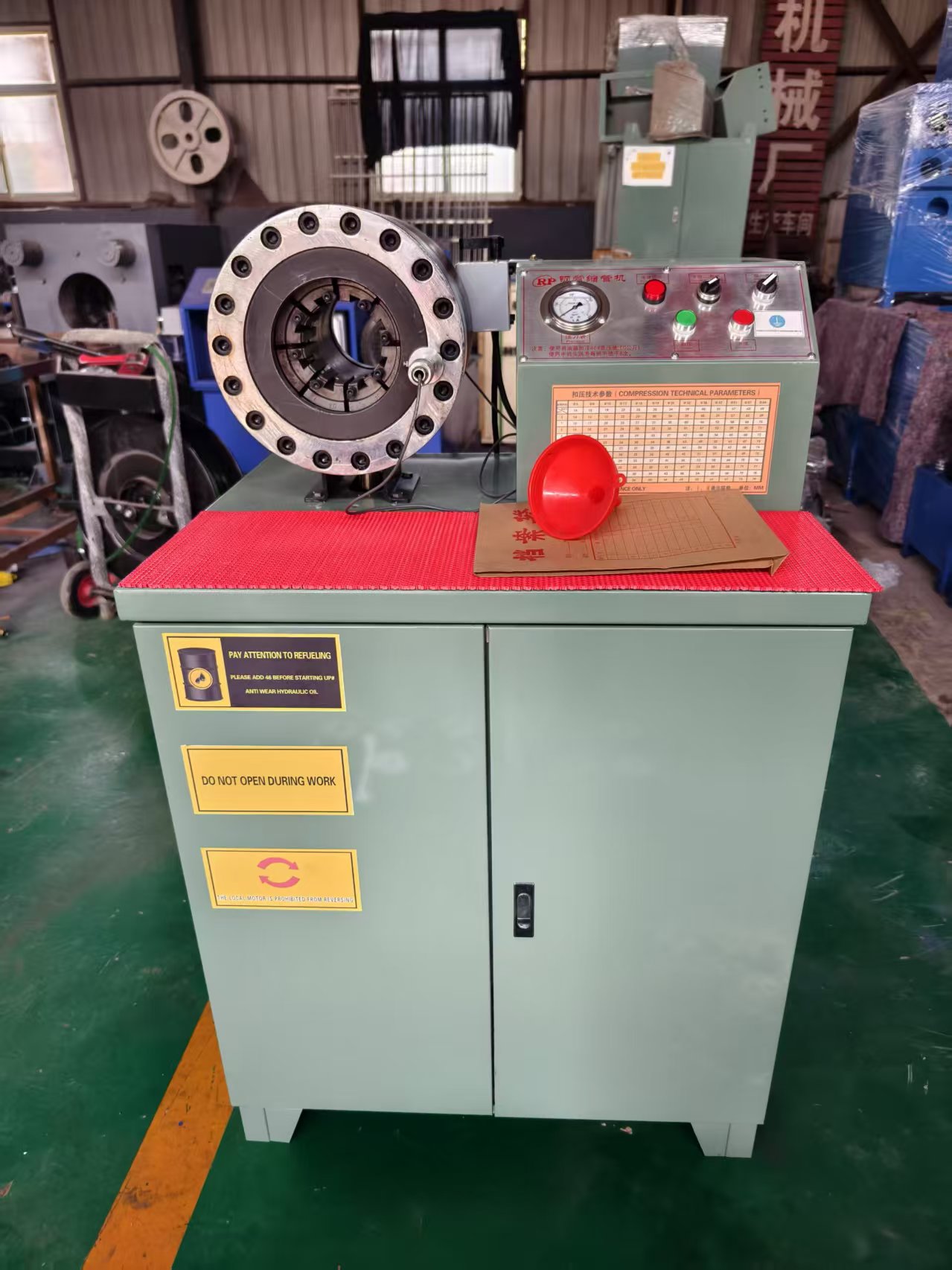

Ahydraulic hose crimping machineis a specialized industrial tool designed to securely attach fittings (such as ferrules, couplings, or end connectors) to hydraulic hoses under high pressure. This process, known as "crimping," ensures a leak-proof, durable connection critical for hydraulic systems in machinery, vehicles, and industrial equipment. Below is a detailed breakdown of its functionality, applications, and key considerations:
------
1. Core Functionality
• Purpose: Crimps hydraulic hose assemblies by compressing metal fittings onto the hose end, creating a permanent, airtight seal.
• Mechanism: Uses hydraulic pressure (typically 10–100 tons) to deform the fitting into the hose’s reinforcement layer (e.g., steel wire or textile braid).
• Precision: Adjustable crimping dies and pressure settings accommodate different hose sizes (e.g., 1/4" to 2") and pressure ratings (up to 6,000 PSI or higher).
------
2. Key Components
• Hydraulic Pump: Generates pressure to drive the crimping mechanism.
• Crimping Head/Dies: Interchangeable dies (e.g., hexagonal, circular) match the fitting’s geometry.
• Control System: Manual levers, digital screens, or programmable logic controllers (PLCs) for precise pressure/stroke control.
• Safety Features: Emergency stops, overload protection, and die guards to prevent accidents.
------
3. Applications
• Industrial Machinery: Presses, injection molders, and CNC equipment.
• Construction & Mining: Excavators, loaders, and drills.
• Aerospace & Defense: Hydraulic systems in aircraft and military vehicles.
• Automotive: Heavy-duty trucks, agricultural machinery, and hydraulic lifts.
• Marine: Shipboard hydraulic systems and offshore platforms.
------
4. Types of Crimping Machines
【表格】
Type Key Features Best For
Manual Crimpers Hand-operated, low-cost, suitable for small-scale repairs. Low-volume hobbyist/DIY use.
Portable/Benchtop Compact, battery-powered (some models), ideal for fieldwork. Mobile maintenance teams.
Heavy-Duty Machines High-tonnage (50+ tons), PLC-controlled, for large-scale production. Manufacturing plants.
Automatic Crimpers Fully automated with feeders/quality sensors, minimizing human error. 24/7 assembly lines.
------
5. Advantages
• Leak-Proof Seals: Eliminates risks of hydraulic fluid leaks under pressure.
• Durability: Crimped connections withstand vibration, heat, and corrosion better than threaded alternatives.
• Efficiency: Reduces assembly time vs. manual methods (e.g., clamps or glue).
• Cost Savings: Prevents downtime from failed hoses in critical systems.
------
6. Limitations
• Initial Cost: High-end machines can exceed10,000,thoughportablemodelsstartat10,000, though portable models start at 10,000,thoughportablemodelsstartat500.
• Skill Requirement: Operators need training to select correct dies and pressure settings.
• Maintenance: Regular hydraulic fluid changes and die replacements add to costs.
------
7. Selection Criteria
• Hose Specs: Match machine capacity to hose diameter, wall thickness, and material (e.g., thermoplastic vs. rubber).
• Pressure Rating: Ensure the machine exceeds the hose’s working pressure (e.g., 4,000 PSI hose requires ≥5,000 PSI crimping force).
• Automation Needs: Manual vs. PLC-controlled for production speed.
• Portability: Benchtop for workshops vs. battery-powered for field use.
------
8. Maintenance Tips
• Daily Checks: Inspect hydraulic fluid levels, hoses, and electrical connections.
• Die Care: Clean and lubricate dies to prevent rust; replace worn dies promptly.
• Calibration: Verify pressure settings annually using a load cell or test gauge.
• Operator Training: Enforce protocols for die selection and safety procedures.
------
9. Safety Guidelines
• Personal Protective Equipment (PPE): Gloves, safety glasses, and steel-toed boots.
• Lockout/Tagout (LOTO): De-energize machines during maintenance.
• Die Alignment: Ensure the hose and fitting are centered to avoid uneven crimping.
• Avoid Over-Crimping: Follow manufacturer guidelines for pressure/stroke limits to prevent hose damage.
