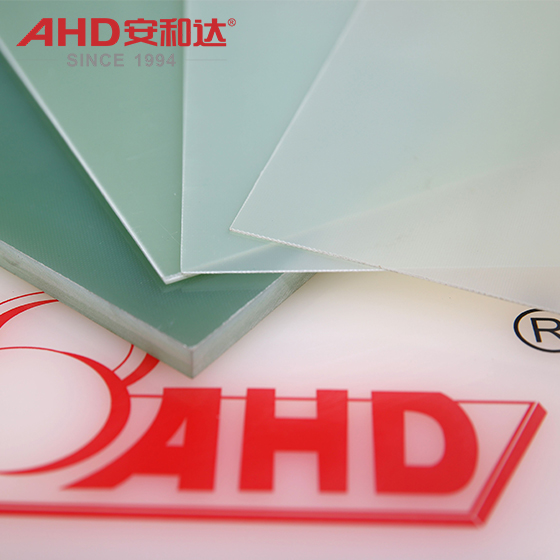

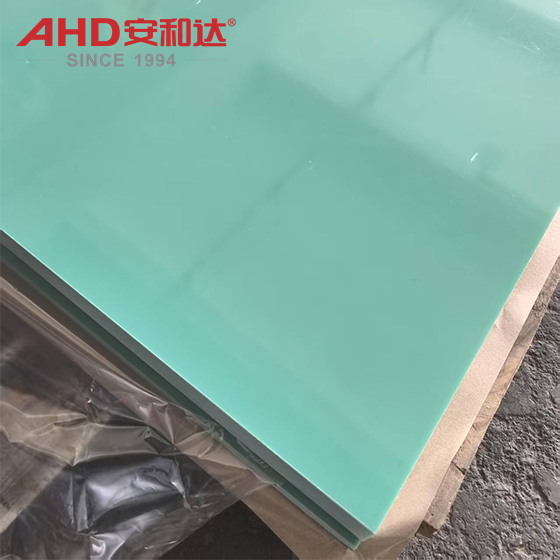

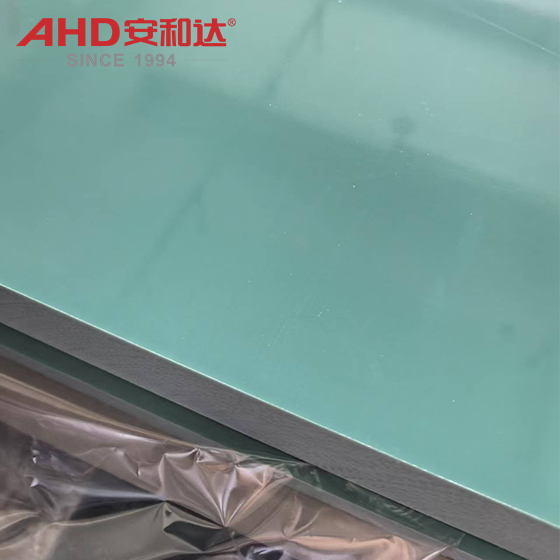

Green G10 FR4 Fiberglass Sheet, also known as G10 FR4 glass epoxy sheets, are constructed using a combination of solid laminates of fiberglass prepreg and epoxy resin with high strength properties. FR4 is a material specification that the resin material must be able to extinguish itself after burning.
The process of embedding epoxy resin into G10 sheets involves:
Soaking layers of glass cloth in the resin, which has superior adhesive properties.
Compressing the layers under heat and pressure.
Ensuring a secure bond and enhanced strength and durability for the final product. The material is extremely strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. Custom cuts available. They offer exceptional features such as low moisture absorption & chemical resistance, suitable for many applications.
Electrical Insulation G10 FR4 Glassfiber Sheet
Fiberglass reinforcement, another significant component of G10 sheets, lends extra strength and rigidity to the material. Continuous filament fiberglass cloth, specifically plain weave e-glass, is commonly used for High Quality G10 FR4 Sheets reinforcement.
This reinforcement not only enhances the mechanical properties of G10 sheets but also contributes to their good electric strength properties and excellent electrical insulation properties, making them suitable for various industries and applications.
Some of the most notable features of G10 sheets include their high strength, low moisture absorption, and chemical resistance. The tensile strength of G10 sheets is approximately 40,000 psi lengthwise and 35,000 psi crosswise. Their resistance to moisture is outstanding, ensuring rust-free performance when exposed to moist conditions.
G10 sheets also demonstrate outstanding chemical resistance. These key features make G10 sheets an ideal material for a variety of applications, where strength, durability, and resistance to various environmental factors are crucial.
We are anti-static fiberglas plastic sheet Manufacturer in China.
Available in full sheets, rods or custom cut options with fast delivery and stock availability to suit any project.
If you are interested in the product, contact 2bvideo.com for more information for more information
