Product details

At present, our small (light) Liberation 33 aerial work vehicle is being promoted with Liberation Chassis, and the new model is on special sale.

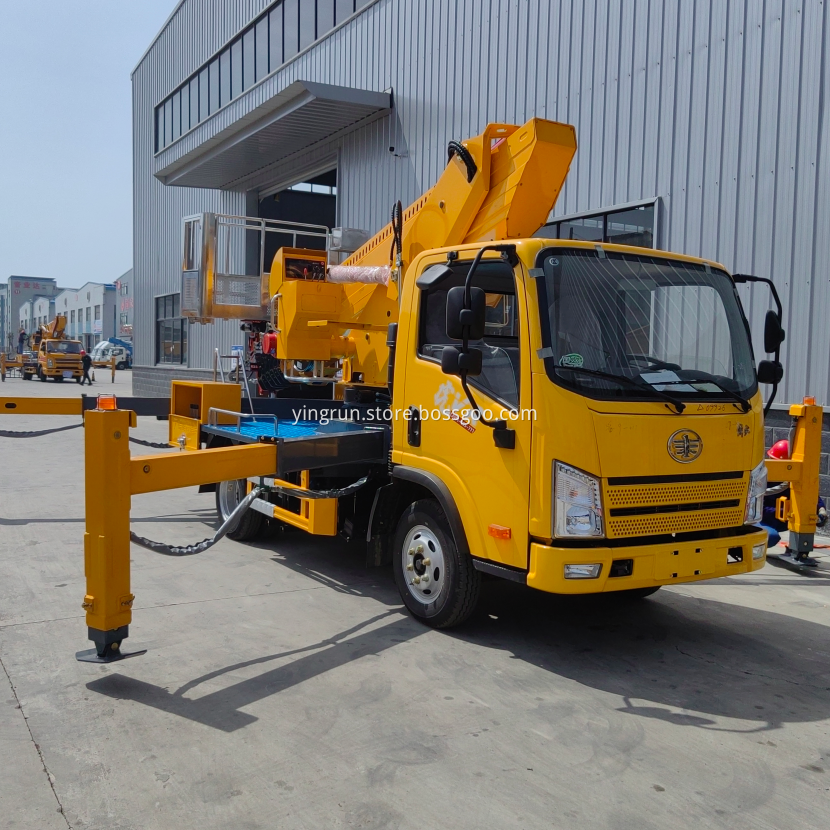

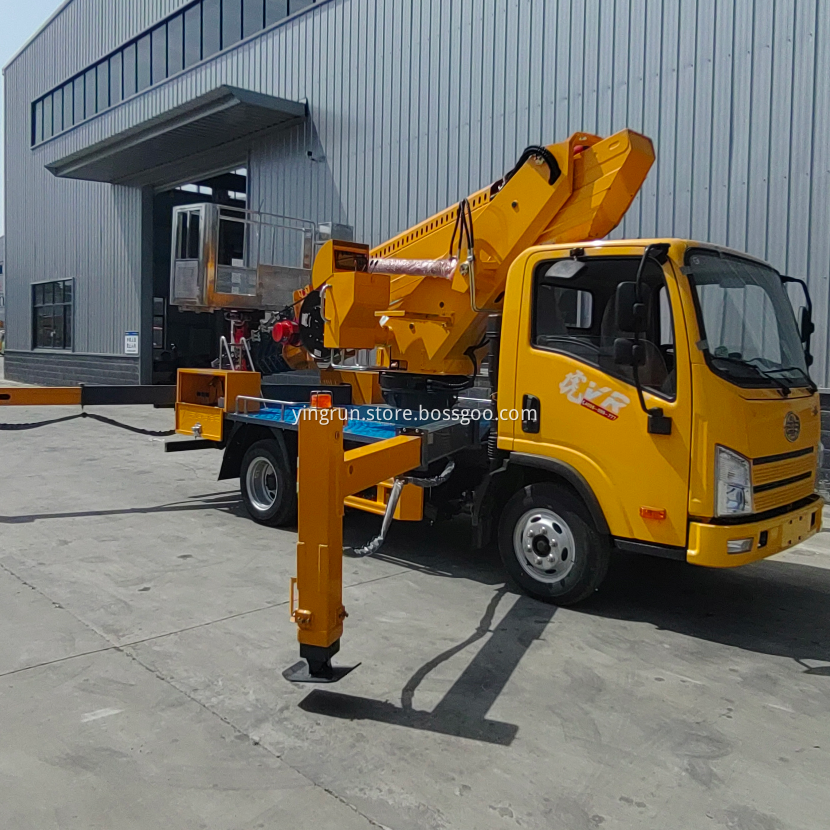

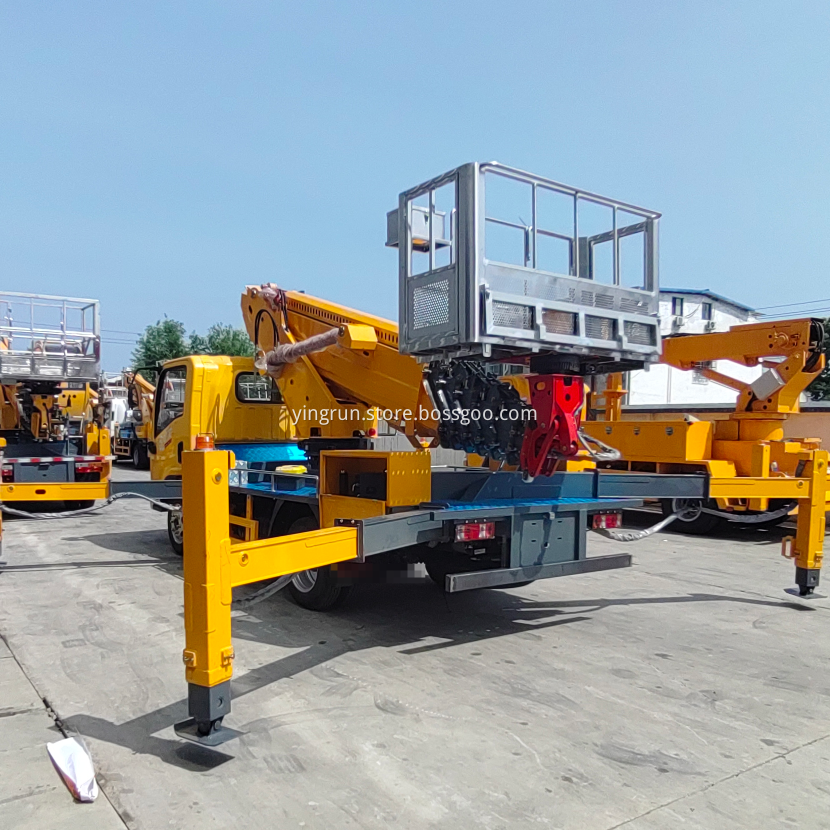

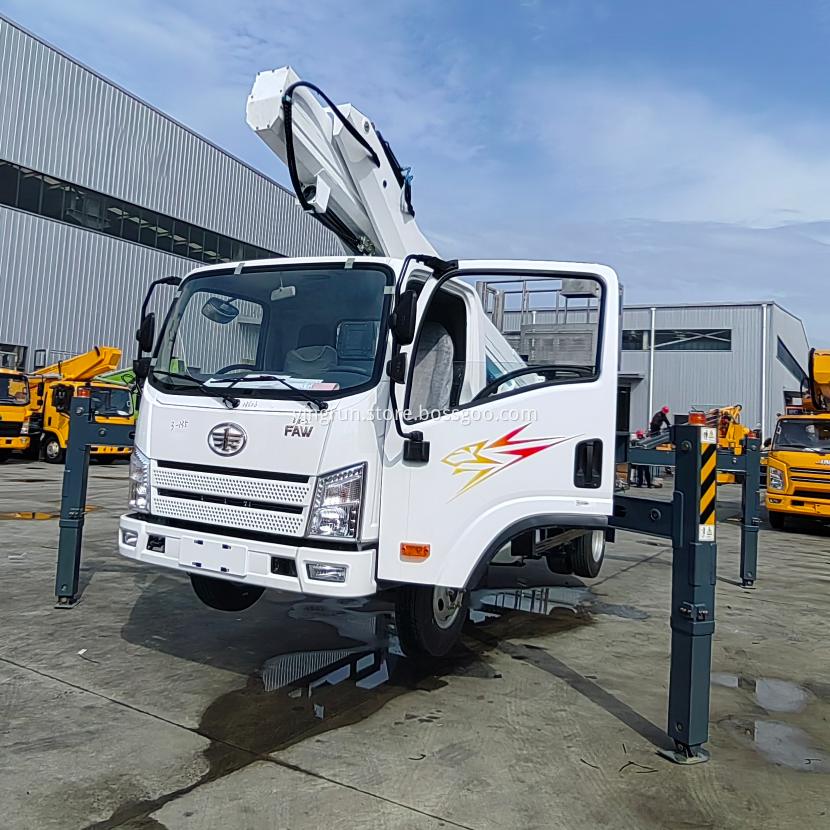

This 33 meter aerial work platform can reach a working height of 33 meters, with a horizontal working distance of up to 14 meters towards the side, a forced arm extension of up to 18 meters, and a horizontal extension of up to 20 meters towards the rear. The vehicle has a wheelbase of 2800mm, a single row cab, a diesel engine, 132 horsepower, a power of 97KW, a brake, a 5-speed gearbox, and meets the National VI emission standard. The overall dimensions of the vehicle are 5990 * 2050 * 3250mm, and the total weight of the vehicle varies depending on the configuration. The working frame size is 2 * 1 * 1.2m. The boom of this 33 meter aerial work vehicle consists of seven sections, each with an 18 sided structure for greater stability.

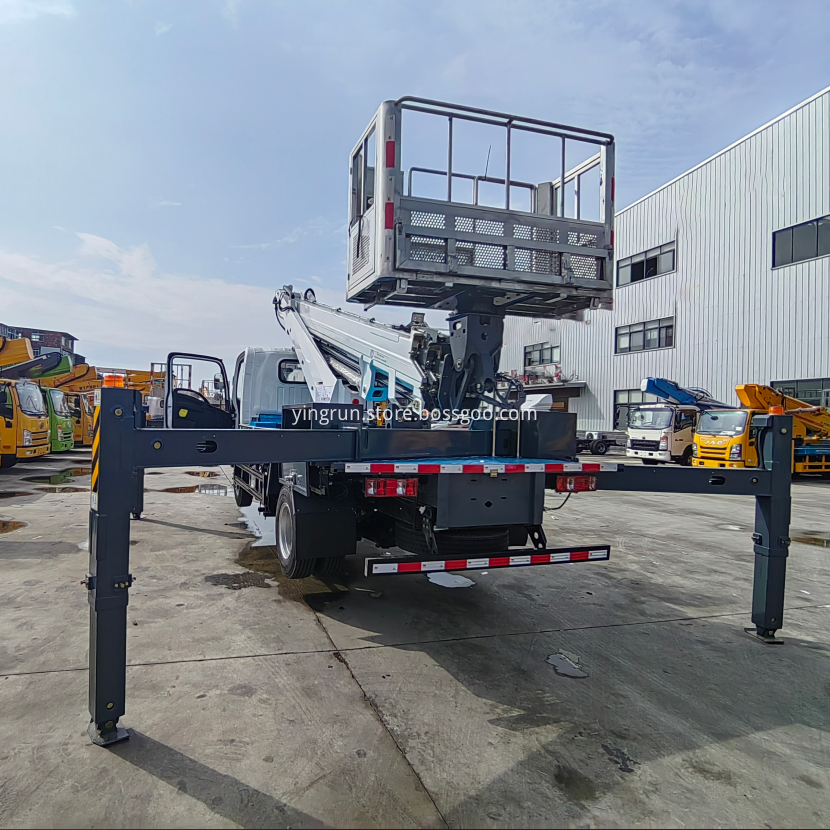

The legs of the vehicle are double jointed legs, with a front V and rear V structure. The lateral span of the legs is 5600mm and the longitudinal span is 5400mm. The vehicle is equipped with three operating systems: remote control, computer control, and manual control systems, as well as an emergency power pump.

This aerial work platform is currently our factory's discounted model, with no discount on quality, sturdy and durable. Please feel free to inquire.
