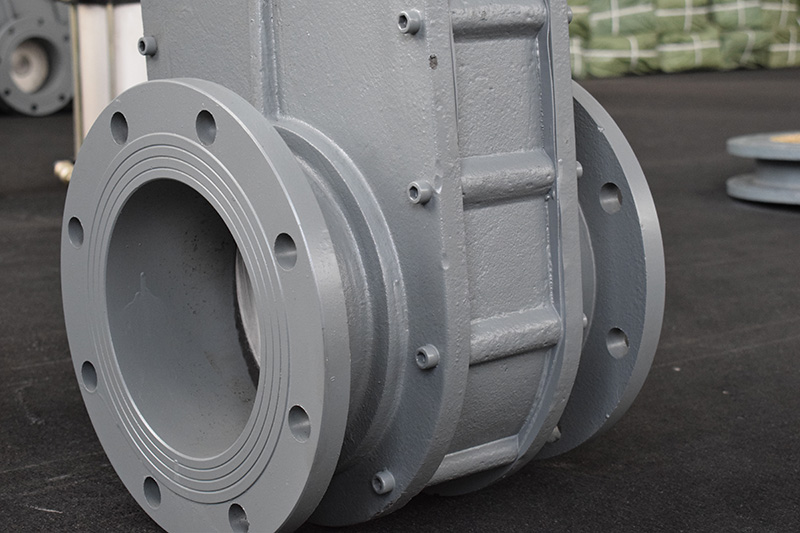

Discharge dome valve

8 month ago

28 0

Wuxi Baofeng Electric Power Equipment Co., Ltd.

 8 month year

Product details

Product introduction:

High-performance pneumatic valve designed for reliable operation in demanding industrial environments. This product is specifically engineered for use in positive and negative pressure material conveying systems within thermal power plants, as well as for controlling the flow of dry dust, coal slag, water, steam, and other abrasive, corrosive, and erosive media across various industries such as mining, metallurgy, papermaking, and chemical processing. With a robust design and advanced sealing technology, this valve ensures long-lasting performance, minimal maintenance, and enhanced system safety.

The valve features an air-lock parallel gate structure combined with a spring-opening mechanism, providing a tight and dependable seal that prevents leakage and maintains operational efficiency. The fully open material inlet eliminates obstructions, while the unique blowing and blocking device effectively minimizes dust accumulation and jamming. The special material sealing pair offers exceptional resistance to high temperatures, wear, and erosion, ensuring stable and safe system operation under harsh conditions. Additionally, the valve is built to last with a maintenance-free design, significantly reducing user operational and maintenance costs over time.

Product Details：

Parts name	Materials
Valve body	WCB cast steel/ductile iron
Valve plate	Special structural ceramics/special alloy steel
Valve seat	Special structural ceramics/special alloy steel
Valve stem	Alloy steel (hard chrome plated)
Sealing ring	Fluororubber
Packing	Reinforced graphite/carbon fiber
Cylinder	Standard configuration: quick exhaust valve, magnetic induction limit

Main shape and connection dimensions
unit：mm
DN	D	D1	N-d	H	L
50	160	125	4-018	160	360
65	180	145	4-018	165	380
80	195	160	8-018	180	560
100	215	180	8-018	185	580
125	245	210	8-018	260	660
150	280	240	8-018	265	680
175	310	270	8-024	280	760
200	340	295	8-024	285	780
225	365	325	12-024	360	860
250	390	350	12-024	365	880
300	445	400	12-024	385	980

The company's technical reserves include 35 patents and 9 qualification certificates,with products covering more than ten categories such as Double Gate Feed Valve,Double Flap Exhaust Valve,Rotary Feed Valve,Rotary Exhaust Valve,Rotary Exhaust Valve,Coal Mill Pneumatic Outlet Door special valves, etc
