Product details

High Quality Grey C PVC Sheet Material

C-PVC Sheet, with its comprehensive performance, has become a reliable alternative to metal and fiberglass in harsh environments, especially suitable for engineering scenarios with limited budgets but high corrosion and temperature resistance. It is a thermoplastic engineering plastic sheet made primarily from chlorinated polyvinyl chloride resin through high-temperature extrusion or rolling processes. The chlorination process (with a chlorine content of 63% -69%) significantly improves the temperature resistance, chemical resistance, and mechanical strength of ordinary PVC.

Advantages:

Economy: The cost is only 1/3 to 1/2 of fluoroplastics such as PTFE and PVDF, and the cost-effectiveness is high.
Convenient processing: It can be formed through CNC cutting, hot bending, and welding (hot air welding/ultrasonic welding) to adapt to complex designs.
Health and safety: Compliant with FDA and NSF standards, some grades can be used for food contact or drinking water systems.
Lightweight: Density of 1.5~1.6 g/cm ³, easy to transport and install, reducing structural load.

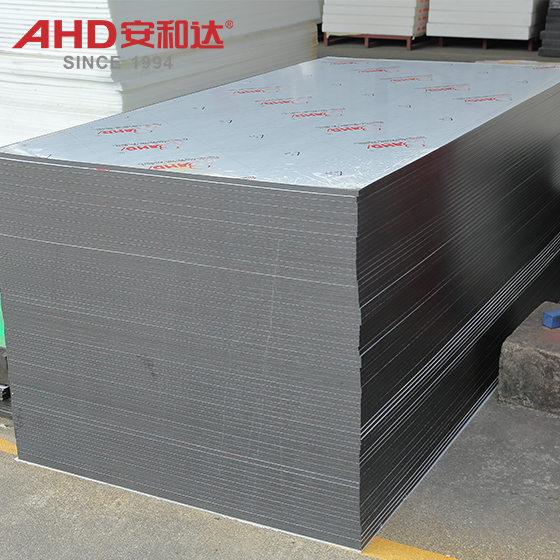

C PVC Sheet

Features:

High temperature resistance
Long term use temperature can reach 90-110 ℃, short-term temperature resistance can reach 120 ℃ (ordinary PVC is only 60 ℃), suitable for high-temperature fluid or steam environments.
Excellent chemical corrosion resistance
It can resist strong acids (such as hydrochloric acid, sulfuric acid), strong bases, salt solutions, organic solvents, and most hydrocarbons, which is superior to general plastics such as PP and PE.
Insoluble in alcohols and fatty hydrocarbons, with high stability to oxidants such as sodium hypochlorite.
Flame retardant and self extinguishing properties
Oxygen index ≥ 60, UL94 V-0 flame retardant, releases hydrogen chloride gas during combustion to suppress the spread of fire, suitable for places with strict fire prevention requirements.
Excellent mechanical performance
Tensile strength ≥ 50 MPa, better impact resistance than ordinary PVC, high rigidity and creep resistance, suitable for load-bearing structures.
Low thermal conductivity and electrical insulation
Low thermal conductivity (0.14 W/m · K), suitable for insulation applications; Volume resistivity>10 ¹⁵Ω· cm, can be used for electrical insulation components.
Environmental Protection and Durability
Free of heavy metals and recyclable; Anti UV aging (after adding stabilizers), outdoor service life of more than 10 years.

Technical parameters (reference)

Project Typical Values Testing Standards

Density 1.52-1.58 g/cm ³ ASTM D792

Vicat softening point ≥ 110 ℃ ASTM D1525

Linear thermal expansion coefficient 6 × 10 ⁻⁵/K ASTM D696

Water absorption rate (24h) <0.1% ASTM D570

pvc c sheets

Application areas:

acid testing manufacturing tower, seawater concentration tank, photo processing equipment, electroplating tank, battery box, electric meter board, audio stand cover, radio base plate, various electrical insulation boards, cement tank lining, locomotive wind deflector, exhaust duct engineering, stationery, building materials, etc.

Specification:

Board: Thickness x Width x Length=2-50mm x 1000mm x 2000mm; (Laminated board)

Thickness x width x length=2-30mm x 1220/1300mm x 2440/2000mm; The length is arbitrary.

Rod: diameter x length=10-250mm x 1000mm

Color: Grey/White/Blue/Yellow

Origin: Germany Gael/China

grey cpvc sheets 5mm
