Transparent PC sheets (Transparent Polycarbonate Sheet) are transparent sheets made from polycarbonate (PC) resin as the main raw material through extrusion, calendering, or molding processes. PC is a high-performance engineering plastic, and due to its excellent comprehensive properties, PC transparent sheets are also known as "bulletproof glass" or "unbreakable glass".
Ⅰ. Core Characteristics and Advantages
The properties of transparent PC Sheet set it apart from other materials. Their core advantages can be summarized as follows:
1. Ultra-high light transmittance: Without special coatings, light transmittance reaches 88%-92% (close to 90% of glass), with minimal light scattering and extremely high clarity. Some high-end products, optimized through optical-grade processes, achieve transmittance exceeding 93%.
2. Superior impact resistance: Impact resistance is 250-300 times that of ordinary glass and 20-30 times that of acrylic (PMMA) sheets, earning it the title of "unbreakable glass." Even when struck by sharp objects, it only shows localized dents or cracks, rarely shattering entirely, providing exceptional safety (it is already one of the core materials for bulletproof glass).
3. Weather resistance and anti-aging properties: Conventional PC sheets slowly yellow and become brittle under ultraviolet radiation. Therefore, commercially available transparent PC sheets typically have a UV coating co-extruded on the surface, blocking over 99% of ultraviolet rays, significantly extending their outdoor lifespan.
4. Lightweight and High-Strength: Its density is only half that of glass (approximately 1.2 g/cm³), but its strength far exceeds that of glass. This results in low transportation and installation costs, making it particularly suitable for large-span applications (such as large skylights).
5. Wide Temperature Adaptability: It can be used long-term in environments ranging from -40℃ to 120℃ (short-term temperature resistance up to 135℃). It maintains its toughness at low temperatures (not easily brittle) and does not easily soften or deform at high temperatures.
6. Ease of Processing: It can be processed through cutting, drilling, cold bending (can be bent into arc shapes at room temperature), and thermoforming (can be shaped arbitrarily after heating), adapting to complex design requirements. It can also be laminated with other materials (such as to make laminated safety glass).
Key Advantages (Compared to Glass, Acrylic, etc.)
Safety: High impact resistance; produces no sharp fragments upon breakage, suitable for scenarios with high safety requirements (such as schools and public facilities).
Lightweight: Weighs only 50% of glass, reducing structural load requirements and saving installation costs.
Wide Temperature Range: Does not deform at high temperatures (stable from -40℃ to 120℃), superior to acrylic (temperature resistance approximately 80℃).
Design Flexibility: Can be cold-bent (no preheating required for thickness ≤ 6mm) and thermoformed, adaptable to curved surface design requirements.
Ⅱ. How wide are the applications?
Transparent PC sheets have penetrated into multiple fields such as construction, transportation, electronics, agriculture, and industry, specifically including:
1. Construction and Decoration
Skylights/Awnings: Transparent roofs for airports, train stations, stadiums, and shopping malls;
Curtain Walls/Partitions: Transparent partitions for high-end office buildings and hotels (balancing privacy and lighting);
Sunrooms/Greenhouses: Home or agricultural greenhouses (hail resistance, good insulation);
Sound Barriers: Transparent soundproof walls along highways and railways (reducing noise without obstructing views).
2. Transportation
Automotive: Windshields (auxiliary materials), side windows/sunroofs (lightweight), headlight covers (temperature and impact resistant);
Rail Transit: High-speed rail/subway windows (impact resistance + sound insulation), cockpit protective covers;
Aviation: Aircraft cabin windows (weight reduction), helicopter observation windows;
Shipbuilding: Observation windows for yachts/fishing boats (seawater corrosion resistant).
3. Electronics and Industry
Electronic Equipment: Screen protectors for mobile phones/tablets (scratch-resistant), LED display covers;
Industrial Protection: Machine tool viewing windows, robot protective panels (splash protection);
Optical Components: Eyeglass lenses (ultra-thin PC lenses), camera lens caps.
4. Advertising and Daily Necessities
Advertising Signage: Light boxes, display stands, signs (high light transmittance + wind resistance);
Daily Necessities: Baby bottles (food-grade PC, now mostly replaced by PPSU), sports goggles, riot shields.
5. Agriculture and Energy
Greenhouses: Replacement for glass, hail resistance, heat preservation, increased crop yield;
Photovoltaic Modules: As encapsulation covers for solar cells (weather-resistant + high light transmittance).
Ⅲ. Why is it so popular in the market?
The widespread adoption of transparent PC sheets stems from their disruptive replacement of traditional materials, addressing core pain points in multiple application scenarios:
Replacing Glass: Compared to glass, PC sheets are safer (impact resistant), lighter (reduced structural load), easier to process (for complex shapes), and pose no risk of breakage. They are widely used in high-safety scenarios such as skylights and curtain walls.
Replacing Acrylic (PMMA): While acrylic has high light transmittance, it is brittle (easily broken) and has poor weather resistance (prone to yellowing). PC sheets, on the other hand, balance high light transmittance with high toughness, making them more suitable for outdoor or impact-prone environments (such as advertising light boxes).
Meeting Emerging Demands: With the development of green building (energy-saving lighting), new energy (photovoltaic module encapsulation), and smart devices (transparent displays), the customization (such as anti-static and dimming) and multi-functionality (sound insulation + heat insulation) advantages of PC sheets are becoming increasingly prominent.
Transparent PC sheets, with their core advantages of "high light transmittance, high safety, and easy processing," have become an irreplaceable transparent material in modern industry, and their application boundaries continue to expand. With technological advancements (such as nano-coatings to improve scratch resistance and the development of biodegradable PC), their future market potential will be further unleashed.

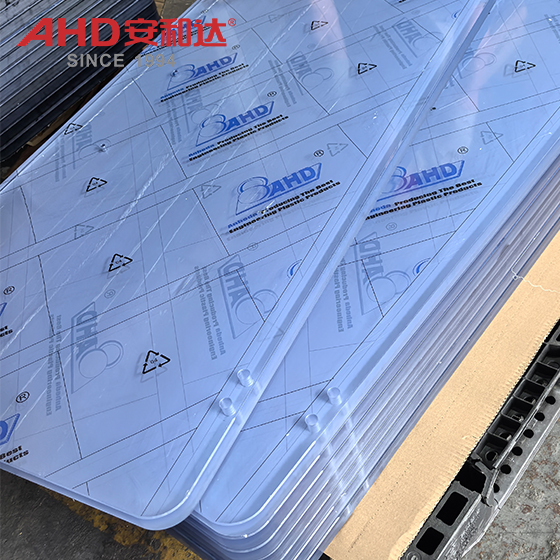

Ⅳ. Secondary Processing Methods
PC transparent sheets can be processed through various techniques to meet customized needs:
1. Cutting: Use a circular saw, laser cutter, or CNC engraving machine. Ensure proper cooling (avoid overheating due to friction, which can lead to stress cracking).
2. Drilling: Use a high-speed drill bit (speed ≥ 3000 rpm). When the hole diameter is larger than the sheet thickness, pre-drill guide holes to prevent edge chipping.
3. Bending:
Cold Bending: For thicknesses ≤ 6mm, cold bending can be used directly (minimum bending radius ≈ 175 times the sheet thickness).
Hot Bending: For thicknesses > 6mm or complex curved surfaces, heat to 160-180℃ using an oven or hot air gun to soften and set the shape.
4. Thermoforming: Create three-dimensional shapes such as arcs and domes using vacuum forming or blow molding processes (commonly used in skylights).
5. Bonding: Use PC-specific adhesives (such as chloroform solvent adhesives or polyurethane adhesives). Avoid adhesive seeping into the sheet, which can cause stress cracking.
6. Surface Treatment:
Hardened Coating (increases surface hardness and scratch resistance);
UV Coating (enhances weather resistance);
Anti-reflective/anti-reflective Coating (for optical applications);
Printing (screen printing or digital printing).
7. Composite Processing: Composite with other materials (such as aluminum profiles, laminated glass) to enhance functionality (such as sound insulation and heat insulation).
Precautions:
Avoid excessive stress during processing (such as excessive bending or cutting before complete cooling), as this may lead to cracking;
For outdoor use, it is recommended to choose PC sheets with a UV coating (co-extruded UV layers are even better);
When cleaning, use a soft cloth dampened with neutral detergent, and avoid scratching with hard objects such as steel wool.
