Product details

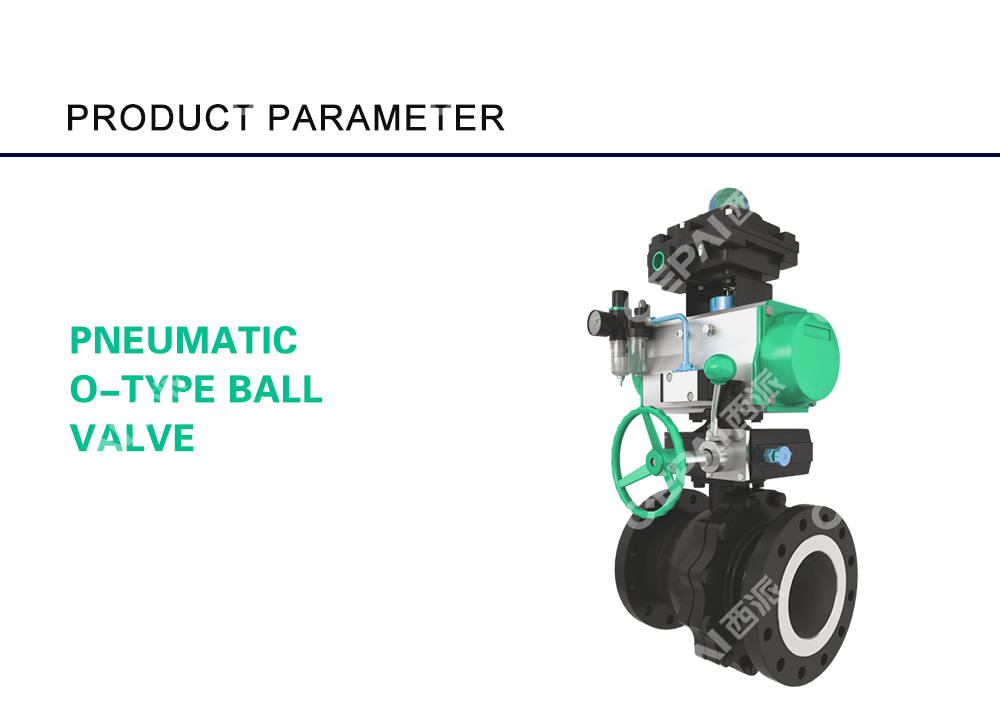

Pneumatic O-type ball valve is a valve that uses a pneumatic actuator to control the rotation of a ball.

It has the following product description characteristics:

1. Simple structure: The pneumatic O-type ball valve is composed of a ball, a valve seat, a valve stem and a pneumatic actuator. It has a compact structure,

small size and light weight.

2. Fast switching: Due to the role of the pneumatic actuator, the pneumatic O-type ball valve has a fast switching speed and can quickly achieve switching

operations.

3. Good sealing: O-ring is used between the ball and the valve seat, which can effectively prevent medium leakage and has good sealing performance.

4. Strong corrosion resistance: Pneumatic O-type ball valves are usually made of corrosion-resistant materials and can adapt to the use environment of

various corrosive media.

In short, the pneumatic O-type ball valve has the product description characteristics of simple structure, fast opening and closing, good sealing, strong corrosion resistance, long service life, convenient operation and wide application range, and is a commonly used valve product.Our company’s main products include

Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

Valve Body

Ball core form:	full diameter O-shaped ball
Nominal diameter:	DN15-450mm
Nominal pressure:	PN16, 40, 64; ANSI 150, 300, 600
Connection type:	flange type
Body material:	WCB, CF8, CF8M, etc
Packing:	polytetrafluoroethylene PTFE, flexible graphite

Valve inner assembly

Spool form:	metal seal, soft seal
Valve ball material:	304, 316, 304L, 316L, etc
Valve seat material:	PTFE, RPTFE, PEEK, PPL, 304, 316, etc

Executive mechanism

Model:	Piston actuator
Gas supply pressure:	400 ~ 700kPa
Air source interface:	G1/8 ", G1/4 ", G3/8 ", G1/2"
Ambient temperature:	-30 ~ +70℃
Action form:	single action, double action

Property

Leakage:	Metal seal: according to ANSI B16.104 Class IV
Non-metal seal:	compliant with ANSI B16.104 Class VI
