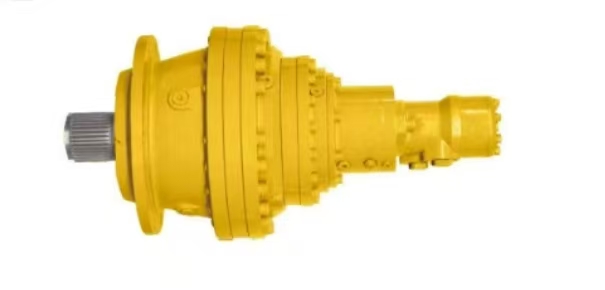

HZ1002 Planetary slewing drives

HZ1002 Planetary slewing drives

3 week ago

2 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

H3.3-15000-T3 Series

Maximum Torque (Tmax):19,500 N·m

Transmission Ratio (i):98.96

Hydraulic Motor Model:BMR160

Input Speed:≤1,000 r/min

Static Braking Torque (TBr max):230 N·m

Brake Operating Pressure:1.8~3.6 MPa

1. The input rotation direction is the same as the output rotation direction.In addition to the transmission ratios listed in the table, alternative ratios can be selected for mass-produced products.

2. Permissible output speed values (not specified in the catalog) may vary depending on actual operating conditions.For details, please consult our technical staff.

Product Overview

The DYH series planetary reduction slewing device is independently developed by our company and consists of a hydraulic motor, a hydraulic normally-closed multi-disc brake, a planetary reducer, and other components. It can be equipped with different hydraulic manifolds (flow distributors) tailored to various operating requirements, integrating hydraulic valves such as balance valves, overload valves, and high-pressure shuttle valves.

Key Features

• Compact Design:Small size, lightweight, and aesthetically pleasing appearance.

• Performance Advantages:High safety, excellent low-speed stability, low noise, and reliable operation.

Applications

Primarily used in equipment such as truck-mounted cranes, mobile cranes, concrete pump trucks, wet spraying machines, and roadheaders. The product is widely adopted by key domestic enterprises like XCMG Group and has been exported to Russia, Australia, India, and other countries.

Customization & Upgrades

• For applications requiringoverpower usage, please contact our company. Special treatment of the material and surface of the planetary reducer's moving parts can significantly enhance performance and transmission power, though manufacturing costs and pricing will increase accordingly.

• By integrating different output gear models with the transmission device, the system can adapt to various operating conditions. For customized slewing devices, please contact us directly.
