HZ2065 Planetary slewing drives

HZ2065 Planetary slewing drives

3 week ago

3 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

High Quality Slewing Hydraulic Planetary Gearbox High Quality Swing Drive Gearbox Gear Reducer

Description:

GFB planetay gearbox application: For wheeled or crawler excavator, rotary drill rigs, crawler cranes and vehicle cranes, marine cranes and other mobile equipment.

GFB series travel drive reducer is an ideal transmission. The product under the harsh environment have withstood the test, according to its performance. Slewing reducer in all kinds of excavator, crane, ship loading and unloading equipment, engineering machinery and equipment, and anyone who has the rotation has been widely applied in the system. Due to the special compact form of the device structure. So it is especially suitable for the installation of equipment to save space. With the use of the hardening treatment of gear and the nitriding processing inner gear ring, high quality production process at the same time, thus ensures the product very good bearing capacity, reliable operation and low noise. Gear system is designed according to the L + S calculation procedures, safe and reliable.

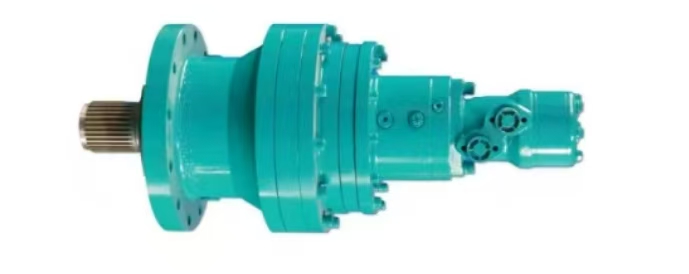

HZ2065 Planetary Slewing Drives Reducer

TheHZ2065 Planetary Slewing Drives Reduceris a specialized mechanical component designed for applications requiring precise rotational control, high torque transmission, and compact design. Below is a detailed overview of its key features, applications, and technical considerations:

Key Features

• Planetary Gear Design:

• Uses a planetary gear mechanism for high torque output, compact structure, and smooth operation.

• Provides excellent load distribution, reducing wear and extending service life.

• High Torque Capacity:

• Suitable for heavy-duty applications requiring substantial rotational force.

• Compact & Lightweight:

• Space-saving design makes it ideal for applications with limited installation space.

• Low Backlash & High Precision:

• Minimizes positional errors, ensuring accurate slewing control.

• Durable Construction:

• Robust materials and sealing prevent contamination, enhancing reliability in harsh environments.

• Customizable Output Options:

• Available with various output gear types (e.g., spur gears, pinion gears) to adapt to different application requirements.

Technical Specifications (Example)

(Note: Specific parameters may vary by manufacturer. Below is a generalized reference.)

【表格】

Parameter Details

Model HZ2065

Gear Ratio Customizable (e.g., 5:1, 10:1, 20:1)

Rated Output Torque Up to 20,000 Nm (example value)

Max. Input Speed 1,800–3,000 RPM (application-dependent)

Output Shaft Type Splined, keyed, or flanged options

Mounting Style Horizontal or vertical installation

Protection Class IP65 or higher (dust/water-resistant)

Operating Temperature -20°C to +60°C (standard)

Applications

TheHZ2065is widely used in industries requiring precise and reliable rotational motion, including:

• Construction Machinery:

• Tower cranes, slewing cranes, excavators, and concrete pumps.

• Material Handling:

• Rotary tables, conveyor systems, and automated storage/retrieval systems (AS/RS).

• Renewable Energy:

• Solar tracking systems and wind turbine yaw drives.

• Aerospace & Defense:

• Radar antennas, satellite communication systems, and missile launchers.

• Marine Equipment:

• Ship cranes, winches, and offshore drilling platforms.

Advantages Over Traditional Slewing Drives

• Higher Efficiency:

• Planetary gears reduce energy loss compared to worm gear drives.

• Better Load Handling:

• Even torque distribution prevents premature wear.

• Lower Maintenance:

• Sealed design and high-quality materials minimize downtime.

• Compact Integration:

• Smaller footprint allows for easier installation in tight spaces.
