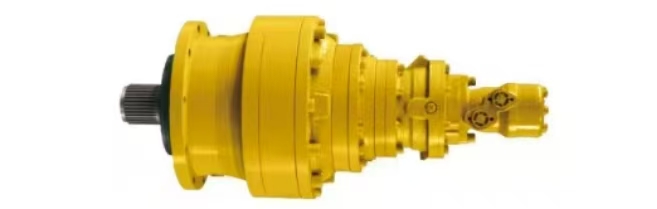

HZ309 Planetary slewing drives

HZ309 Planetary slewing drives

3 week ago

3 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

1. Suitable for 0.8-50 tons of small excavators, agricultural tractors, loaders, etc.

2. Heavy duty planetary reductions gearbox with massive diameter output bearing, specially researched gearbox design and heat-treating skills to make auger with massive torque.

3. With High Precision, High Torque, High Pressure for Earth Moving/Earth Drilling works

4. Highly support for Customization(OEM & ODM Services are acceptable here).

5. Free components for replacement within warranty period.

HZ309 Planetary Slewing Drives Reducer

Technical Overview & Key Features

TheHZ309 Planetary Slewing Drives Reduceris a heavy-duty rotational drive system designed for applications requiring high torque, compact design, and precise motion control. Below is a structured breakdown of its specifications, advantages, applications, and maintenance considerations.

Key Features & Technical Specifications

(Note: Parameters may vary by manufacturer. Below is a generalized reference.)

【表格】

Parameter Details

Model HZ309

Gear Ratio Range 5:1 to 200:1 (customizable)

Rated Output Torque Up to 30,000 Nm (example value)

Max. Input Speed 1,500–3,000 RPM (application-dependent)

Output Shaft Type Splined, keyed, or flanged (optional)

Mounting Style Horizontal/vertical installation

Protection Class IP65 or higher (dust/water-resistant)

Operating Temperature -30°C to +70°C (extended range)

Backlash ≤10 arcmin (high-precision option)

Efficiency 90%–95% (planetary gear advantage)

Key Advantages:

• High Torque Density: Compact design delivers exceptional torque output.

• Smooth Operation: Low noise and vibration due to planetary gear mechanism.

• Durable Construction: Sealed housing protects against contaminants.

• Customizable Output: Adaptable to various shaft configurations.

Applications

TheHZ309is ideal for applications requiring precise rotational control under heavy loads, including:

• Construction & Mining:

• Tower cranes, excavators, and drill rigs.

• Material Handling:

• Rotary tables, conveyor systems, and automated warehouses.

• Renewable Energy:

• Solar tracking systems and wind turbine yaw drives.

• Marine & Offshore:

• Ship cranes, winches, and drilling platforms.

• Aerospace & Defense:

• Radar antennas, missile launchers, and satellite systems.

Comparison with Traditional Slewing Drives

【表格】

Feature HZ309 Planetary Drive Worm Gear Drive

Efficiency 90%–95% 50%–70%

Torque Capacity Higher (compact design) Lower (bulky)

Backlash Low (≤10 arcmin) High (≥30 arcmin)

Maintenance Less frequent More frequent

Cost Higher initial cost Lower initial cost

Why Choose HZ309?

• Better long-term ROI due to lower maintenance and higher efficiency.

• Critical for applications requiring precise positioning (e.g., solar tracking).

Selection Criteria

When choosing theHZ309, consider:

• Load Requirements: Ensure torque and speed ratings match the application.

• Environmental Conditions:

• Check for compatibility with temperature, humidity, and exposure to chemicals.

• Mounting Space:

• Verify horizontal/vertical installation compatibility.

• Customization Needs:

• Some manufacturers offer output gear modifications, sealing upgrades, or corrosion-resistant coatings.
