1. Customized Solutions
·Our product structure, enhanced by Patent Technology, caters expertly to the demands of mining and specialized machinery operations.
·Experience larger carrying capacities with minimal power gradients, customizable ratios to suit your specific needs.
·Benefit from long-term operational insights based on rigorous field research, optimized by assistant machinery for superior performance.
·Enjoy interchangeable external dimensions specifically designed for unique operational conditions, ensuring seamless integration.
·Experience a short supply cycle with rapid response times to meet evolving customer demands efficiently.
2. High Reliability
·Ultra-long Service Life: Count on unmatched crashworthiness and an extended warranty period for peace of mind.
·Employing a leading process, every tooth surface is meticulously hardened for enhanced durability.
·Our superior sealing quality ensures zero leakage throughout the warranty, maintaining operational integrity.
·With interchangeable external dimensions, our products are tailored for specific operational challenges.
·Each unit undergoes a rigorous 120% torque overload test to guarantee reliability under pressure.
·100% ex-factory no-load testing assures each product leaves in perfect condition.
·Ingeniously designed with special focus on structural integrity and bearing efficiency.
·Our products stay in grade with a robust assembly process and stringent process controls.
3. Easy Maintenance
·Experience the simplicity of a reliable structure, minimizing complexity.
·Our designs are straightforward to install and maintain, reducing downtime.
·Effortlessly change oil and maintain your system with ease.
·Quickly replace components to keep operations running smoothly.
·A simple maintenance structure eases the upkeep process.
·Our modular design allows maintenance without disassembling the gearbox, enhancing efficiency.
·Easily access and replace first and second stage planetary gear parts by opening the end cover.
·Designed without vulnerable parts

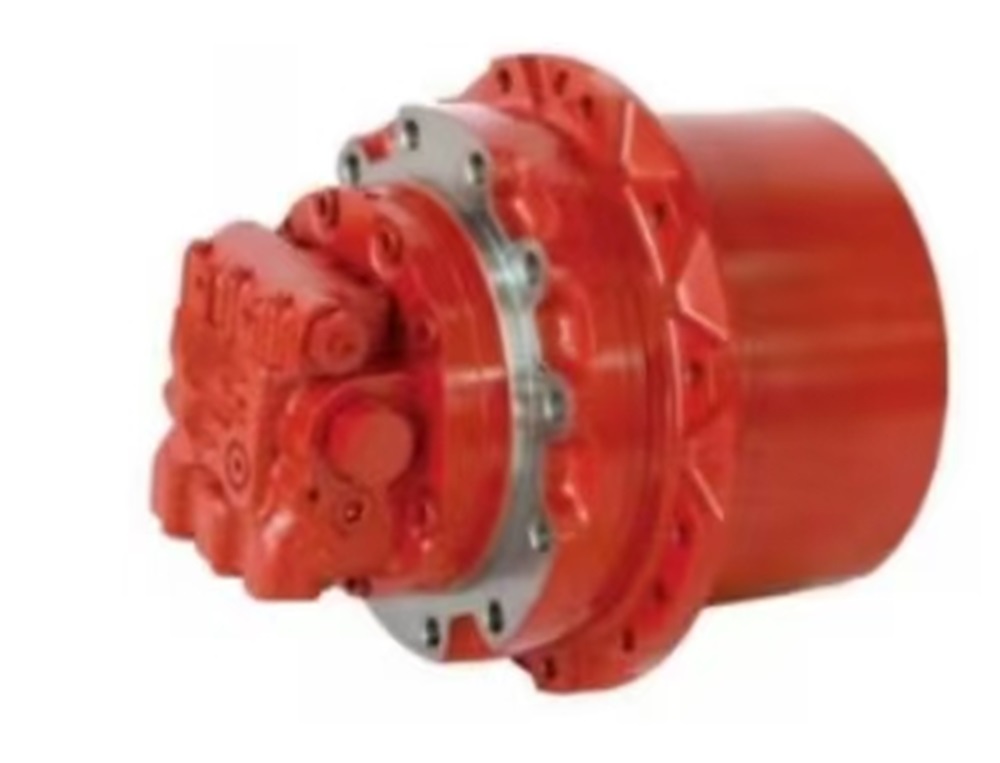

Travel Drives GFT17 T2 Reducer: Overview & Key Features
TheGFT17 T2 Reduceris a high-performance travel drive designed for heavy-duty applications, particularly in construction machinery, mobile cranes, and off-road vehicles. Below is a structured breakdown of its specifications, advantages, and applications:
------
1. Technical Specifications
• Type: Planetary gear reducer with integrated hydraulic motor.
• Torque Output: Up to17,000 Nm(peak torque).
• Gear Ratios: Customizable (typically 3–100:1 for travel drives).
• Motor Integration: Built-in axial piston motor (high efficiency, low noise).
• Mounting: Flange or shaft-mounted options for flexibility.
• Protection: IP67 (dustproof/waterproof), suitable for harsh environments.
• Weight: ~120–150 kg (varies by configuration).
------
2. Key Features
• Compact & High-Power Density:
The planetary design reduces size while maximizing torque output, making it ideal for space-constrained applications.
• Robust Construction:
Hardened gears and case-carburized steel ensure long life under heavy loads.
• Thermal Management:
Integrated cooling fins and optimized oil circulation prevent overheating during prolonged use.
• Low Maintenance:
Sealed design minimizes leaks; oil changes recommended every 5,000 hours.
• Dynamic Braking:
Optional hydraulic brake integration for safe stopping on inclines.
------
3. Applications
• Construction Machinery:
Crawler cranes, excavators, pavers, and trenchers.
• Material Handling:
Aerial work platforms, forklifts, and telehandlers.
• Mining & Agriculture:
Drilling rigs, bulldozers, and harvesters.
• Specialized Vehicles:
Military tracked vehicles and fire-fighting equipment.
------
4. Advantages Over Competitors
【表格】
Feature GFT17 T2 Typical Competitor
Efficiency 95%+ (planetary gears) 90–92% (worm/spur gears)
Noise Level ≤75 dB (quiet operation) ≥85 dB (louder)
Weight-to-Torque Ratio 1:140 (best-in-class) 1:100–120 (less efficient)
Warranty 3-year standard (5-year optional) 1–2 years
