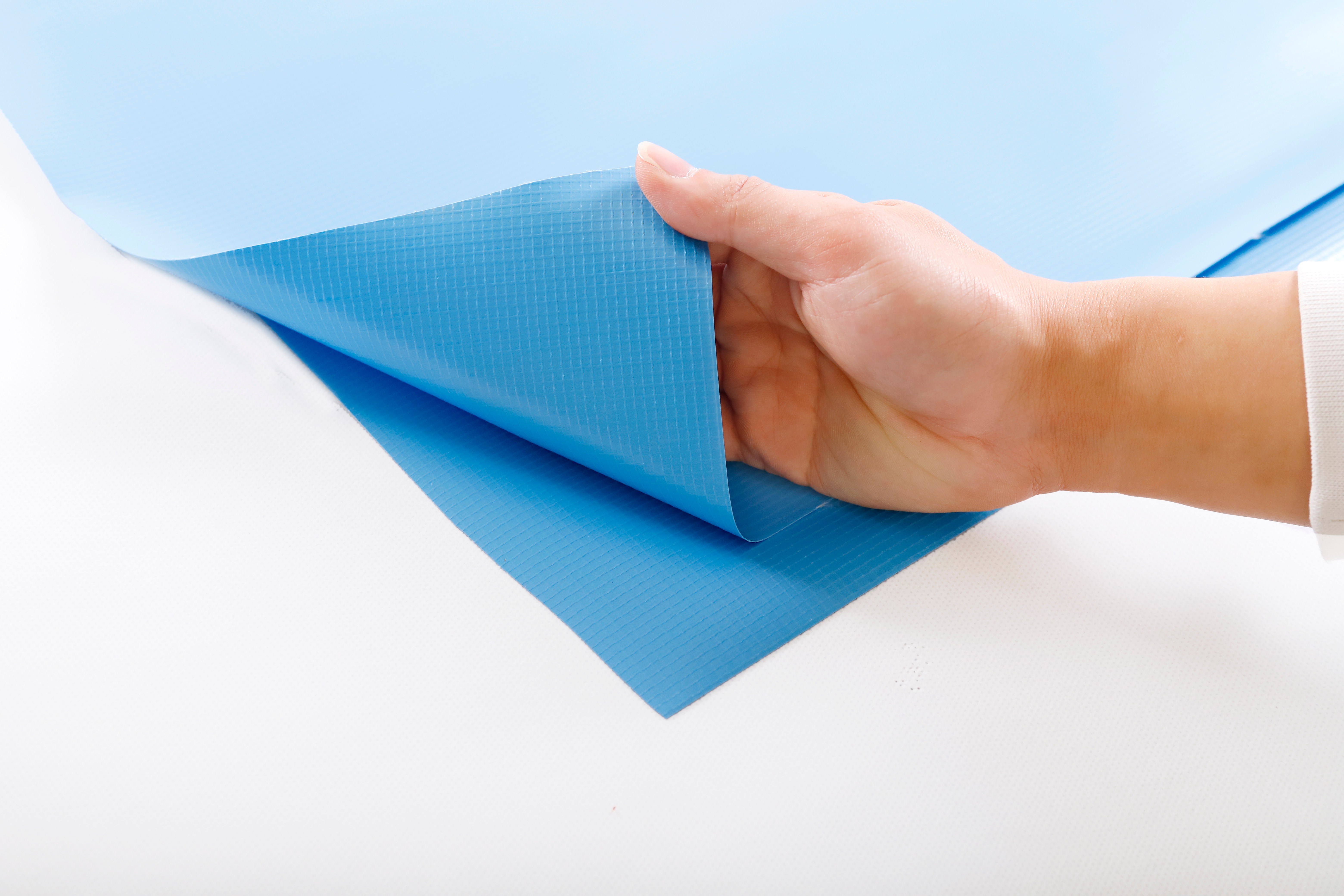

Waterproof PVC Tarpaulin Canvas for Protection is a composite waterproof material with high-density polyester fiber as the base material and PVC resin coated on both sides. It achieves seamless splicing through high-temperature heat-sealing process, has 100% waterproof performance, tear strength ≥300N/5cm (ASTM D2261 standard) and wide temperature range applicability from -30℃ to 70℃, and is widely used in industrial protection, outdoor construction, logistics and transportation and other fields.
Product Features of Waterproof PVC Tarpaulin Canvas
1. Material and Structure
Base Material Characteristics: 1000D×1000D polyester fiber woven fabric, warp density 23×23 strands/10cm, weft density 23×23 strands/10cm, gram weight range 450gsm to 2300gsm, tensile strength warp up to 65MPa (thickness 0.5mm specification).
Coating process: Double-sided PVC coating thickness 0.2mm to 0.8mm, coating uniformity ±0.02mm, surface hardness up to 85 Shore A, abrasion resistance ≥100,000 times (Taber 5135 standard).
Waterproof performance: Passed 10000mm water column pressure test (JIS L1092 standard), hydrostatic pressure holding time ≥24 hours, heat sealing strength at the joint ≥15N/cm.
2. Physical properties
Weather resistance: After adding anti-UV agent, the outdoor sun resistance level reaches level 8 (ASTM G154 standard), 3-year color fastness retention rate ≥85%, and anti-aging performance passes 1000 hours QUV accelerated test.
Flame retardancy: Passed B1 flame retardant test (GB 8624-2012), self-extinguishing time from fire ≤3 seconds, smoke density level ≤75, in line with NFPA-701 standard.
Chemical resistance: Excellent tolerance to acid (pH 2 to 5), alkali (pH 9 to 12), and salt solution, with a mass loss of ≤0.5% after 24 hours of immersion.
3. Processing and customization
Size customization: Width 1.0m to 5.1m, unlimited length, supports special-shaped cutting and punching, and edge hemming strength ≥10N/cm.
Functional expansion: Optional anti-mildew layer (antibacterial rate ≥99%), self-cleaning nano coating (contact angle ＞150°), and oil-proof layer (contact angle ＞120°).
Color customization: Supports RAL and Pantone color card customization, and the blue tone ΔE value ≤3 (the color difference range is not recognizable by the human eye).
Waterproof PVC Tarpaulin Canvas application scenarios:
1. Industrial protection
Equipment coverage: As a protective PVC Coated Tarpaulin for equipment in open-air cargo yards and mines, the dustproof and scratch-resistant properties can extend the service life of the equipment.
Pipeline wrapping: Used for temporary wrapping of petroleum and chemical pipelines, the acid and alkali resistance can withstand chemical solutions with a pH of 2 to 12.
2. Outdoor construction
Temporary sheds: As temporary shed materials for construction sites and power construction sites, the wind resistance level reaches 10 (EN 13561 standard).
Roof waterproofing: Used for waterproof covering of building roofs and warehouse ceilings, with a light transmittance of ≤5%, which can completely block ultraviolet rays.
3. Logistics and transportation
Truck tarpaulin: As a freight PVC Coated Tarpaulin for trucks and ships, the tear strength is ≥300N/5cm in the warp direction, which can resist transportation impact.
Container covering: Used for the top covering of railway freight containers, the waterproof performance can keep the goods dry.
4. Outdoor camping
Tent floor cloth: As the bottom lining PVC Tarpaulin film of camping tents, the oil-proof performance can reduce 80% of oil penetration and increase cleaning efficiency by 50%.
Awning construction: Used for the construction of outdoor awnings and sunshades, the light-transmitting but non-transparent performance can protect privacy while introducing natural light.
5. Agricultural Application
Crop Covering: As a temporary granary and outdoor cover for various crops, the mildew-proof performance can reduce 90% of mold growth.
Farm Roller Blinds: Roller blinds used in pig farms, cattle farms, and chicken farms, with high strength and strong tension, can withstand a local pressure of 50N/cm².
Waterproof PVC Tarpaulin Canvas Cleaning and Maintenance:
1. Daily Cleaning
Dust Cleaning: Use a soft brush or vacuum cleaner (suction power ≤15kPa) to remove surface dust, and avoid high-pressure water guns that may cause edge degumming.
Stain Treatment:
Oil stains: Local oil stains can be wiped with cotton cloth soaked in isopropyl alcohol (concentration 70%). Large areas of oil stains need to be diluted with a water-based degreaser at a ratio of 1:5, and then cleaned at low speed with a floor scrubber and a red grinding disc.
Stubborn glue stains: Use a professional degreasing agent (containing orange oil extract) to soak for 10 minutes, and then remove with a plastic scraper.
2. Regular maintenance
Waterproof performance test: Use a spray device (pressure 0.2MPa) to test the waterproof performance of the joints every quarter, and the leakage points need to be re-coated with PVC special glue.
Color fastness inspection: Use a colorimeter to test the ΔE value of key areas every year. When ≥5, partial reprinting or replacement is required.
3. Long-term storage
Roll storage: diameter ≥30cm, avoid folding to produce permanent creases, storage environment humidity ≤60%RH, temperature 5℃ to 30℃.
Rot prevention measures: Put rodent repellent in the storage area to prevent rodents from gnawing on the base fabric fibers.
Waterproof PVC Tarpaulin Canvas FAQs
Q1: What is the sun resistance performance of PVC Tarpaulin Canvas Waterproof?
A: Passed the 8-level sun resistance test (ASTM G154 standard), the transmittance retention rate of outdoor use for 3 years is ≥85%, and it is recommended to re-test the color fastness every 2 years.
Q2: Does the material support low-temperature installation?
A: It supports construction in a -30℃ environment, but requires the use of low-temperature special glue (opening time extended to 20 minutes) to avoid adhesive failure due to colloid solidification.
Q3: Can gradient blue printing be achieved?
A: It supports CMYK+ spot color printing, with a gradient transition smoothness of 1440dpi, and a minimum color change of 0.1mm.
Q4: What is the minimum order quantity and delivery cycle for customization?
A: The minimum order quantity is 500 square meters, and the delivery cycle for regular sizes is 7 days. Special-shaped cutting requires an additional 15% processing fee and an extension of 3 days.
Q5: Does the material comply with the EU REACH standard?
A: It has passed the SVHC 224 substance test, the content of phthalates (DEHP) is less than 0.1%, and a RoHS 2.0 certification report can be provided.
