FT37-64-30A High-temperature Negative Pressure Battery Formation Equipment

Innovation Design Features

The Lithium-ion Battery Load Tester is primarily utilized to evaluate parameters (voltage, capacity, etc.) of cylindrical batteries in the process of formation. The battery dimensions that will fit are diameter 32-60mm with a maximum length between 65-220mm and will operate in a high temperature and negative pressure environment. It can classify the batteries based on the data evaluated, complete data analysis and will enable the option to upload and share.

High-temperature Negative Pressure system

This Battery Formation Equipment has an integrated temperature control module with an exactitude of 20-70°C (±3°C) It also has an adjustable negative pressure range of -100kPa to 0kPa and can continously sustain stable production negative pressure of -80 kPa. To uniformally conduct electrolyte infusion and have consistency across the batteries.

Energy Recovery Technology

This valueless bidirectional inverter system has 70% discharge efficiency and 80% charge efficiency, while providing an overall power saving rate above 60% and save at least 30% annual electricity cost.

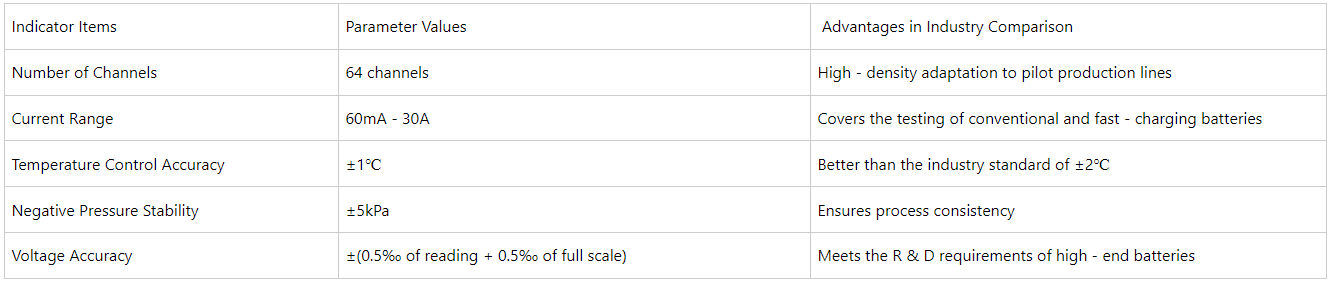

Performance Parameters

Intelligent control system

15 layer safety protection: New, relevant protection fuctions provided for temperature outlier protection, high-temperature protection, etc..

Real time data monitoring: Synchronous REAL TIME data collection, - 4 dimensions for voltage, current, temperature and vacuum degree.

Software Functions:

Support basic / complex processes serviced - 32 working steps / 256 cycles (maximum)

automatically steer the correlation curve of voltage, temperature, capacity.

Seamlessly docked with MES system to provide full-process traceability.

Scenario Applications

R&D of cylindrical batteries: to verify performance of the materials in a high temperature environment.

Mass production quality - better consistency of energy density and cycle life of batteries.

Production of special batteries. For battery system that is sensitive to environmental testing like high nickel ternary batteries.

This Lithium Ion Battery Tester is an efficent solution for a cylindrical battery production - based on high-temperature negative pressure tech and energy recovery system with future development of customized fixtures along 72 hour rapid response service plan which sustains continuity of R & D and production.
