high quality graphite electrode SHP

2 month ago

166 0

Hebei Shitu New Materials Technology Co., LTD

 3 month year

Product details

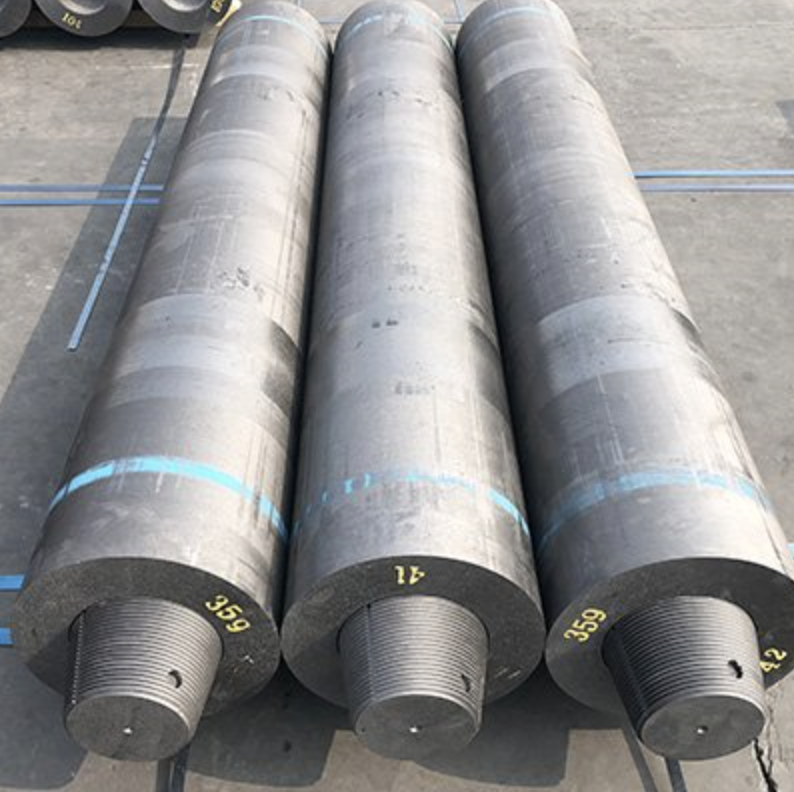

Graphite electrodes are important high-temperature conductive materials for electric furnace steelmaking. Electrical energy is input into the electric furnace through graphite electrodes, and the high temperature generated by the electric arc between the electrode point and the charge is used as the heat source to melt the charge for steelmaking. Some other electric furnaces for smelting materials such as yellow phosphorus, industrial silicon and abrasives also use graphite electrodes as conductive materials. By taking advantage of the excellent and unique physical and chemical properties of graphite electrodes, they also have extensive applications in other industrial sectors.

Needle coke is a high-quality type of coke with distinct fibrous patterns, an extremely low coefficient of thermal expansion, and is prone to graphitization. When the coke blocks break, they can split into slender strip-like particles along the patterns (the aspect ratio is generally above 1.75). Under a polarizing microscope, anisotropic fibrous structures can be observed, hence the name needle coke.

The anisotropy of the physical and mechanical properties of needle coke is very significant. It has good electrical and thermal conductivity in the direction parallel to the long axis of the particles, with a relatively low coefficient of thermal expansion. During the extrusion molding process, the long axes of most particles are arranged in the extrusion direction. Therefore, needle coke is a key material for making high-power or ultra-high-power graphite electrodes. The graphite electrodes made from it have a low resistivity, a small coefficient of thermal expansion, and good thermal shock resistance.

Needle coke is divided into oil-based needle coke produced with petroleum residue oil as raw material and coal-based needle coke produced with refined coal tar pitch as raw material.
