Introduction to Variable Frequency Drive (VFD) EMI Line Filter
Variable Frequency Drive (frequency inverter), also known as inverters, are critical components in industrial automation, HVAC systems, and renewable energy applications. However, their high-frequency switching operations generate electromagnetic interference (EMI), which can disrupt nearby electronic devices, compromise system reliability, and violate regulatory standards. To address this challenge, EMI filter—specifically AC EMI filter—play a vital role in ensuring efficient and interference-free operation of VFDs.

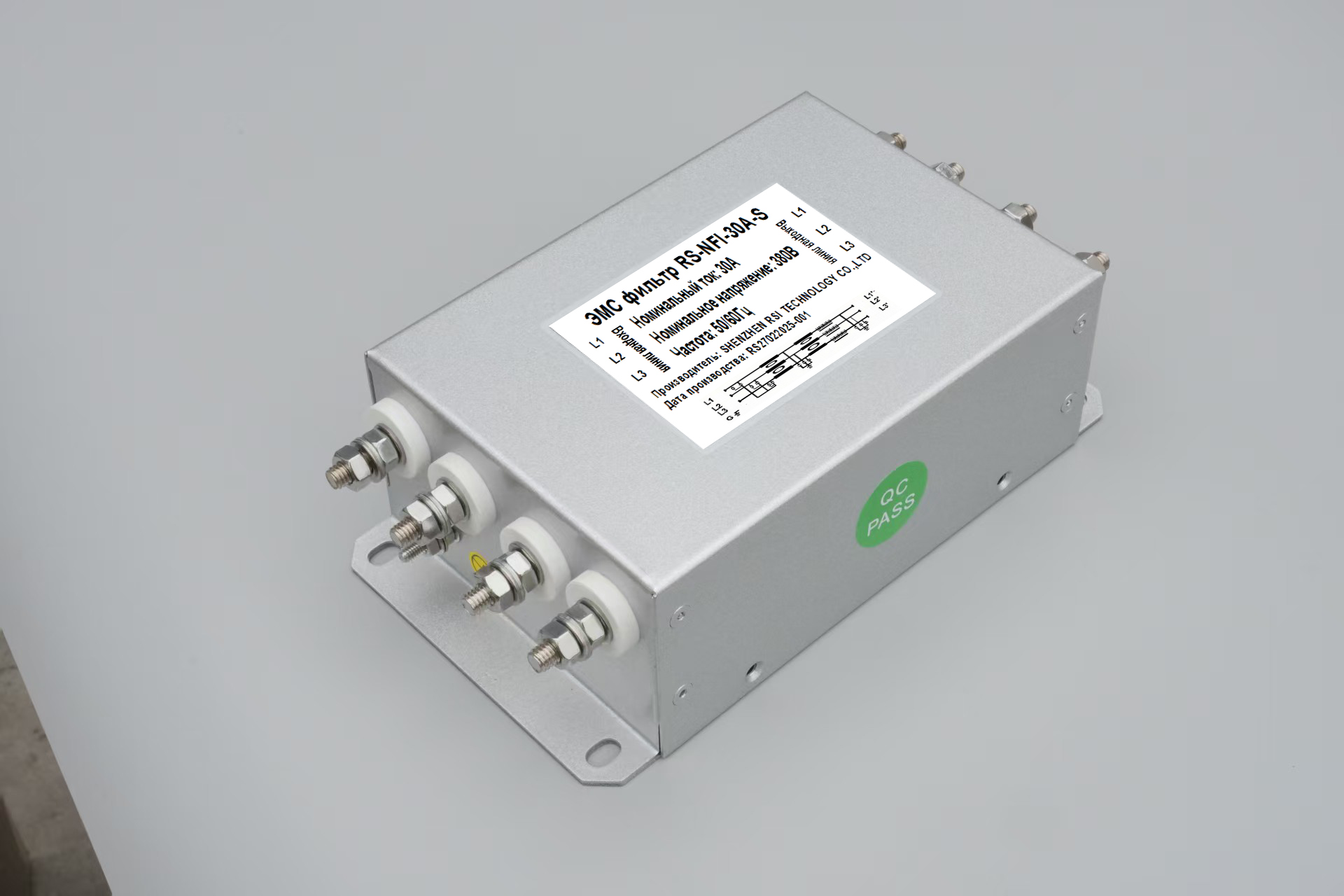

An EMI line filter is a passive electronic device designed to suppress conducted electromagnetic interference (EMI) generated by VFDs. It is installed between the VFD and the power supply or motor to filter out high-frequency noise caused by rapid voltage and current fluctuations during operation. These filters protect both the VFD and connected equipment from malfunctions, overheating, or damage due to EMI.
Noise Suppression:
EMI line filters attenuate high-frequency noise (both differential and common-mode) generated by VFDs. This ensures compliance with international EMI standards (e.g., IEC 61800-3, EN 55011) and prevents interference with sensitive devices like PLCs, sensors, and communication systems.
Power Quality Improvement:
By filtering out harmonics and EMI, these filters stabilize the power supply, reduce voltage fluctuations, and enhance the overall efficiency of the electrical system.
Compliance with Regulations:
Industrial installations often require adherence to strict EMI emission limits. EMI line filters help VFD systems meet these regulatory requirements, avoiding penalties or operational shutdowns.
EMI Line Filters (Passive Filters):
These are the most common type, using inductors, capacitors, and resistors to create a low-impedance path for noise signals. They are cost-effective, reliable, and suitable for a wide range of industrial applications.
Active Filters:
While not the focus here, active filters use power electronics to dynamically cancel EMI. They are often paired with passive EMI line filters for complex systems requiring adaptive noise suppression.
EMI line filters are indispensable for mitigating the adverse effects of electromagnetic interference in VFD systems. By integrating these filters, industries can ensure reliable operation, prolong equipment lifespan, and comply with global EMI standards. Whether in heavy machinery or smart infrastructure, EMI filters remain a cornerstone of modern power electronics design.
If you are interested in the product, contact 2bvideo.com for more information for more information
