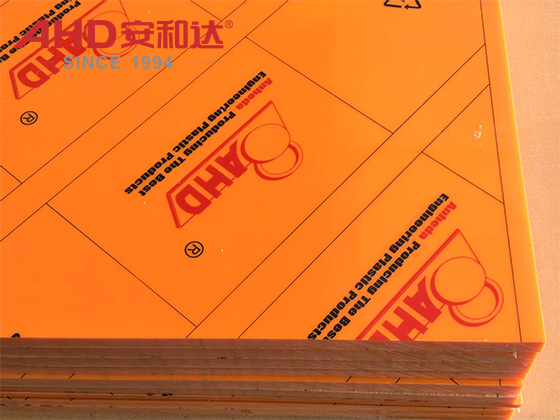

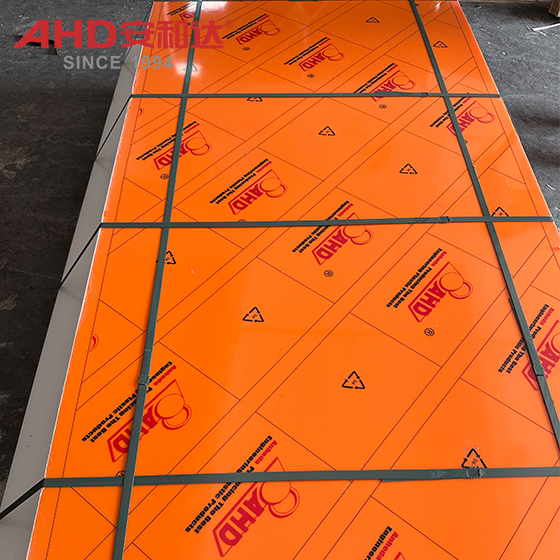

Orange 10mm to 200mm Polyethylene Plastic Sheet

Basic characteristics

Orange HDPE sheet is an engineering plastic sheet made of high-density polyethylene as the base material through a special formula process. The product is made of high-quality polyethylene resin with an anti-aging system and is made by high-temperature extrusion molding. It has excellent physical and mechanical properties and outstanding weather resistance. The thickness tolerance of the standard sheet is controlled within ±0.1mm, and the width specifications can be customized according to customer needs, with a maximum width of 3000mm.

Key performance parameters

Mechanical properties:

Material tensile strength is maintained in the range of 28-32MPa

Flexural elastic modulus reaches more than 1200MPa

Notched impact strength remains at 8kJ/m² at -40℃

Creep deformation rate under long-term load is less than 0.5%/year

Environmental tolerance:

Temperature range -50℃ to +80℃ (short-term tolerance 100℃)

UV resistance passes 3000-hour xenon lamp aging test

Chemical corrosion resistance reaches the highest standard of ASTM D543

Water absorption is less than 0.01% (24-hour immersion test)

Special functional characteristics:

Surface friction coefficient can be adjusted in the range of 0.1-0.3

Volume resistivity 10^15-10^17Ω·cm

Water permeability <0.1g/(m²·24h)

Linear expansion coefficient 1.5×10^-4/℃

hdpe plastic

Differentiated competitive advantages

Service life advantage:

The service life can reach more than 15 years in outdoor natural environment, which is 3-5 times longer than ordinary HDPE. According to actual engineering verification, after 8 years of use in coastal high salt fog areas, the mechanical properties retention rate is still above 85%.

Processing technology advantages:

Supports a variety of secondary processing methods:

CNC precision processing (carbide tools are recommended)

Thermoforming processing (optimal forming temperature 135-155℃)

High frequency welding (weld strength ≥90% of parent material)

Surface treatment (sand blasting, coating, etc.)

Economic advantages:

The comprehensive use cost is 60% lower than stainless steel and 30% lower than fiberglass. It has maintenance-free characteristics and does not require special maintenance throughout the life cycle.

high density polyethylene

Typical application scenarios

In-depth application in the industrial field

Chemical equipment: especially suitable for tank linings and pipe fittings in strong acid and alkali environments

Logistics system: used as key components such as high wear-resistant guide wheels and sorting slides in automated warehousing

Electric power engineering: insulation pads for substations, protective covers for cable trenches, etc.

Innovative application in municipal engineering

Water conservancy projects: as a new type of ecological slope protection material, it has both structural strength and environmental friendliness

Traffic facilities: used to make special components such as anti-glare panels and tunnel interior panels

Environmental protection projects: landfill anti-seepage systems, sewage treatment pool linings, etc.

Breakthrough applications in special industries

Marine engineering: desalination equipment components, ship protection components, etc.

New energy fields: photovoltaic bracket base parts, wind power equipment protective covers, etc.

Military equipment: field equipment bases, protective armor interlayers, etc.
