1) Top quality with competitive price.
2) Widely used in Truck crane,Warship,Oil field drilling and production,Coal mine,Port,Small engineering machinery.
3) Compact structure and reasonable design.
4) Easy to install, operate and maintenance.
5) Low noise and good working condition.
6) One Year Warranty.
For hydraulic winching applications,we are professional . Powerful hydraulic motors allow for extended duty. Hardened steel gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with worldwide quality and safety standards.
Winch Planetary Hydraulic Winches deliver fast, powerful winching pull after pull. With working capacities of 1100 lbs. (500 kgs) to 66,000 lbs. (30000 kgs) designed for the demands of the towing and recovery, lift, utility, oil & gas, and mining & construction applications, Yuansheng has the industrial hydraulic winch you need. Fast line speeds limit time in the danger zone as well as increase efficiency and productivity on the job. Cables can be under-wound to minimize strain on the winch, or overwound reducing risk of damage to the load. Many models can be either foot or side mounted for adaptability and ease of maintenance.

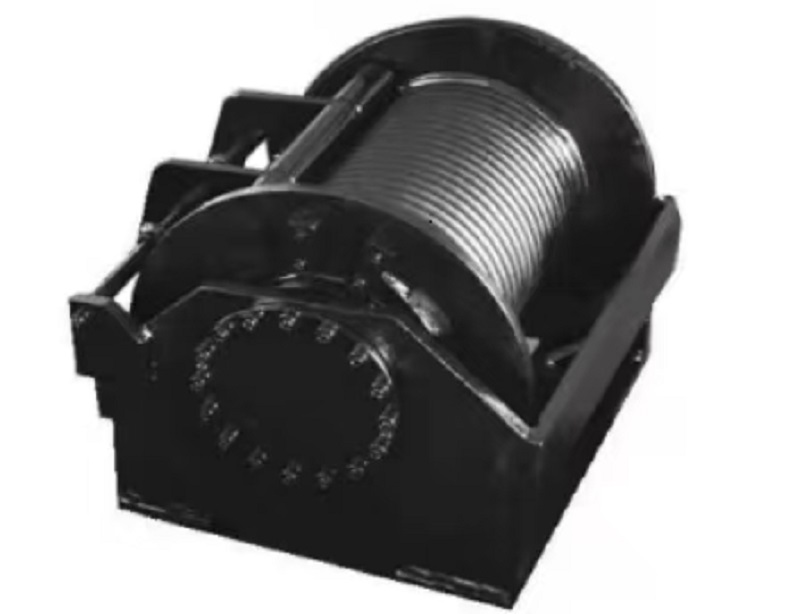

JY-5T Hydraulic Winch Technical Overview & Application Guide
I. Product Overview
TheJY-5T hydraulic winchis aplanetary gear-driven hydraulic winchdesigned for industrial and engineering applications, including towing, lifting, and rescue operations. Its key strengths lie in itshigh load capacity, compact design, reliable performance, and adaptability to extreme environments.
------
II. Core Parameters & Performance
【表格】
Specification Technical Details Explanation
Rated Load Capacity 5 tons (5,000 kg) Suitable for medium-sized engineering equipment, rescue vehicles, mining machinery, etc.
Maximum Pulling Force 6 tons (6,000 kg) Peak instantaneous force for emergency towing or complex work conditions.
Wire Rope Diameter 12 mm (standard) Customizable rope diameters available.
Wire Rope Length 30 meters (standard) Customizable lengths for varying operational radii.
Hydraulic Motor Type Heavy-duty planetary gear hydraulic motor High torque output for prolonged continuous operation.
Hydraulic System Pressure 16–20 MPa (adjustable) Adaptable to different hydraulic power sources with flexible pressure ranges.
Rope Speed 0–30 m/min (adjustable) Speed controlled via hydraulic valves for reeling in/out.
Weight ~200 kg (excluding wire rope) Lightweight design for easy installation and transport.
------
III. Technical Features & Advantages
1. Efficient Planetary Gear Transmission
• Planetary gear reducerwith high efficiency (≥95%) and significant torque amplification for heavy-load applications.
• High-strength alloy steel gearswith surface hardening for durability and longevity.
2. Powerful Hydraulic Drive
• Hydraulic oil-powered, eliminating the need for external power sources. Ideal for mobile equipment (e.g., rescue vehicles, cranes).
• Constant power controlto prevent overload damage.
3. Compact & Flexible Installation
• Modular design supportsfoot-mounted,side-mounted, orembeddedconfigurations for diverse spatial needs.
• Small footprint and lightweight for seamless integration into existing systems.
4. Safe, Reliable, & Easy to Maintain
• Drum brakefor automatic locking to prevent load slippage.
• Mechanical clutchfor manual control and smooth emergency disengagement.
• Sealed design(IP67 rating) for dust and water resistance in harsh environments.
5. Temperature Adaptability
• Hydraulic system operates in-30°C to 60°Cenvironments, with smooth startups in cold conditions.
• Optional tank heater for extreme cold (-40°C and below).
------
IV. Typical Applications
1. Engineering & Construction
• Auxiliary towing and positioning for tower cranes, excavators, and pile drivers.
• Material lifting and equipment movement in mining operations.
2. Rescue & Emergency Scenarios
• Towing equipment for fire trucks and rescue vehicles in vehicle accidents.
• Cargo lifting and transport during natural disasters (e.g., earthquakes, floods).
3. Marine & Offshore Engineering
• Anchor chain handling and small vessel towing.
• Lifting and maintenance of offshore platform equipment.
4. Agriculture & Forestry
• Tractor and harvester towing and equipment installation.
• Heavy-load towing in logging operations.
------
V. Selection & Customization Recommendations
1. Load Capacity Matching
• For loads ≤5 tons, the JY-5T is suitable; for heavier loads, upgrade to the JY-10T or higher models.
2. Environmental Adaptability Customization
• Extreme cold (-40°C and below): Optional low-temperature hydraulic oil and heating systems.
• Marine environments: Stainless steel casings and anti-corrosion coatings.
3. Control Method Selection
• Manual control: Cost-effective for simple operations.
• Wireless remote control: Ideal for hazardous areas or long-distance operations.
Yuansheng Winch Hydraulic Planetary Winches are tested and certified to operate in temperatures from -40° F to 120° F. Our winches offer easy, fast free spooling with only 132 lbs (60kg). resistance at -35ºF and can be operated by air or manually, providing fast line payout and reducing wear on components. Our Winch Hydraulic Planetary Winches are manufactured to meet ISO 9001 and CE standards .
+ Mechanically locked clutch with smooth action.
+ Easy access and servicing; all internal components are available as complete assemblies
